QSI 808nm 1000mW 激光模组二极管 QL80T4HD-Y 高功率IR二极管 TO-5 9mm

QSI 808nm 1000mW Laser Module Diode QL80T4HD-Y High Power IR LD TO-5 9mm

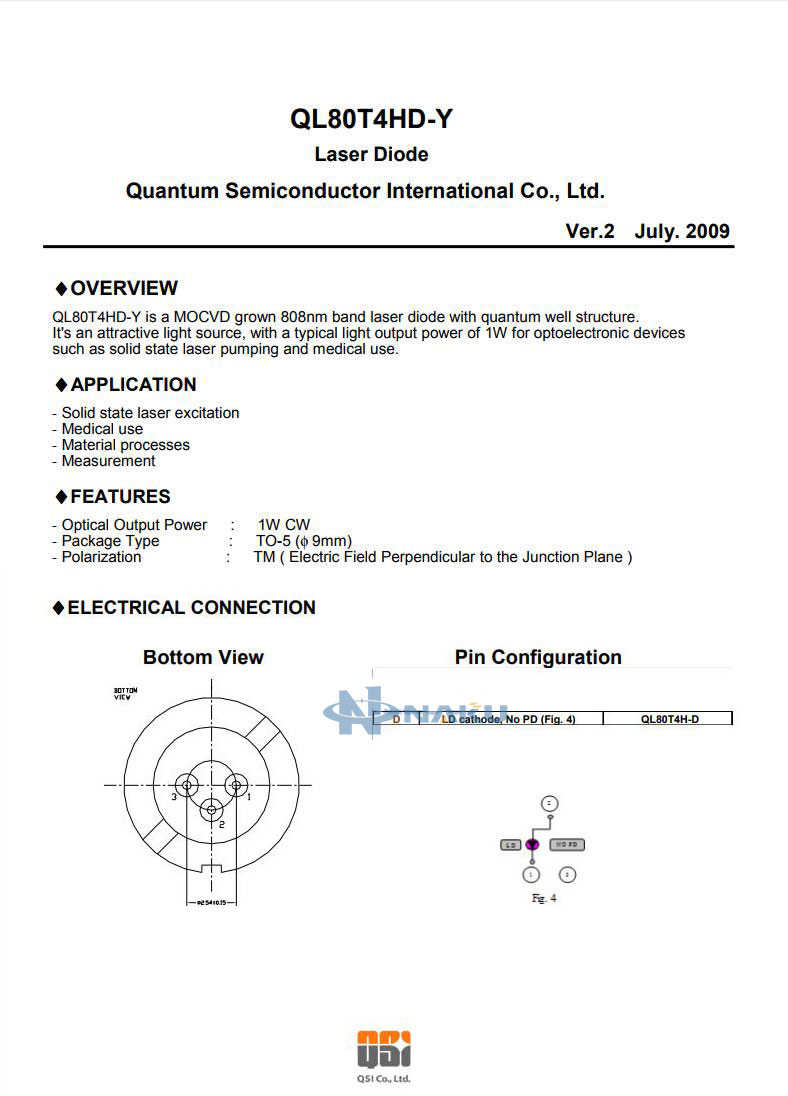

QL80T4HD-Y is a MOCVD grown 808nm band laser diode with quantum well structure. It's an attractive light source, with a typical light output power of 1W for optoelectronic devices such as solid state laser pumping and medical use.

[Features]
1. Wavelength: 808nm(typ.)
2. Optical Power Output: 1W CW

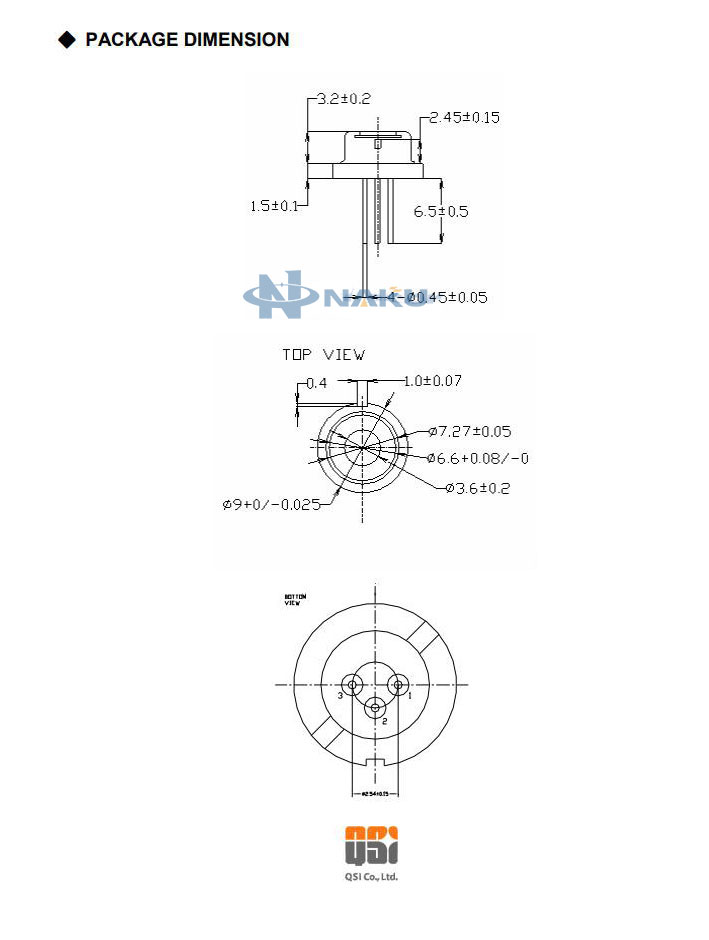

3. Package Type: TO-5 (9mm)
4. Polarization : TM ( Electric Field Perpendicular to the Junction Plane )

[Applications]
1. Solid state laser excitation
2. Medical use
3. Material processes
4. Measurement
