三菱 650nm 100mW 激光二极管 ML101J24 红色半导体激光 TO18

Mitsubishi 650nm 100mW Laser Diode ML101J24 Red Semiconductor Laser TO18

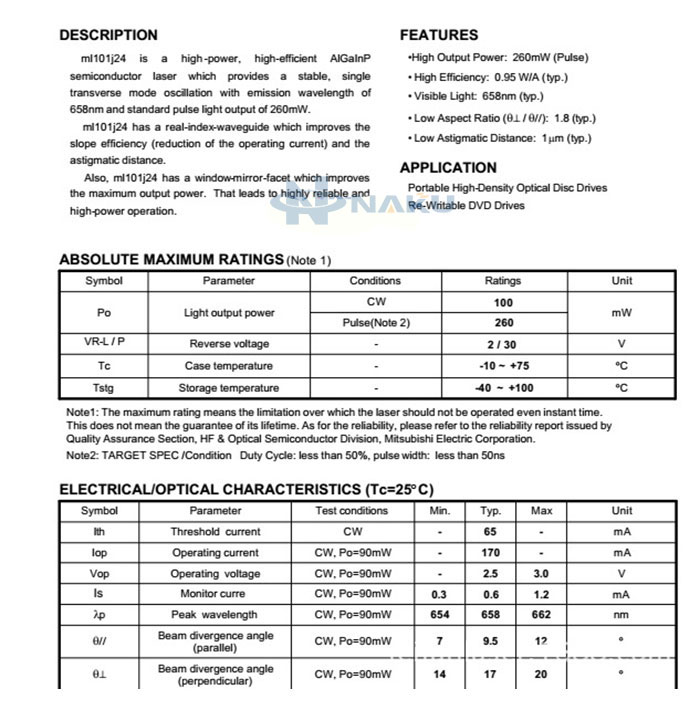

ML101J24 is a high-power, high-efficient AlGaInP semiconductor laser which provides a stable, single transverse mode oscillation with emission wavelength of 658nm and standard pulse light output of 260mW. ML101J24 has a real-index-waveguide which improves the slope efficiency (reduction of the operating current) and the astigmatic distance.Also, ML101J24 has a window-mirror-facet which improves the maximum output power. That leads to highly reliable and high-power operation at 75°C.

[Features]
1. High output power: 260mW (Pulse)
2. High efficiecncy: 0.95W/A
3. Visible light: 658nm
4. Low aspect ratio: 1.8
5. Low astigmatic distance: 1μm

[Applications]
1. Portable high-density optical disc drives
2. Re-writable DVD drives

[Specifications]
Product Brand: Mitsubishi
Product Model: ML101J24
Wavelength: 650nm
Output Power: 100mW
Operating Temperature: -10 ~ 75℃
Storage Temperature: -40 ~ 100℃
