635nm 12W 带可调电源光纤耦合激光系统
635nm 12W Fiber coupled laser system with adjustable power supply
[Specifications]

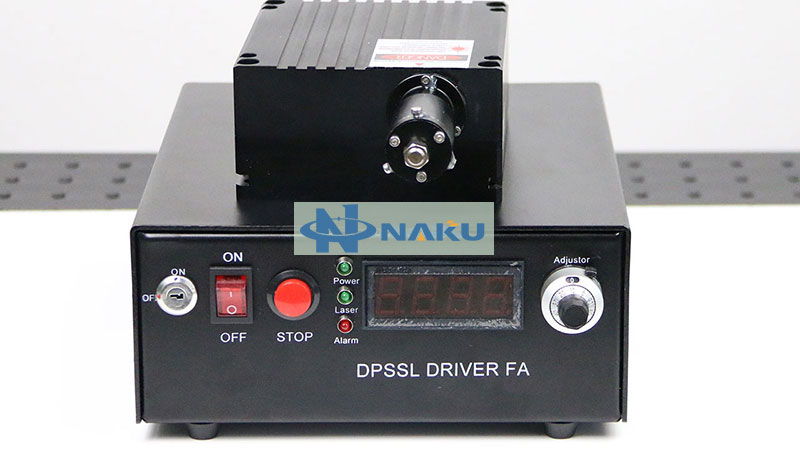

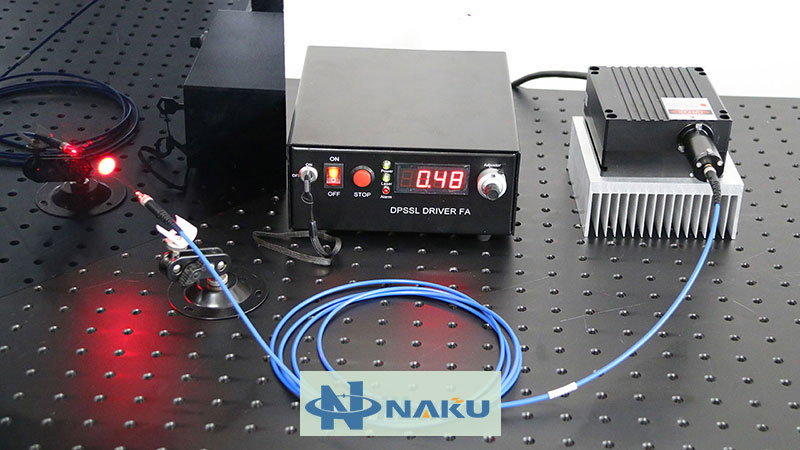

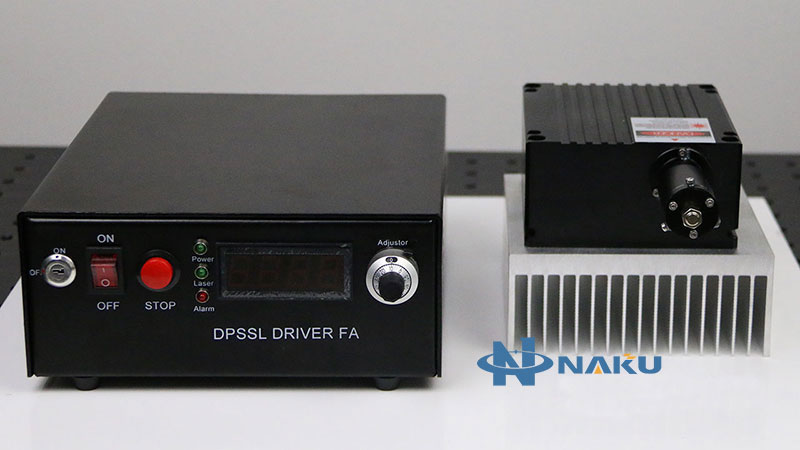

Product Name: 635nm 12W Fiber coupled laser with power supply
Output Wavelength: 635nm
Spatial mode: Multi mode
Output Power: 12W
Operating mode: CW or Modulation
Fiber diameter: 400um/600um/1000um(choose)
Interface type: FC/PC, FC/APC, SMA905 (choose)
The polarization: TM
Power Stability: <3% per 2 hrs
Temperature Stabilizing: TEC
Spatial mode: TEM00
Warm Up Time: <2 minutes
MTTF(mean time to failure): 5,000 hrs
Modulation: 0~30khz
Laser head dimensions: 178(L)x105(W)x53(H) mm3
Power Supply: Lab Adjustable power supply
Warranty: 1 Year
[Packing list]
1 x Red Semiconductor laser
1 x Laser Power supply
1 x Optical Fiber
[Note]
The marked output power is before coupling, coupling efficiency is 80%~90%, for example, the 3W laser's actual output power of fiber coupled laser is >2.4W.
