520nm 10W 光纤耦合激光器 高功率激光 强绿色激光束

价格:$1.00

(最新的价格,请联系我们.)

请选择:









购买数量:


520nm 10W 光纤耦合激光器 高功率激光 强绿色激光束

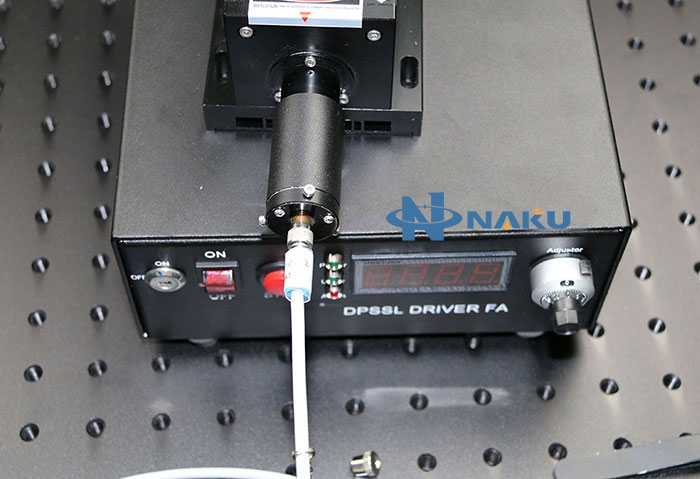

520nm 10W Fiber Coupled Laser High Power Laser Strong Green Laser Beam

[Specifications]
Product Name: 520m Fiber Coupled Laser
Lead Time: 7~15 workingdays! Custom product available!
Output Wavelength: 520nm
Output Power: 10W
Spatial mode: TEM00
Operating mode: CW or Modulation
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minutes
MTTF(mean time to failure): 10,000 hrs
Laser dimensions: 142(L)x73(W)x46(H)mm3
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Modulation:  0~30khz Analog or TTL
Fiber Core Diameter: 200μm /400μm /600μm /800μm /1000μm(Choose)
Fiber Length:1m/2m/3m (Choose)
Interface type: FC/PC, SMA905, FC/APC (Choose)
Warranty: 1 Year

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
