10mW~100mW C波段 ASE宽带光源 2dB增益平坦度 模块类型
10mW~100mW C-band ASE broadband light source 2dB Gain flattening module type
Gain flattened fiber ASE broadband light source is based on ordinary broadband light source and added the gain flattening technologies, nd optimize the structure of the light source, the output spectral flatness of <2dB, output power and high. Suitable for optical fiber sensing applications.
[Specifications]
| Parameter |
Unit |
Typical value |
Remarks |
| Working wavelength |
nm |
1528～1565 |
C-Band |
| Output Power |
mW |
10mW~100mW |
Choose |
| Output isolation |
dBm |
45 |
|

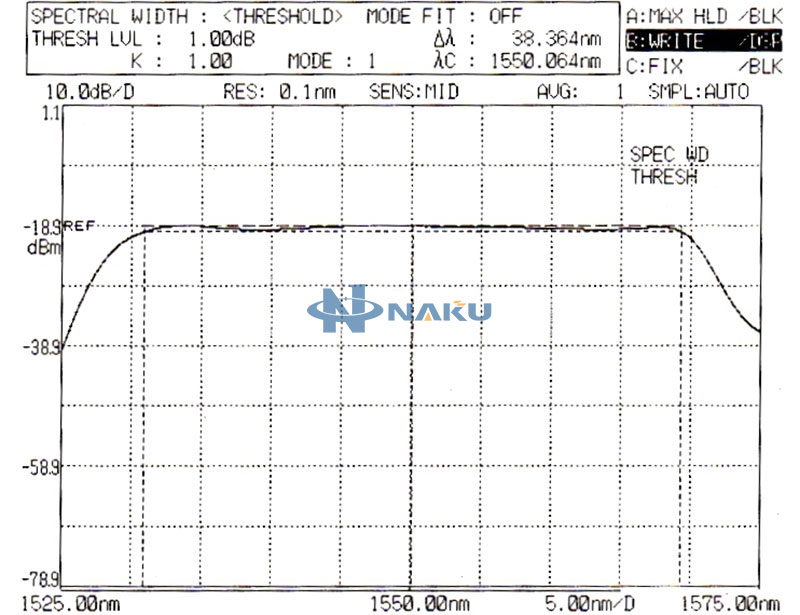

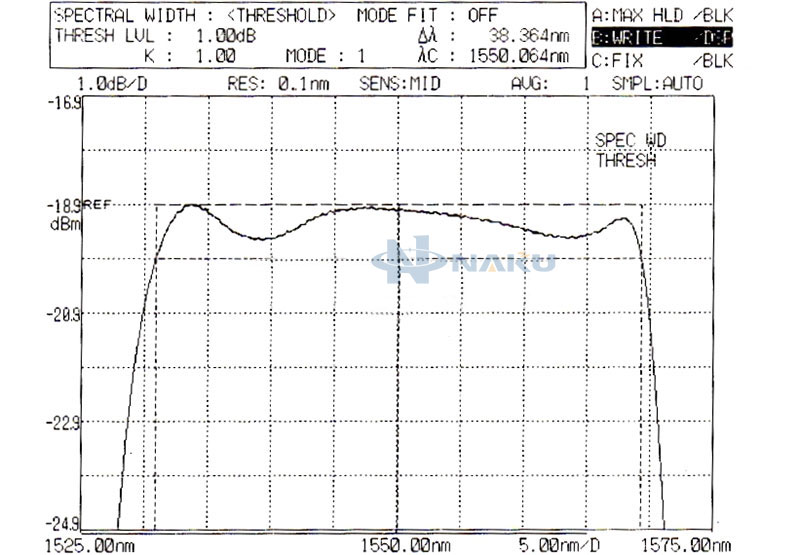

| Spectral flatness |
dB |
≤2 |
|
| Short-term stability (15 minutes) |
dB |
≤ ±0.02 |
|
| Long-term stability (8 hours) |
dB |
≤ ±0.05 |
|
| Fiber type |
|
Single Mode Fiber SMF-28e |
|
| Fiber Optic Output Type |
|
FC/APC (Default) |
Accept custom |
| Operating temperature |
°C |
-20°C ～ 65°C |
|
| Storage temperature |
°C |
-40°C ～ 85°C |
|
| Model Size |
|
Module A: 90x70x15
Module B: 150x125x20
MOdule C: 120x160x55
|
We send it randomly.
Please contact us if you have size requirements.
|
