10mW~100mW C + L波段 1528~1603nm ASE宽带光源 平整度3dB 模块类型
10mW~100mW C+L band 1528~1603nm ASE broadband light source flatness 3dB module type
1528~1603nm ASE Broadband Light Source(C+L band Gain flattening)
The spectral flatness ≤3dB, The spectral width ≥75nm, 10~100mW output power optional
C+L Band gain-flattened optical fiber ASE Broadband light source is based on general broadband source added gain flattening technology,
and optimize the structure of the light source, 3dB output spectrum flatness, and it has a high output power.
Suitable for fiber optic sensing applications.
Characteristic:
High output power
Spectral flatness ≤3dB
Spectral width ≥75nm
Stable spectrum
Application:
Fiber Optic Sensing
Medical Imaging
Optical fiber device testing
[Specifications]
|
Parameter
|
Unit
|
Typical value
|
Remarks
|
|
Working wavelength
|
nm
|
1528~1603
|
C+L band
|
|
Output power
|
mW
|
10~100
|
Choose
|
|
Spectral flatness
|
dB
|
≤3(Type 2.5)
|
|
|
Output end isolation
|
dB
|
45
|
|
|
Short term stability(15Minutes)
|
dB
|
≤ 0.02
|
|
|
Long-term stability(8Hours)
|
dB
|
≤ 0.05
|
|
|
Degree of polarization DOP
|
dB
|
≤ 0.2
|
|
|
Pigtail connector
|
-
|
FC/APC
|
|
|
Pigtail fiber type
|
-
|
SMF-28e single mode fiber
|
|
|
working temperature
|
°C
|
-20 ~ +65
|
|
|
Storage temperature
|
°C
|
-40 ~ +85
|
|
|
Power supply mode
|
-
|
DC 5V or AC 110V~220V
|
|
|
Module type size
|
mm
|
125(W)×150(D)×20(H)
|
|
|
Communication interface
|
-
|
DB9 Female(RS232)
|
Optional power adjustment function and PC software
|

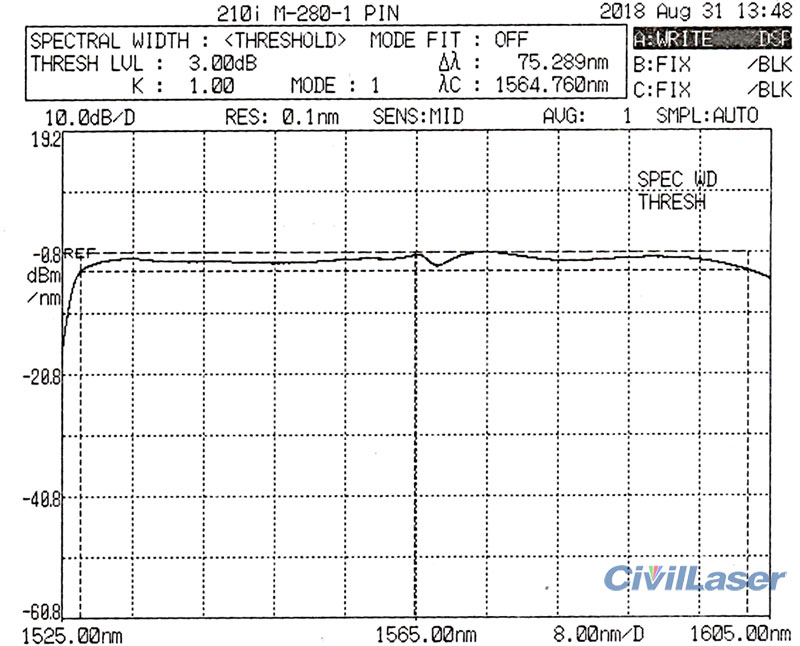

ASE broadband light source C+L band gain flattening
