10mW~1000mW 1530~1565nm C波段 DFB激光 线宽 1MHz 输出功率可调 台式

10mw~1000mW 1530~1565nm C-Band DFB laser linewidth 1MHz output power adjustable Desktop type

1530~1565nm 1550nm(Default) DFB C-band Single Wavelength Fiber Laser 1MHz Spectral Line Width

1550nm narrow linewidth laser diode butterfly DFB semiconductor laser chip, wavelength 1530~1565nm C-band, single-mode fiber output, the use of professional design of the drive circuit and TEC control to ensure laser safety and stability.

Note:

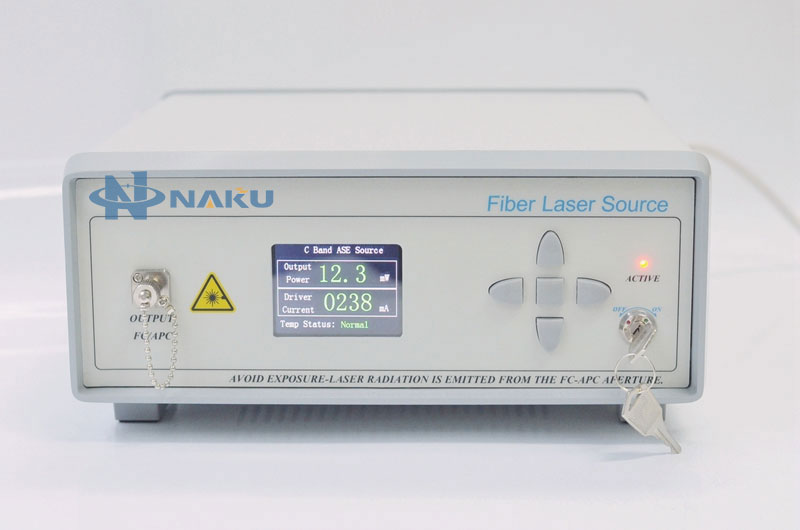

This is Desktop type,with LCD display,  output power 10%~100% adjustable.
Max output power 10mW~1000mW can be selected.

[Features]
1. Narrow line width
2. Power and spectral stability

[Applications]
1. Fiber sensing
2. Fiber laser
3. Nonlinear optical research

Parameter	Unit	Value
Center Wavelength	nm	1550±2(Default) ( 1530~1565nm can be Customized )

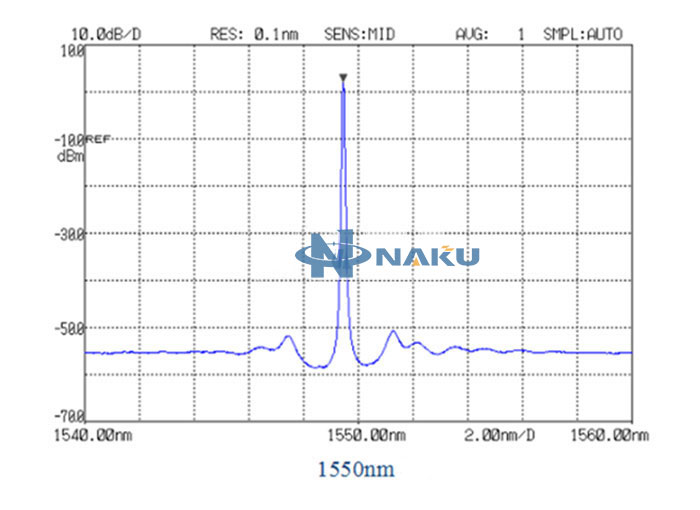

Spectral linewidth	MHz	1
Sideband Suppression Ratio	dB	>50
Output Power (Optional)	mW	10~1000 (choose) 10%~100% output power adjustable
Short-term Stability (15 minutes)	dB	≤ ±0.02
Long-term Stability (8 hours)	dB	≤ ±0.05
Fiber Type		Single Mode Fiber SMF-28e
Output Fiber Type		FC/PC(Default), FC/APC(customized)
Operating Temperature	℃	-20 ~ +65℃
Storage Temperature	℃	-40 ~ +85℃
Power Supply (Optional)		AC 110V~220V
Desktop type	mm	260(W)×280(D)×120(H)
Communication Interface (Optional)		DB9 Female / RS232 (Default: not inlcude)
