830nm 高功率激光器 3000mW 高稳定性 红外光纤耦合激光源
830nm high power laser 3000mw ir fiber coupled laser stability
[Specifications]
Product Name: 830nm fiber coupled laser
Output Wavelength: 830nm ± 5 nm
Output Power: 3000mW
Operating mode: CW or TTL/Analog Modulation
The polarization: 10:1
Power Stability: <3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
The best working temperature:20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Modulation: 0~10khz Analog or TTL
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Interface type: FC/PC ,FC/APC, SMA905 (choose)
Optical fiber core diameter: 200um/400um/600um/800um/1000um (choose)
Fiber Numerical Aperture:0.22NA(200um~400um), 0.37NA(≥600um)
Fiber Length:1m/2m/3m (Choose)
Warranty: 1 Year
[Packing list]

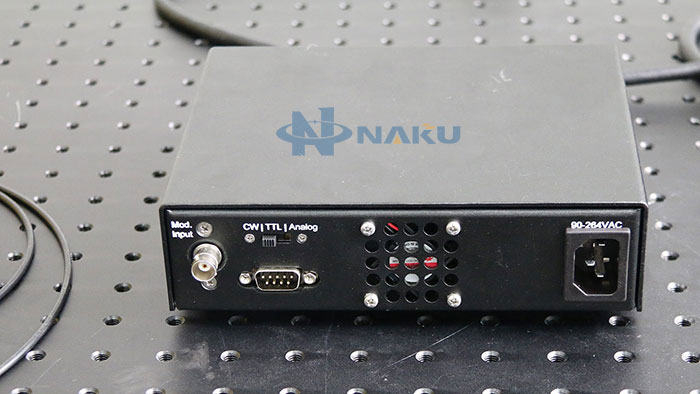

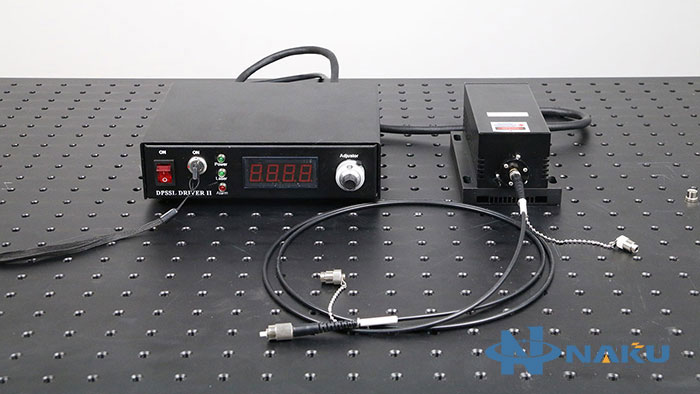

1 x Laser head
1 x Power supply
1 x Fiber tube
Note:
1. The marked output power is before coupling, coupling efficiency is about 80%~90%.
2. If you want to add a Collimator, Please click below link.
Collimator for this Fiber coupled laser.
