短波长激光 375nm 50mW 紫外激光 支持CW和调制模式

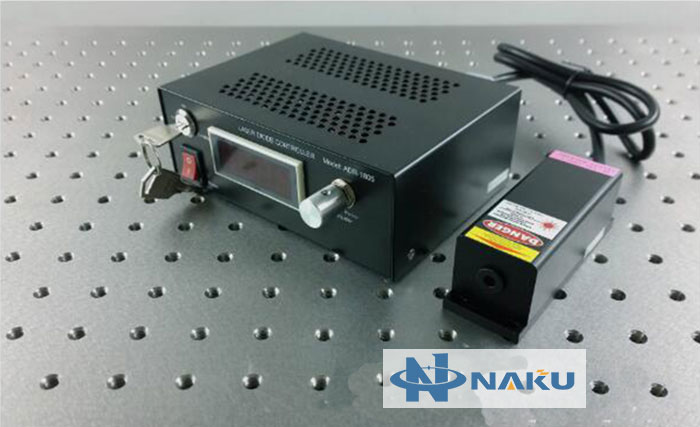

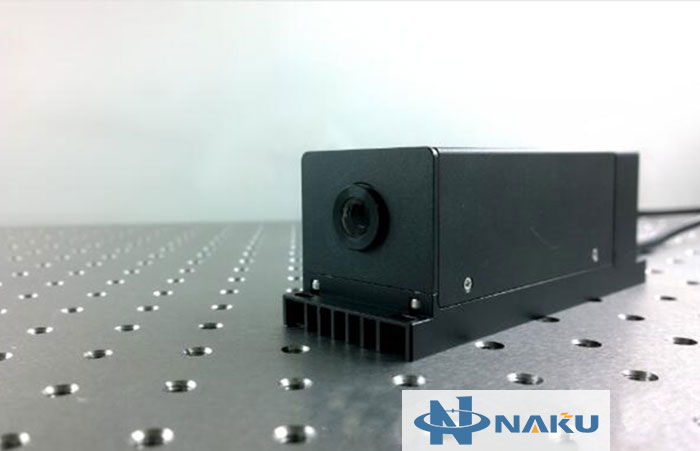

Short Wavelength Laser 375nm 50mW UV Laser CW and Modulation Together
[Note]
This laser spot is an ellipse spot.
If you need a circular spot, you can customize the coupling fiber laser.
[Features]
1.High power stability(<3%)
2.Small volume, easy to install
[Specifications]
Product Name: 375nm UV Laser
Lead Time: 1~3 weeks, Custom product available!
Wavelength: 375nm (+/-5nm)
Output Power: 50mw
Operating Temperature: 0°C-40°C
Storage Temperature: -40°C-85°C
| Parameter |
Work condition |
Symbol |
Min |
Type |
Max |
Unit |
| Output Power |
@PO |
PO |
|
|
50 |
mW |
| Power Stability |
2hrs |
Ps |
|
|
3 |
% |
| Central Wavelength |
@PO |
λc |
|
375 |
|
nm |
| Spectral linewidth |
@PO |
FWHM |
|
2 |
|
nm |
| Beam Diameter |
1/e2 Full angle |
D |
|
2mm D//
1mm D┴ |
|
mm |
| Beam Divergence Angle |
1/e2 Full angle |
Div |
|
0.5 mrad Div//
1 mrad Div┴ |
|
mrad |
| Warming Time |
@PO |
Tw |
|
|
5 |
min |
| Noise |
RMS(10Hz-100MHz) |
N |
|
1 |
|
% |
| Service Life |
@PO |
MTBF |
10000 |
|
|
hrs |
