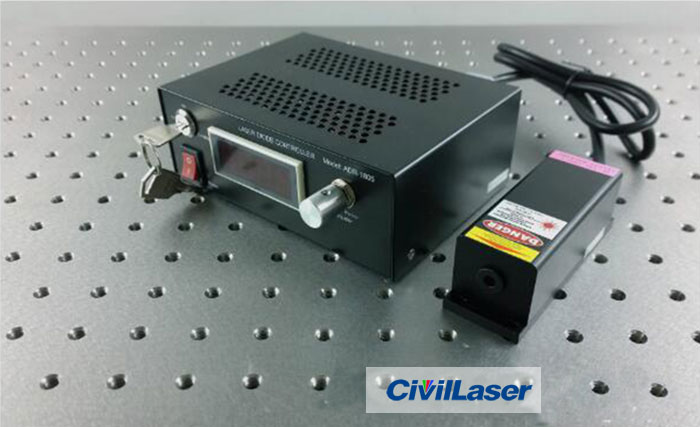

CW 780nm 800mW Laser Diode System IR Semiconductor Laser from Famous Laser Suppliers

Notes:

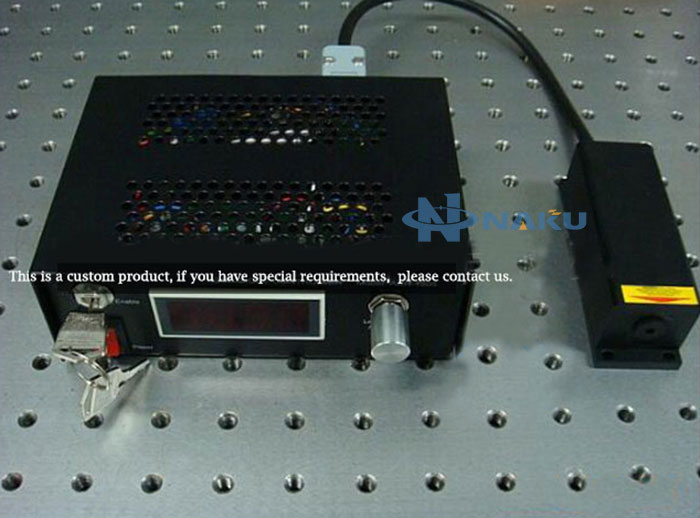

This is a custom product, $565 is the price of 800mW.If you need other output power,or need to add fiber coupling or have special requirements, please contact us.

[Features]
1.High power stability(<3%)
2.Elliptical spot output

[Specifications]
Product Name: 780nm IR Semiconductor Laser
Lead Time: 1~3 weeks, Custom product available!
Wavelength:780nm
Output Power:1-800mW
Spot roundness:>90%
Operating Temperature: 0°C-40°C
Storage Temperature:  -40°C-85°C

Parameter Work condition Symbol Min Type Max Unit
Output Power @PO PO     800 mW
Power Stability 2hrs Ps     1 %
Central Wavelength @PO λc   780   nm
Spectral linewidth @PO FWHM   2   nm
Beam Diameter 1/e2 Full angle D//   2.5   mm
D//   1.0   mm
Beam Divergence Angle  1/e2 Full angle Div//   0.5   mrad
Div┴   1.0   mrad
Spot stability 25°C       0.05 mrad
Warming Time @PO Tw     5 min
Noise RMS(10Hz-100MHz) N   1   %
Service Life @PO MTBF 10000     hrs
