拉曼激光 532nm 200mW 0.1nm 窄线宽光纤耦合激光器
Raman Laser 532nm 200mW 0.1nm Narrow Spectrum Width Fiber Coupled Laser
532nm Raman laser has the characteristics of stable spectrum and small line width.It's Very suitable for Raman and sensing applications.This kind of laser is an optical coupling of 532nm Raman laser,fiber output, in use can be more convenient for the laser spectrometer and integration.
Notes:
This is a custom product, if you need other output power, or have special requirements, please contact us.
Lead Time: 7~15 workingdays! Custom product available!
[Features]
1.Spectral stability(<3%)

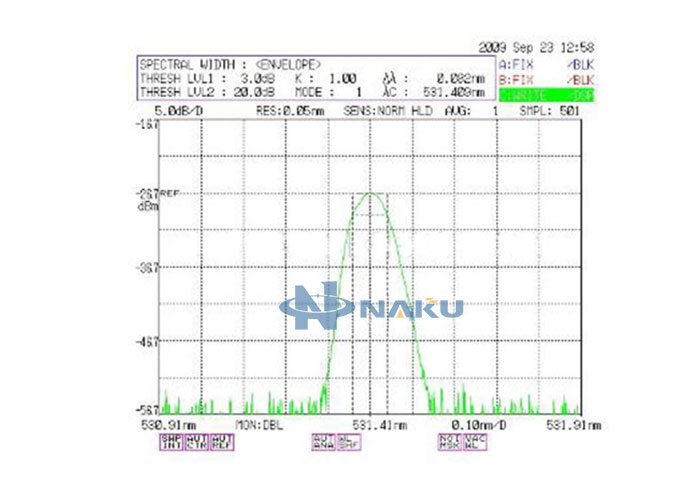

2.Small line width(0.1nm)
[Applications]
1.Raman spectrum
2.Sensing
[Specifications]
Wavelength:532nm
Output Power:1-200mW (Adjustable)
Fiber Connector:FC/PC or SMA-905 (Default SMA905)
Fiber Type:MM Fiber
Fiber length: 1 meters
Fiber Diameter: 100um
Output Stability (RMS):<5% over 2 hours
Operating Temperature: 0°C-45°C
Storage Temperature: -40°C-85°C
Warming Time: <5 minutes
Service Life: >5000 hours
Parameter |
Work condition |
Symbol |
Min. |
Typical Value |
Max. |
Unit |
Output Power |
APC |
PO |
|
|
200 |
mW |
Light Spot |
|
|
|
TM00 |
|
|
Beam Diameter |
Po , 1/e2 |
|
|
2.0 |
|
mm |
Beam Divergence Angle |
Po , 1/e2 |
|
|
0.5 |
|
mrad |
Spot Roundness |
|
|
90 |
|
|
% |
Optical Power Stability |
2hrs |
Ps |
|
3 |
5 |
% |
Line Width |
FWHM |
PO |
|
|
<0.1 |
nm |
Spectral Stability |
λs |
PO |
|
|
<0.1 |
nm |
Central Wavelength |
@PO |
λc |
531.5 |
532 |
532.5 |
nm |
Service Life |
@PO |
MTBF |
5000 |
|
|
Hrs |
