TTL调制 980nm 5mW~250mW IR 脉冲 激光模组 点状/一字线 16*60mm 夜视补光灯激光





TTL调制 980nm 5mW~250mW IR 脉冲 激光模组 点状/一字线 16*60mm 夜视补光灯激光
TTL modulation 980nm 5mw~250mw IR pulse laser Module Dot/Line 16*60mm  Night-vision fill light laser

Name: TTL modulation 980nm IR laser Module
Output Wavelength: 980nm
Output Power: 5mW~250mw(Choice)
Laser Shape: Dot(rectangle) / Line
Laser type: Invisible laser, IR laser
Outside Color: Black
Beam Divergence: 0.1mrad ~ 0.6mrad adjustable
Optical Systems: Optical Coated Glass
Spot Description: Adjustable
Modulation: TTL modulation
Modulation frequency: 1Hz-1000KHz
Operating Voltage: DC 3V ~ 5V
Laser Class: IIIB
Operating Temperature: -10℃~70℃
Storage Temperature: -40℃~80℃
Size: Φ16mm x 60 mm
Continuous working time: > 12 hours(Good heat dissipation)
Warranty: 6 Months Factory warranty

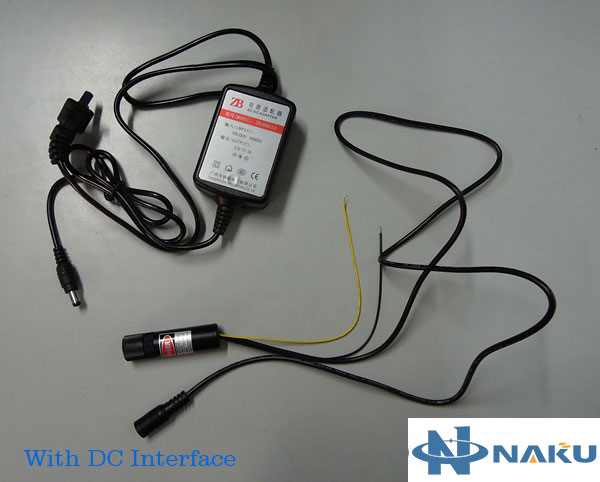

TTL modulation Description:
1 The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2 To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3 Signal input modulation frequency must be within the range 500KHZ;

Package includes:
1* TTL IR laser module
