457nm 8W~30W 半导体二极管激光器 强烈的激光蓝色激光源

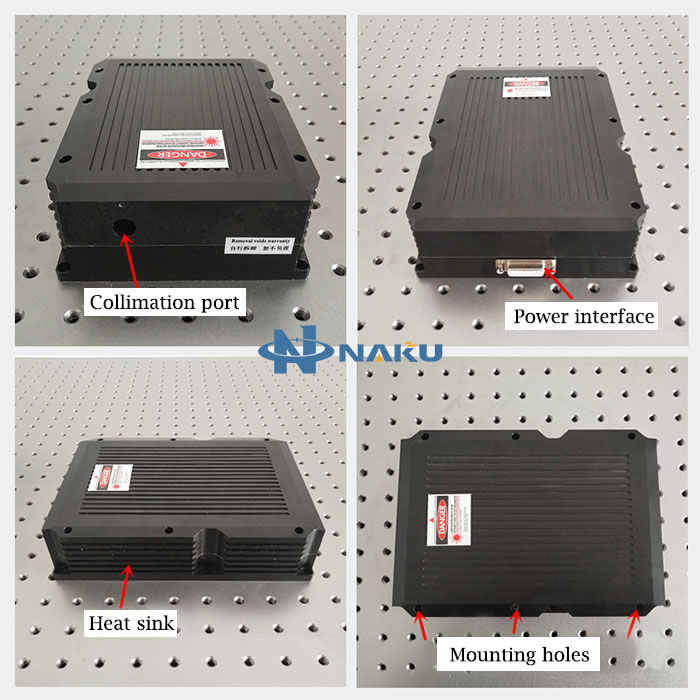

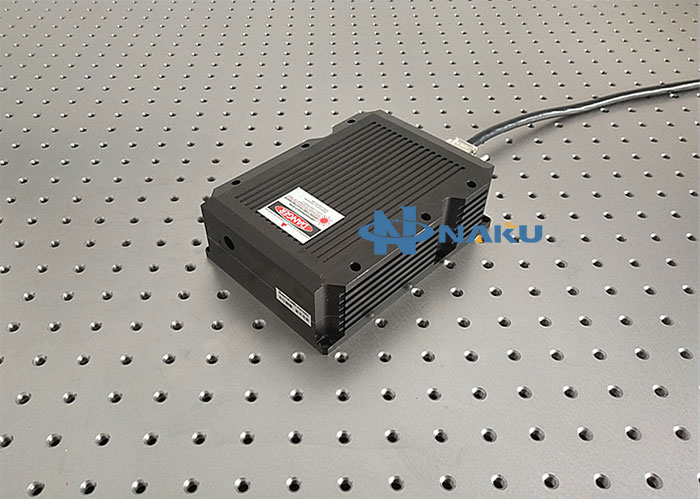

457nm 8W~30W Semiconductor Diode Laser Powerful Laser Blue Laser Source
[Specification]
Wavelength: 457+/-2nm
Output Power: 8W~30W (Choose)
Spectral Linewidth(FWHM): 2nm
Spatial Mode: Multimode
Operation Mode: CW or Modulation
Beam Height: 34mm
Beam Size: <6mm
Beam Divergence(full angle): <1.2 mrad
Power Stability: <3% per 4 hours
Temperature Stabilizing: TEC
Warm Up Time: <1minute
MTTF(mean time to failure): 10,000 hrs

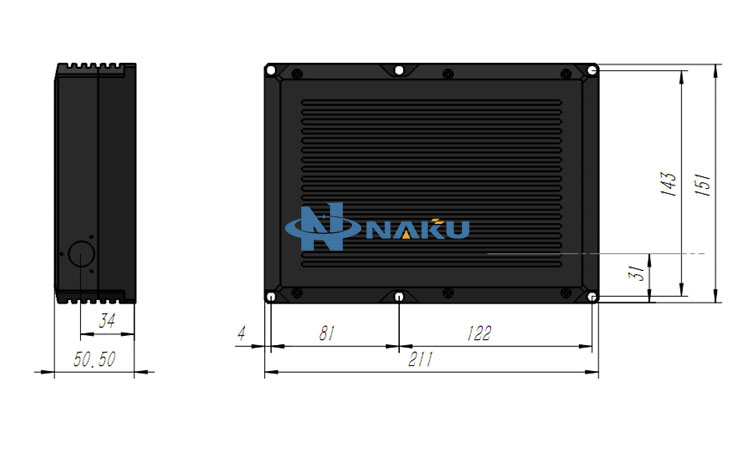

Laser Head Dimensions: 166(L)x120(W)x45.5(H)mm3
Power Supply: Standard type power supply -- 143(L)x40(W)x38(H)mm3
Lab Adjustable power supply -- 178(L)x197(W)x84(H)mm3
Modulation: 0~30khz Analog or TTL
Warranty: 1 year

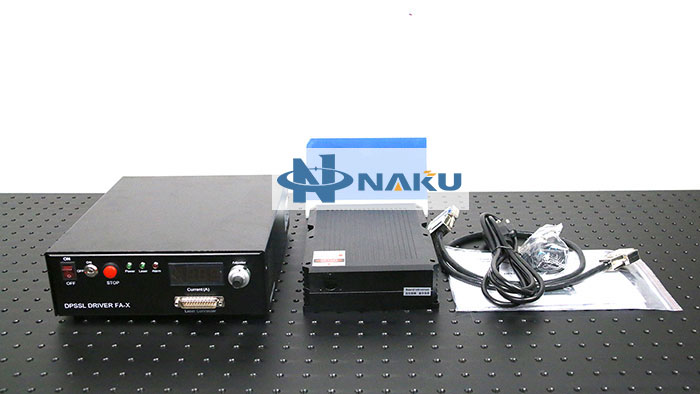

[Packing List]
1 x 457nm Blue laser
1 x Power supply
Note:

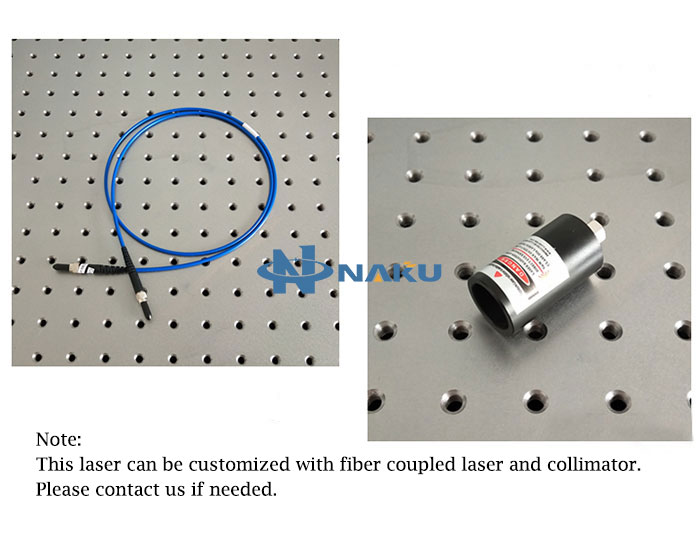

This laser can be customized with fiber coupled laser. Please contact us if needed.
