527nm 530nm 3W~15W 高功率激光器 绿色 多模二极管激光系统

527nm 530nm 3W~15W High Power Laser Green Multimode Diode Laser System

[Specification]
Wavelength: 530nm+/-3nm
Output Power: 3W~15W (Choose)
Spatial Mode: Multimode
Operation Mode: CW or Modulation
Beam Height: 3~6W -- 29mm
                       8~15W -- 34mm
Beam Size: 3~6W -- <7*6mm
                   8~15W -- <6mm
Beam Divergence(full angle): <1.2mrad
Power Stability: <3% per 4 hours
Warm Up Time: <1minute
MTTF(mean time to failure): 10,000 hrs
Laser Head Dimensions(3~6W): 136(L)x88(W)x53(H)mm3

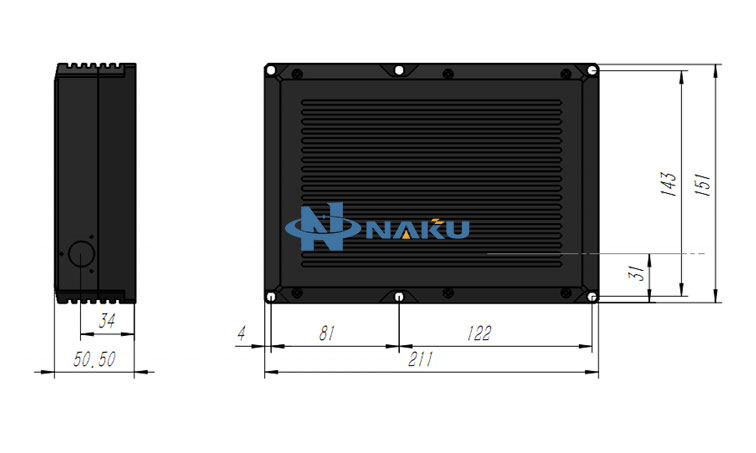

Laser Head Dimensions(8~15W):  -- A: 166(L)x120(W)x50.5(H)mm3
                                                       -- B: 185(L)x128(W)x50.5(H)mm3
Power Supply(3~6W): Standard type power supply -- 100(L)x58(W)x32(H)mm3
                                    Lab Adjustable power supply -- 179(L)x148(W)x56(H)mm3
Power Supply(8~15W): Standard type power supply -- 143(L)x40(W)x68(H)mm3
                                       Lab Adjustable power supply -- 178(L)x197(W)x84(H)mm3
Modulation: 0~30khz Analog or TTL
Warranty: 1 year

[Packing List]

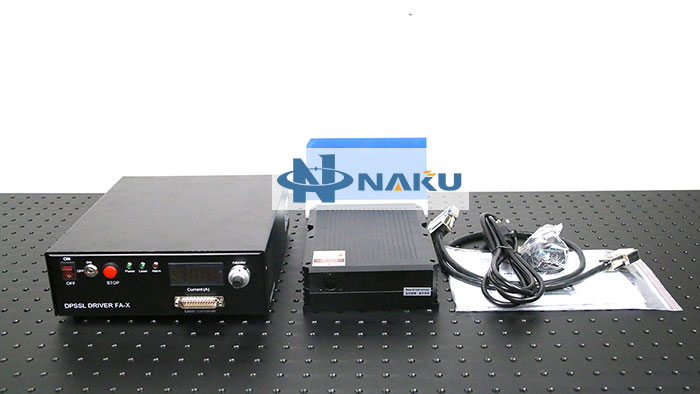

1 x 527/530nm laser
1 x Power supply

Note:
This laser can be customized with fiber coupled laser. Please contact us if needed.
