658nm 100mW 0.1nm 超窄线宽拉曼激光器 高性能红色激光光源

658nm 100mW 0.1nm 超窄线宽拉曼激光器 高性能红色激光光源

658nm 100mW 0.1nm Ultra-Narrow Linewidth Raman Laser High Performance Red Laser Source

[Features]
1. Spectral linewidth <0.2nm
2. Spectral stability: <0.005nm/℃

[Application]
2. Raman spectroscopy
2. Sensing

[Specification]
Product Name: Narrow linewidth raman laser
Wavelength: 658nm
Output Power: 1~100mW (Adjustable)
Operating Temperature: 0°C~45°C
Storage Temperature:  -40°C~85°C

Parameter Work condition Symbol Min. Typical Value Max. Unit
Output Power APC mode PO     100 mW
Beam Diameter Po , 1/e2 DiaV   5   mm
DiaH   0.5   mm
Beam Divergence Angle Po , 1/e2 DiaV     1.5 mrad
DiaV     5 mrad
Power Stability 2hrs Ps     3 %
Spectral Linewidth FWHM PO   0.1 0.3 nm
Spectral Stability λs PO   0.01   nm/°C
Central Wavelength @PO λc 657 658 659 nm
Service Life @PO MTBF 10000     Hrs

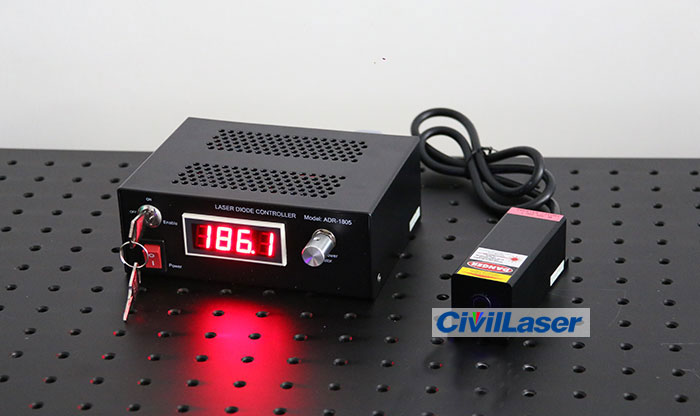

658nm raman laser

658nm raman laser

658nm raman laser

658nm raman laser

658nm raman laser
