780nm 5mW-200mW 红外点状激光模组 可调焦/TTL调制

780nm 5mw-200mw IR Laser Module Dot Focusable With TTL Modulation

[Features]
Continuous laser with TTL modulation 0-50KHz(Adjustable)
Ultra high brightness indoor and outdoor
Clear and bright and soft light
Stability is particularly high can open 24 hours a day

[Tips]

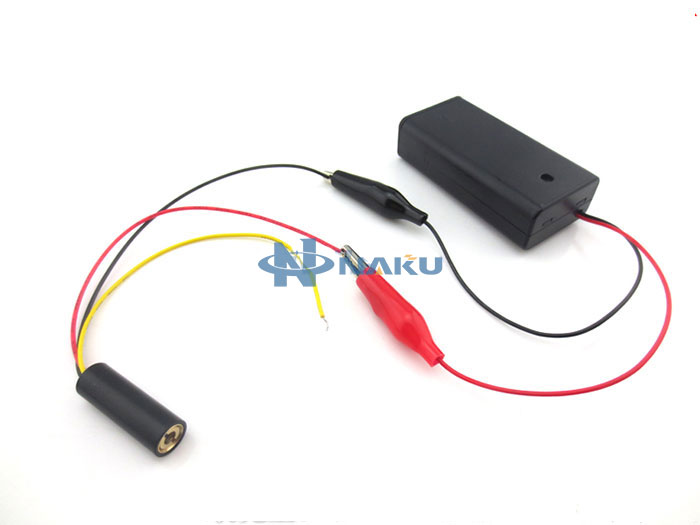

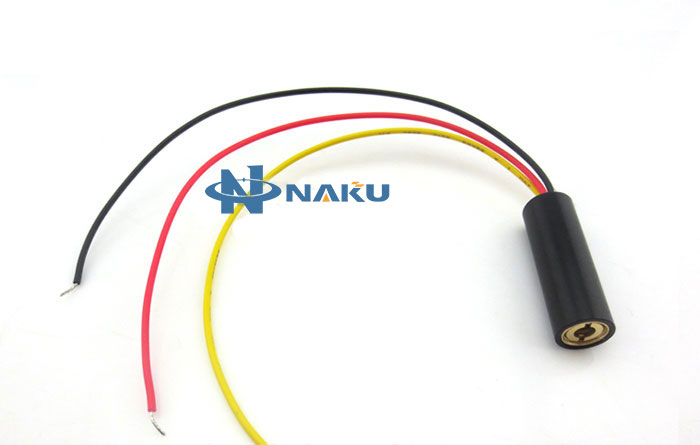

The red line is connected with a power supply cathode
The black line is connected with a power supply anode,
Yellow with TTL modulation signal

780nm 5mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:780nm
Output Power: 5mw
Operating Voltage: DC 2.8-5（V）
Operating Current:≤35mA
Spot Mode:dot ( focus adjustable)

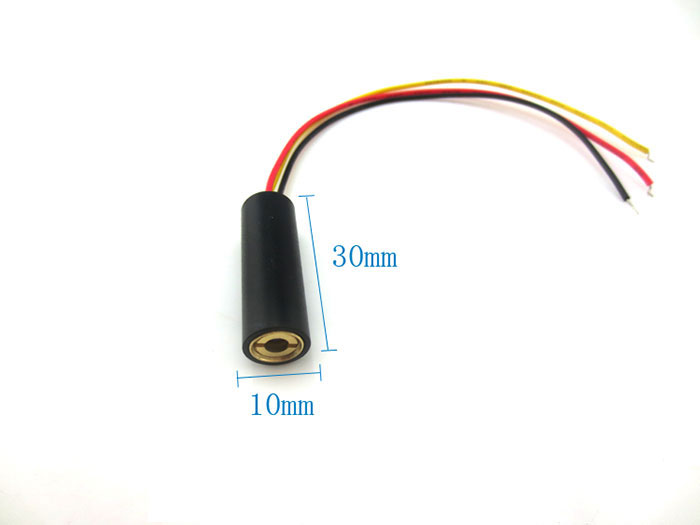

Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm
-----------------------------------------------------------------------------------

780nm 50mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength: 780nm
Output Power:50mw
Operating Voltage: DC 2.8-5(V）
Operating Current:≤120mA
Spot Mode:dot ( focus adjustable)
Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm

-----------------------------------------------------------------------------------
780nm 100mw IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:780nm
Output Power:100mw
Operating Voltage: DC 2.8-5（V）
Operating Current:≤180mA
Spot Mode:dot ( focus adjustable)
Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm

-----------------------------------------------------------------------------------

780nm 200mw  IR Laser Module Dot With TTL Modulation
[Specifications]
Output Wavelength:  780nm
Output Power: 200mw
Operating Voltage: DC 2.8-3.2（V）
Operating Current:≤350mA
Spot Mode:dot ( focus adjustable)
Appearance size: 10*30mm(Default Size), we can make 12*50mm, 16*70mm

[Package includes]
1 x laser module
