830nm 500mW 0.1nm Ulrea-Narrow Linewidth Raman Laser IR Light Source Based on Raman Fiber Laser

[Features]
1. Spectral linewidth <0.2nm
2. Spectral stability: <0.005nm/℃

[Application]
2. Raman spectroscopy
2. Sensing

[Specification]
Product Name: Narrow linewidth raman laser
Wavelength: 830nm
Output Power: 1~500mW (at fiber output power)
Optical Fiber: 100um / NA 0.22 / SMA / 1 Meter
Operating Temperature: 0°C~45°C
Storage Temperature:  -40°C~85°C

Parameter Work condition Symbol Min. Typical Value Max. Unit
Output Power APC mode PO     500 mW
Power Stability 2hrs Ps   1 3 %
Noise RMS(10Hz-100MHz) N     1 %
Central Wavelength @PO λc 829 830 831 nm

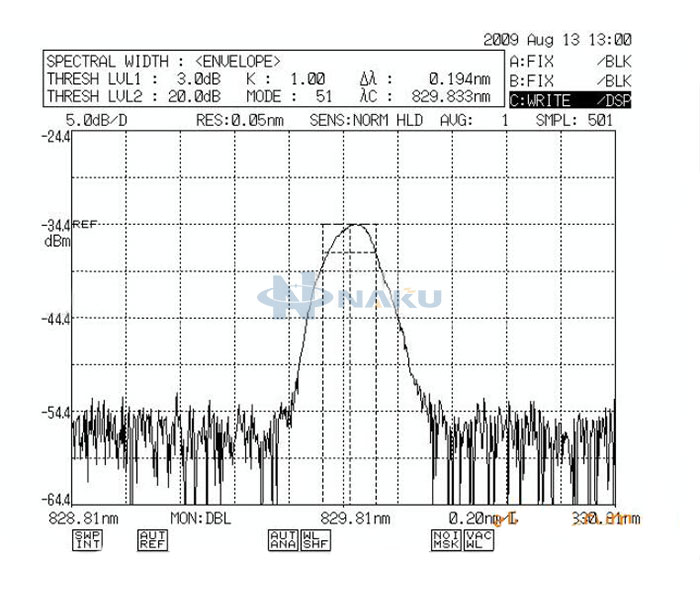

Spectral Linewidth FWHM PO   0.1 0.3 nm
Spectral Drift @PO λd   0.01   nm/°C
Service Life @PO MTBF 10000     Hrs
