532nm 30mW TTL调制 绿光 激光模组 点 16mmx75mm

价格:$1.00

(最新的价格,请联系我们.)

请选择:





购买数量:


532nm 30mW TTL调制 绿光 激光模组 点 16mmx75mm
532nm 30mw TTL modulation Green laser module Dot  16mmx75mm

This green laser module is the use of high-power infrared laser-pumped laser crystal to produce, spot round, beam divergence is small, export power from 5mW to 50mW, can be customized according to user specific purposes.


SPECIFICATIONS:
Name: 532nm TTL Green laser module Dot
Output Wavelength: 532nm
Output Power: 30mw
Threshold Current: 100mA
Operating Current: <270mA
Beam Divergence: 0.6mrad
Spatial mode: TEM00 Continuous Wave
Spot Description: 8m Distance <=> Laser beam Diameter >6mm
Modulation: TTL modulation
Modulation frequency: 10Hz-500KHz
Operating Voltage: DC 3V
Laser Class: IIIB
Operating Temperature: 10℃~35℃
Storage Temperature: -10℃~80℃
Warm-up time: Less than 2minutes
Power Stability: <±10%
Outside Color: Black
Size: Φ16mmx75mm
Continuous working time: 1~2 hours(Good heat dissipation)
Warranty: 12 Months


Package includes:
1* Green laser module

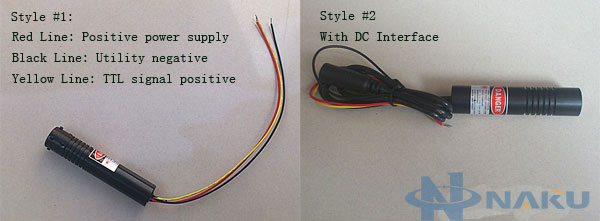

TTL modulation Description:
1. The red and yellow lines shorted, the module will be lit, in a continuous mode of operation;
2. To modulate the signal line negative black wire, positive connected to the yellow line, red line vacant, modulation module in working condition.
3. Signal input modulation frequency must be within the range 500KHZ;


Warning :
1. All of laser products are harmful for eyes,please don't aim people eyes(contain animal eyes) directly.
2. It is Industrial laser ,not toy .Keep far from Children under 18years old.
