635nm/638nm 300mW~500mW 橙红光 激光模组 点状/TTL调制/低价

价格:$1.00

(最新的价格,请联系我们.)

请选择:





购买数量:


635nm/638nm 300mw/500mw Orange Red laser module Dot/TTL modulation/ Cheap

This laser module can be widely used in various stage laser light with TTL modulation, can work long hours, truly industrial lasers.
Can provide customers with photovoltaic solutions designed to meet customer demand laser modules.


Special note: The input voltage of 12V, overpressure can cause damage to the circuit and module moment

SPECIFICATIONS:
Name:  635nm/638nm 300mw Orange Red laser module
Output Wavelength: 638nm
Output Power: 300mW/500mW (choice)
Laser Shape: Dot
Laser Module Size: 16mm x 30mm x 30mm

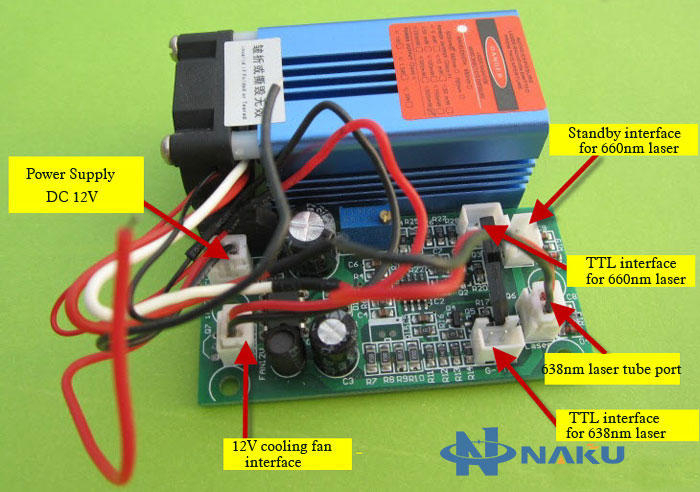

Laser Module Circuit board Size: 71.5mm x 35.5mm x 16mm
Cooling: Aluminum heat sink + fan
Modulation: TTL modulation
Beam divergence: <1.5mard
Operating mode: CW
Outside Color: Blue
Material: Aluminum
Circuit control: constant current
Anti Access Protection: Yes
Operating Voltage: DC 12V
Operating Current: <450mA
Warm-up Time: 0
Operating Temperature: -10℃~40℃
Storage Temperature: -10℃~40℃

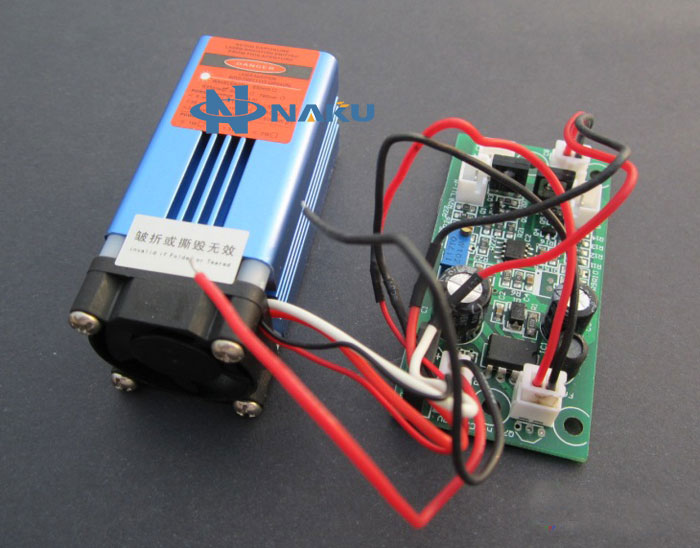

Structural features: laser tube + lens + cooling housing




Package includes:
1* TTL Red laser module







Additional Images
