1047nm 红外激光源固体调Q脉冲激光器 带电源
1047nm IR Laser Source Solid Q-Switched Pulsed Laser With Power Supply
[Specification]
Product Name: 1047nm Q-Switched Laser
Lead Time: 1~3 weeks, Custom product available!
Wavelength: 1047nm
Average Output Power: 1~300mW
Single Pulse Energy: 5~100uJ
Pulse Width: 10~20ns
Peak Power: 200W~10KW
Repeat Rate: 100~1K Hz (Customizable 0.1~100Hz or 1~4KHz)
Beam Diameter(1/e²): <3 mm
Beam Divergence: <2 mrad
Power Stability: <3% per 2 hours
Beam Height: 29mm
Beam Quality(M²): <2
Temperature Stabilizing: TEC thermoelectric cooling
Warm Up Time: <5 minute
Optimum Operating Temperature: 5~45℃
Storage Temperature: 0~50℃
MTTF(mean time to failure): 10,000 hrs

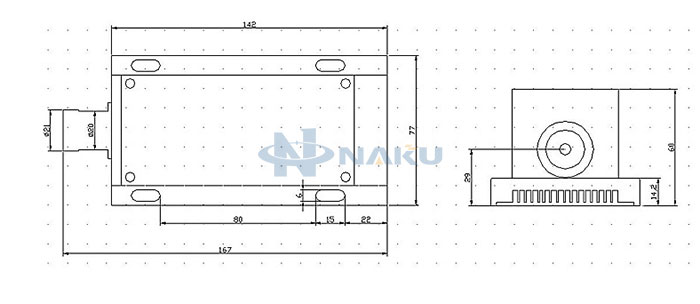

Laser Head Dimensions: 165(L)x77(W)x60(H)mm3
Power Supply: Standard type power supply -- 100(L)x70(W)x55(H)mm3
Lab Adjustable power supply -- 178(W)x197(D)x84(H)mm3
[Packing List]
1 x 1047nm Q-switched laser
1 x Power supply
