650nm 1W 红光 工业激光模组 TTL调制
650nm 1W Red Industrial laser module with TTL modulation
There are a lot of High-power laser modules, but high-power 650nm red laser module in market is rare, even if there is astronomical, astronomical stuff just fits in the laboratory or government, we the people can not afford, regardless of any industrial products personally feel should reasonable price, of course, quality is the key to this product is super stable performance, appearance do you know, absolutely genuine, using semiconductor temperature control and dual fan cooling design, and one year warranty.
SPECIFICATIONS:
Absolute Maximum Ratings
Parameter |
Symbols |
Ratings |
Units |
Note |
Storage Temperature |
Tstg |
-10~50 |
℃ |
|
Operating Temperature |
Top |
0~30 |
℃ |
Outer casing temperature |
Voltage |
AC |
110~265 |
V |
|
Optical Output |
|
980~1040 |
mW |
|
Electrical and optical Characteristics
Parameter |
Symbols |
Min |
Typ |
Max |
Units |
Conditions |
Dominant Wavelength |
λc |
640 |
650 |
660 |
nm |
Po﹦1000mW |
Output Power |
Po |
980 |
1000 |
1040 |
mW |
|
Threshold Current |
Ith |
|
0.5 |
0.65 |
A |
|
Operating Current |
Iop |
|
1.2 |
1.6 |
A |
Po﹦1000mw |
Operating Voltage |
Vop |
5 |
5.2 |
5.5 |
V |
|
Lasing Wavelength |
Δλ |
|
2.5 |
3 |
nm |
Po﹦1000mw |
Installation Instructions
1. Laser system in the work process, will produce heat. Please use the laser head is preferably placed on a flat plate heat sink, such as metal aluminum.
2. The product has a cooling system, make sure the laser head and around 0.1 m Do not place any objects within, so as not to affect the ventilation and heat dissipation.
3. This product is used for other products such as assembly into cabinets used, make sure that the laser out of the vents open. If the cabinet is equipped with fan, must ensure that the laser and machine romantic direction.

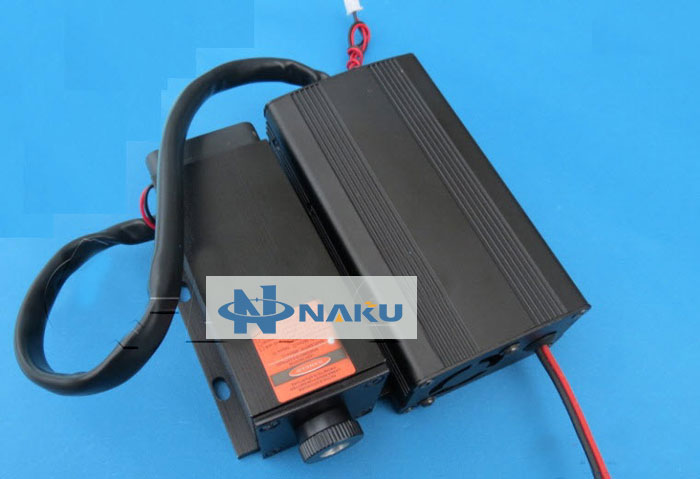

650nm 1W High power red laser module with cooling fan
