515nm/520nm 50mW~150mW 焦点可调节 草绿光 激光模组

价格:$1.00

(最新的价格,请联系我们.)

请选择:





购买数量:


515nm/520nm 50mW~150mW 焦点可调节 草绿光 激光模组
515nm/520nm 50mW~150mW Focus Adjustable Grass Green Laser Module 12V


Features:
1. Without Warm-up Time,very low power, low heat,so it can coninue work long hours in the temperature range of 0-60 degrees, but the traditional  532nm green laser module is only guaranteed to work at room temperature 20 degrees, zero temperature can not be normal startup, for example, most of such a small size can not work long hours;
2. Shape design improvements,Taking into account the square products more suitable for precise fix on any plane, so designed as a rectangular cross-section, of course, but also retains the characteristics of concentric circles, so let alone modules and other equipment or assembly to become simple and precise.
3.  OSRAM imported semiconductor laser diode light in the form of point-like, with a range as far as three kilometers or more.

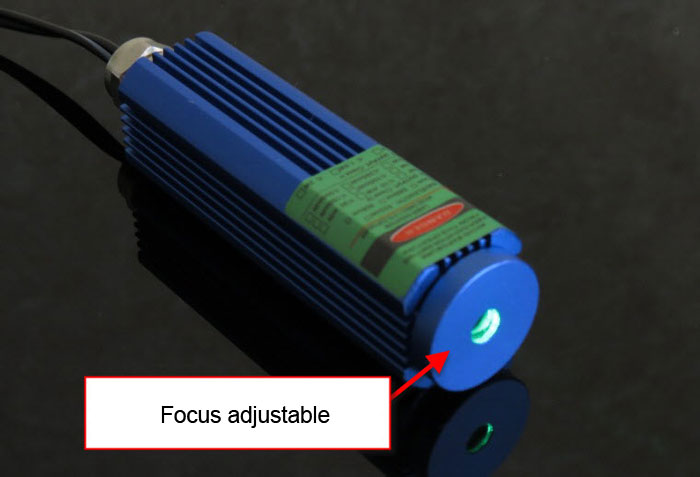

4. Using focusable design structure, you can freely adjust according to need spot size.


SPECIFICATIONS:
Output Wavelength: 515 nm±10nm
Output Power: 50mW /100mW /150mW (Choose)
Laser Shape: Dot
Beam Divergence: <1.5mard
Outside Color: Blue
Material: Aluminum Alloy
Electric-control: ACC line rod
Anti Access Protection: Yes
Operating Voltage: DC 5V/12V
Operating Current: <250mA
Warm-up Time: Nought
Operating Temperature: 0℃~60℃
Storage Temperature: -40℃~85℃
Structural features: laser tube + lens + cooling housing

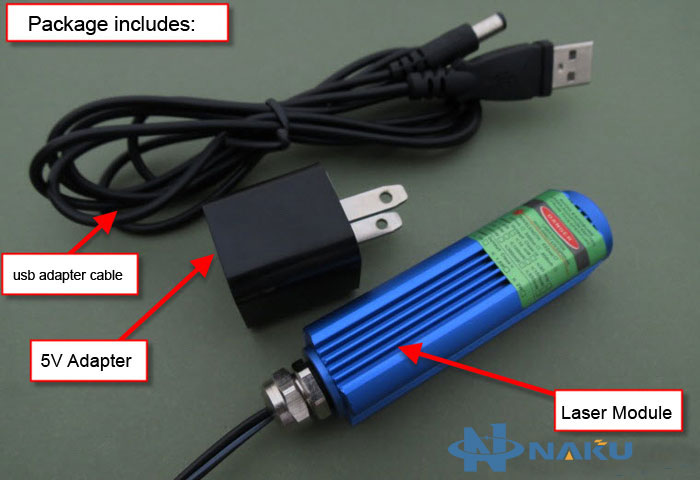

Package includes:
1 x Green laser module
1 x Power supply
