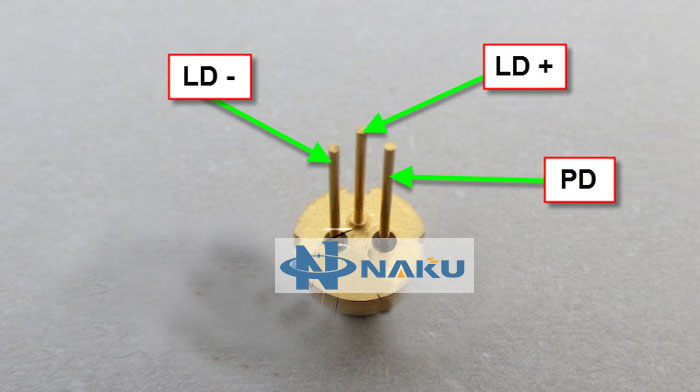

808nm 200mw IR 激光二极管 PD 促销 TO-18 5.6mm

$1.00

(最新的价格,请联系我们.)
购买数量:
最少:  5

808nm 200mw IR 激光二极管 PD 促销 TO-18 5.6mm
808nm 200mw IR laser diode PD sales  TO-18 5.6mm

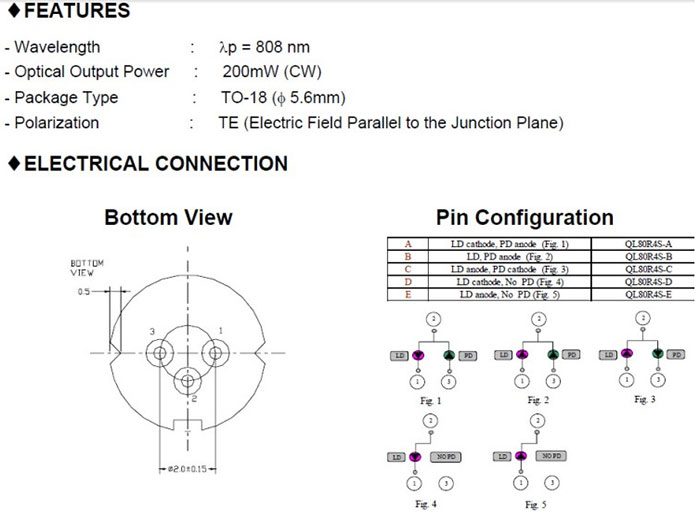

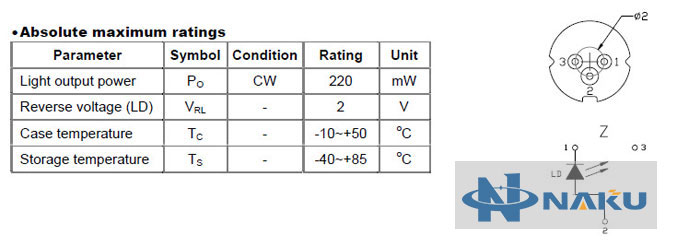

[Specifications]
Place of production: Japan
Output Wavelength: 808nm
Output power: CW 200mW
Operating Current: <200mA
Operating Voltage: 1.8-2.2V
Package Type: T018(5.6mm)
Working life: >10,000 hours

[Note]
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
