532nm 4W 5W 高功率绿色DPSS激光器 带TTL调制和电源

价格:$1.00  $1.00
节省: 0%

(最新的价格,请联系我们.)

请选择:





购买数量:

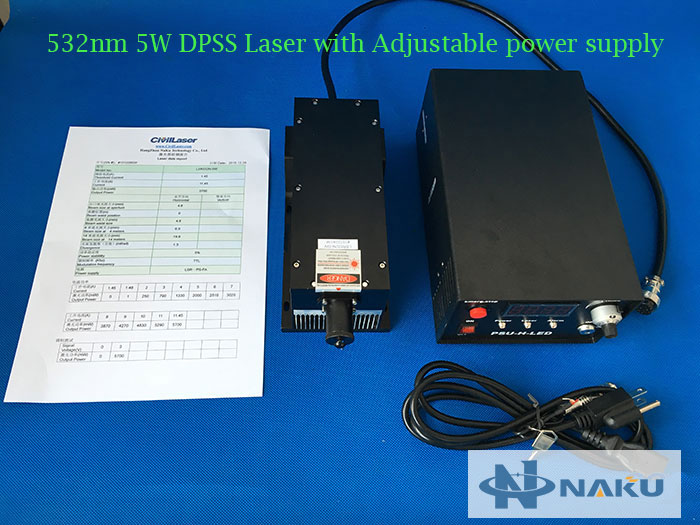

532nm 4W 5W 高功率绿色DPSS激光器 带TTL调制和电源
532nm 4W 5W High Power green DPSS with TTL modulation and power supply

[Features]
Miniature size
Collimated straight beam
Easy use & maintenance free
Longlife operation
High efficiency
High reliability

[Specifications]
Product Name: 532nm 4W 5W Green DPSS Laser
Lead Time: 3~7 workingdays! Custom product available!
Output Wavelength: 532 nm
Output Power:4W 5W (Choose)
Spatial mode: near TEM00
Operating mode: CW or Modulation
Modulation:  0~30khz Analog or TTL modulation
Beam quality(M2): <2
Polarization: >100:1
Laser Shape: Circular, aspect ratio<1.1:1
Pointing Stability: <0.05 mrad
Beam Diameter(1/e2): 3 mm
Divergence Angle: <1.5 mrad
Beam height from base: 68.2mm
Power Stability:  <±5% per 4hrs
Temperature Stabilizing: TEC
Warm Up Time: <10 minutes
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser head dimensions: 155(L)x77(W)x60(H) mm
Power Supply #1: Standard type power supply 100(L)x70(W)x55(H)mm
Power Supply #2: Lab Adjustable power supply  178(L)x197(W)x84(H)mm
Warranty: 1 Year

[APPLICATIONS]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar

[Package include]
1 x 532nm dpss laser
1 x Laser power supply

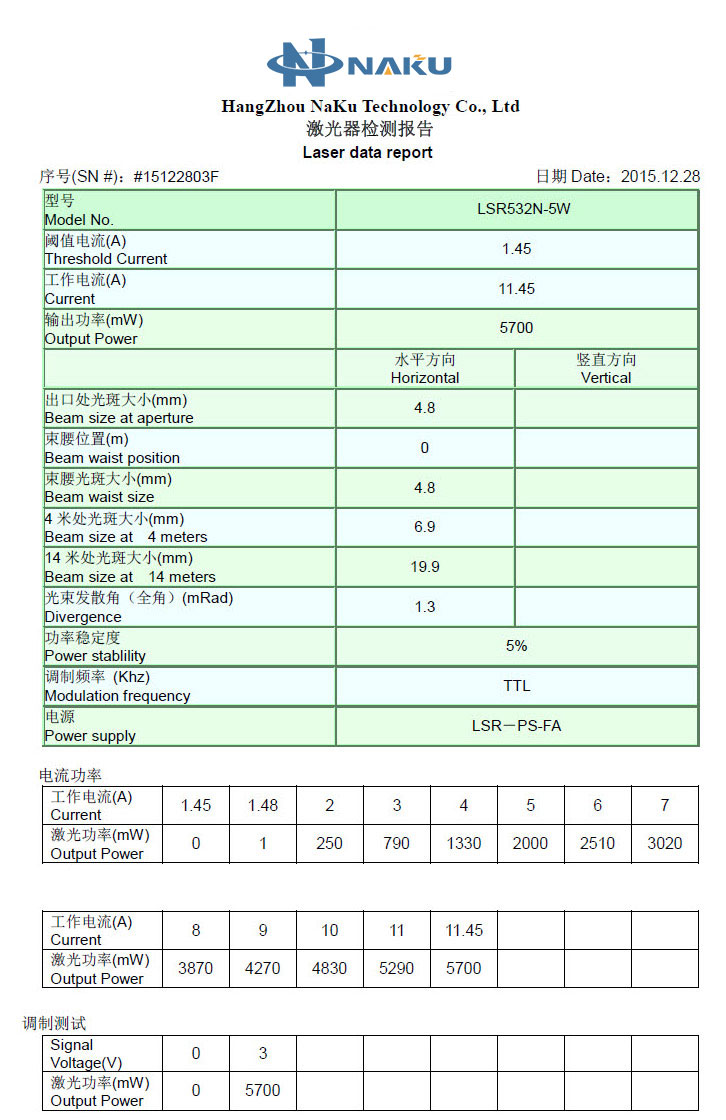

532nm 5W DPSS Laser Data Report
532nm 5w dpss laser data report
