980nm 500mw~1000mw 红外半导体激光器带电源/TTL调制
980nm 500mw~1000mw IR Semiconductor Laser with power supply /Modulation TTL
[Specifications]
Product Name: 980nm 500mw~1000mw IR Semiconductor Laser
Lead Time: 1~3 weeks, Custom product available!
Output Wavelength: 980(+/-5) nm
Output Power: 500mw~1000mw
Operating mode: CW or Modulation
Prejudiced way: 10:1
Pointing Stability: <0.05 mrad
Beam diameter: 6mm
Beam Divergence Angle: 2.5 mrad
Power stability: <±3% per 2 hrs
Bean Height: 25mm
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam quality(M2): <20
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Laser dimensions: 100(L)x40(W)x50(H)mm3
Modulation: 0~30khz Analog or TTL
[Package include]
1 x 980nm IR Laser
1 x Laser power supply

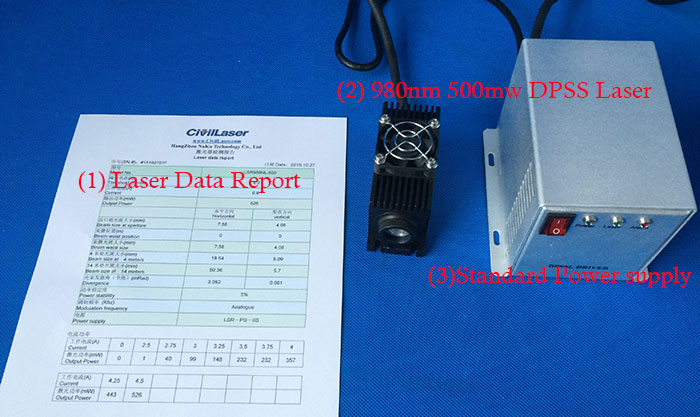

980nm 500mw ir laser with standard power supply
