808nm 2W~5W 光纤耦合激带电源

价格:$1.00  $1.00
节省: 0%




808nm 2W~5W 光纤耦合激带电源

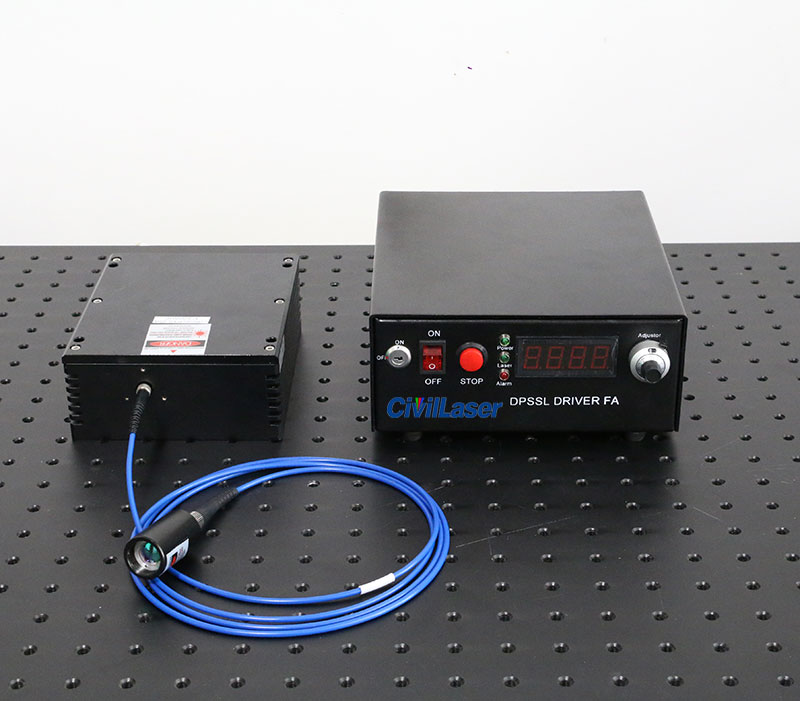

808nm  2W~5W  Fiber coupled laser with power supply
Product Name: 808nm  2W~5W  Fiber coupled laser
Lead Time: 1~3 weeks, Custom product available!
Output Wavelength: 808(+/-5) nm
Output Power:   2W~5W (Choose)
Optical fiber core diameter: 400um(Default) -- (200um/400um/600um/800um/1000um -- Can be customized)
Spatial mode: TEM00
Operating mode: CW or Modulation
Fiber diameter: 100um 200um
Power stability: <3% per 4 hrs
Temperature Stabilizing: TEC
Warm Up Time: <1 minutes
MTTF(mean time to failure): 10,000 hrs
Modulation:  0~30khz Analog or TTL
Interface type: FC/PC (default), FC/APC, SMA905 (If you need FC/APC or SMA905 interface please leave a comment when you place the order.)
[Package include]
1 x 808nm Fiber coupled  Laser
1 x Laser power supply

Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.
           For example, the 3W laser's actual output power of fiber coupled laser is >2.4W.
