532NM 100mW~200mW 绿光激光模组 半导体激光 制冷





532NM 100mW~200mW 绿光激光模组 半导体激光 制冷
532NM 100MW~200mW Green laser module semiconductor refrigeration

Such products can be widely used in various stage laser light with TTL modulation, can work long hours, truly industrial laser

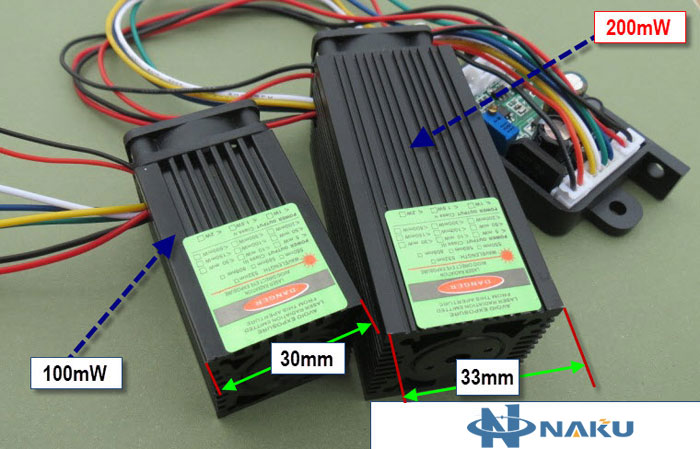

Laser Module Size(100mw): 74mm*30mm*30mm
Laser Module Size(200mw): 82mm*33mm*33mm
Laser Module Circuit board Size: 71.5mm*35mm*20mm
Output Wavelength: 532 nm
Output Power: 100mW/200mW (choice)
Beam Divergence: <1.5MARD
Refrigeration mode: Fan Cooling
Continuous Work: Yes
Frequency mondulation: TTL 0-30K HZ
Outside Color: Black
Material: Aluminum Alloy
Electric-control: Constant-current
Anti Access Protection: Yes
Operating Voltage: DC=12V
Operating Current: I<500mA
Warm-up time: No
Operating Current: -10℃~+40℃
Storage Temperature: -10℃~+40℃
Structure: Laser tube + Lens + Radiating shell

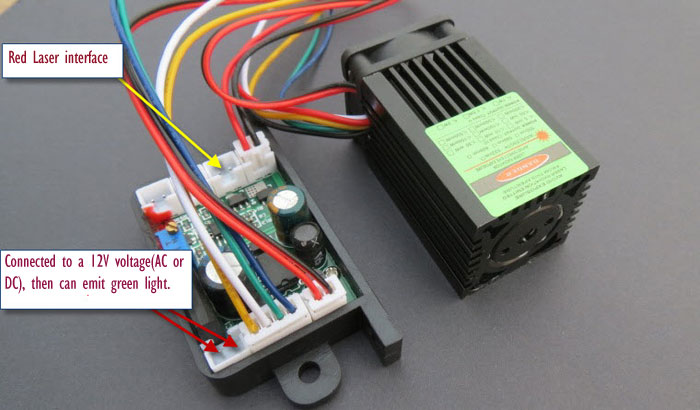

Note: The power and the laser head are split,there is a fan cooling in the laser head.
