SONY  SLD3234VFI  405nm 65mw Blue Violet Laser Diode  3.8mm
Product name: Sony 405nm laser diode
Output Wavelength: 405nm
Output Power: CW 65mw (Pulsted Power: 170mW)
Operating Current: <110mA
Operating Voltage: DC 5V

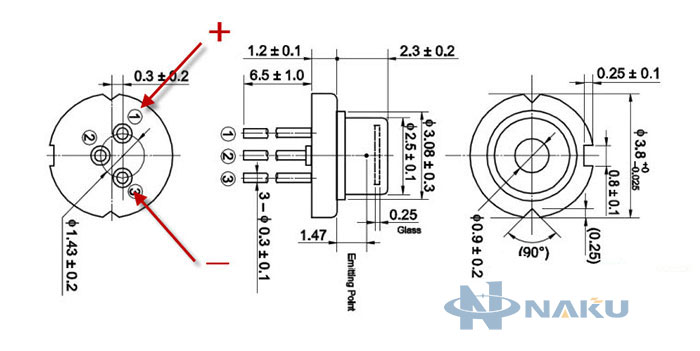

Package Type: 3.8mm
Working life: >10,000 hours
Place of production: Japan
This component sensitive to static electricity, anti-static measures do not make direct contact with the laser tube by human hand, in addition to the product must have a qualified driver circuit before work, different laser beam power with the same working voltage, but  operating current is different, the circuit of the tube drive current needed to control in a safe range, otherwise it will affect life expectancy.
This is a special product, before shipment to ensure the good quality and brand new, once sold, do not be warranty and refund!
