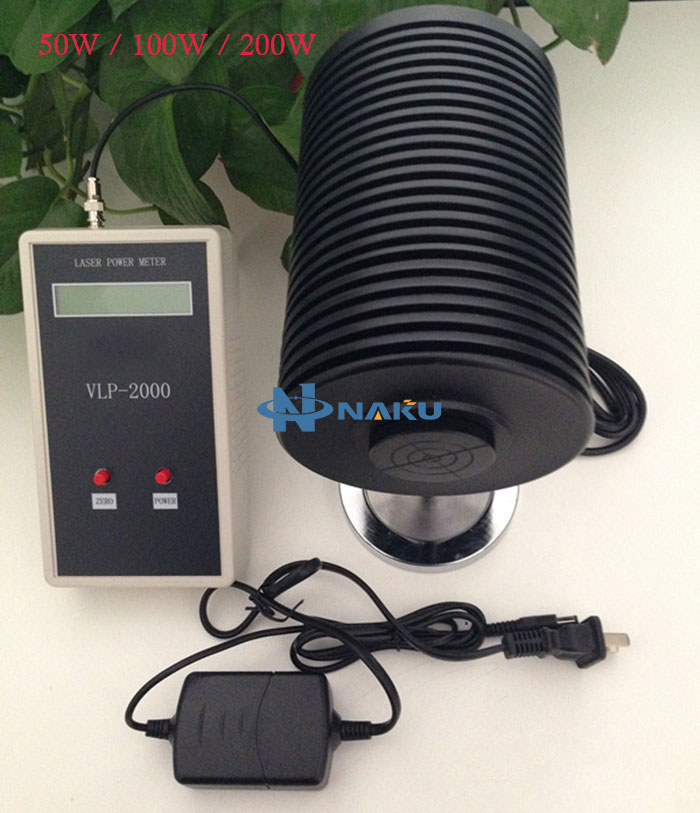

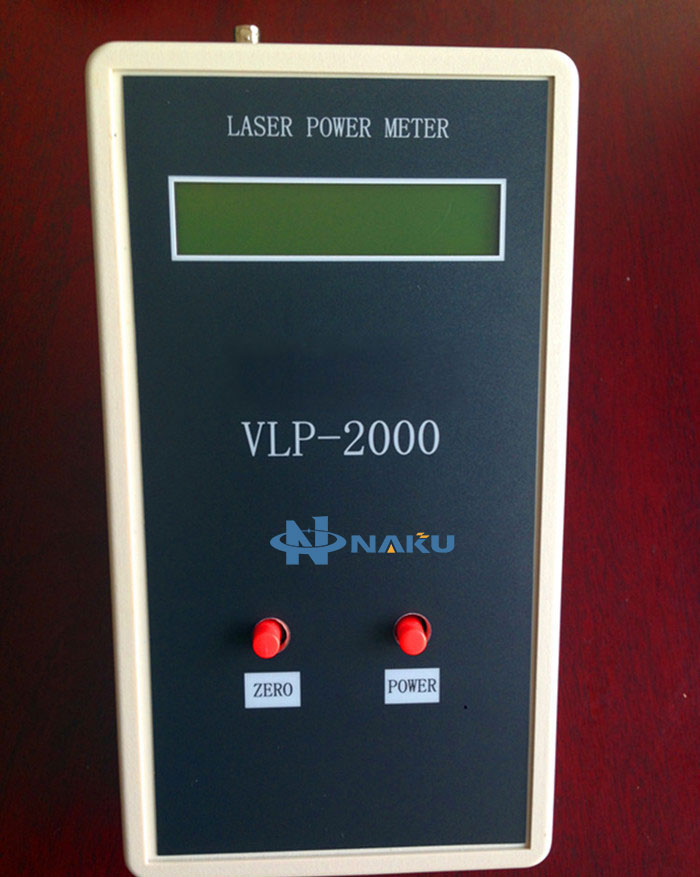

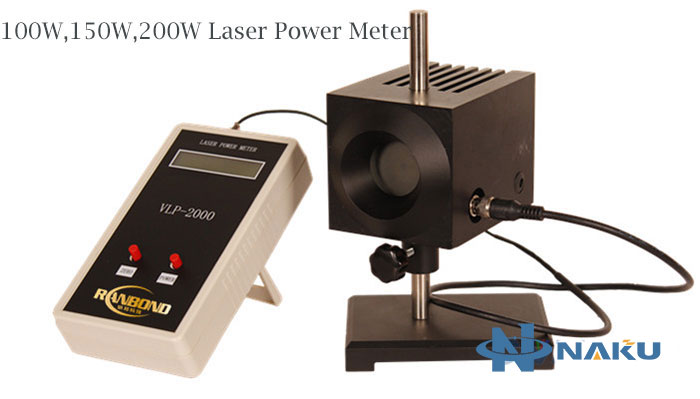

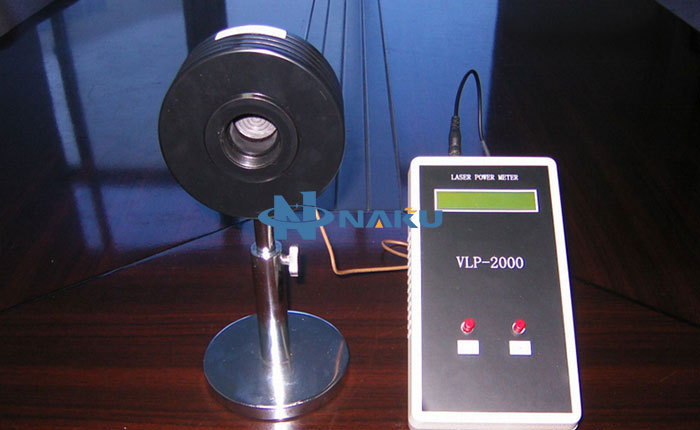

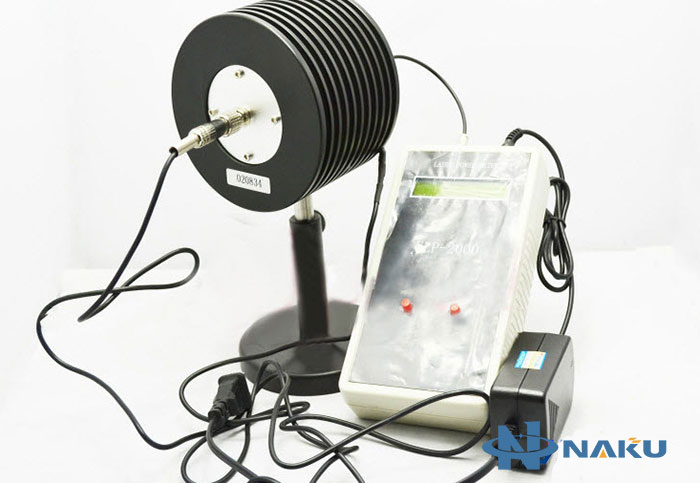

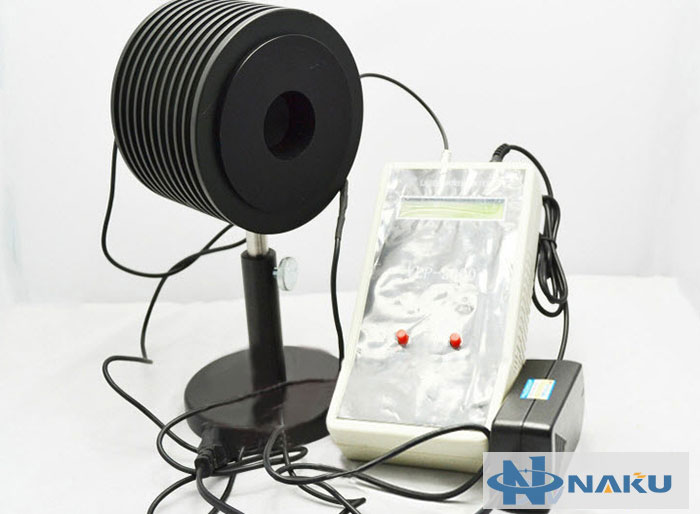

Laser power meter wide Rang 0~200W 180nm~20000nm High accuracy
The power meter is suitable for measuring the CO2 laser, YAG laser, semiconductor lasers, solid-state lasers, laser lights, medical laser and fiber optic light and so on. Error is small, high accuracy!
Wide spectrum response range

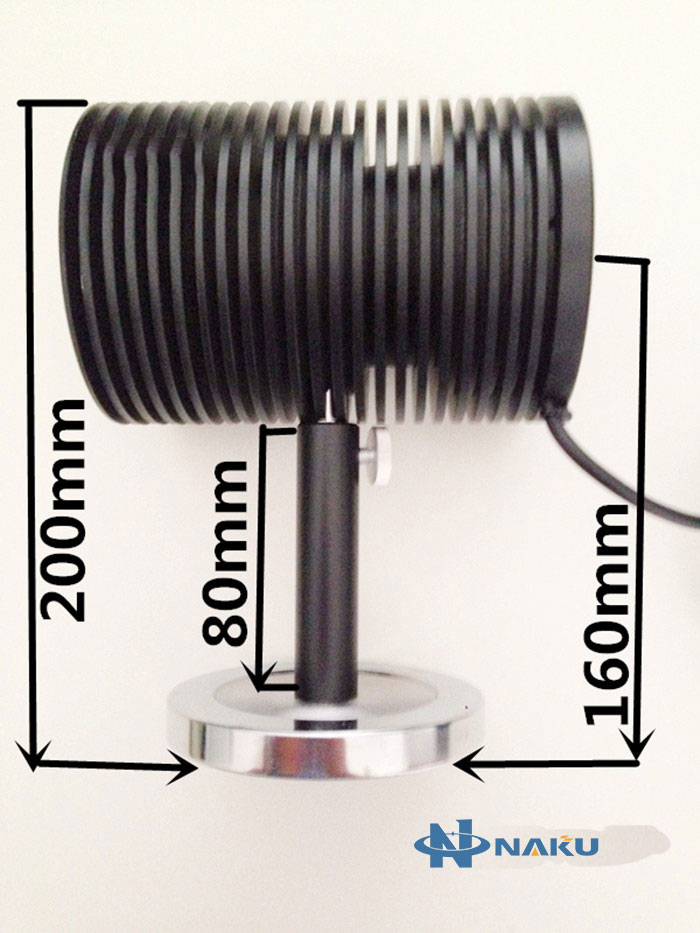

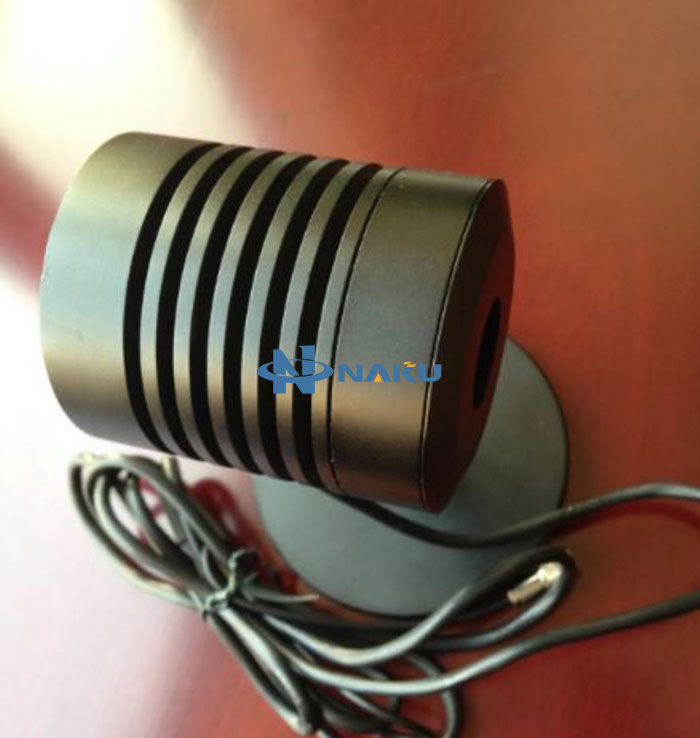

Small size detector
Simple operation ,digital display
Accuracy table:
Measurement range(0~20mW): 0.001mW
Measurement range(0~200mW/0~1W): 0.01mW
Measurement range(0~2W/0~200W): 0.1mW
[SPECIFICATIONS]
Applicability: CW laser/Pulsed laser
Spectrum response range: 180nm~20000nm

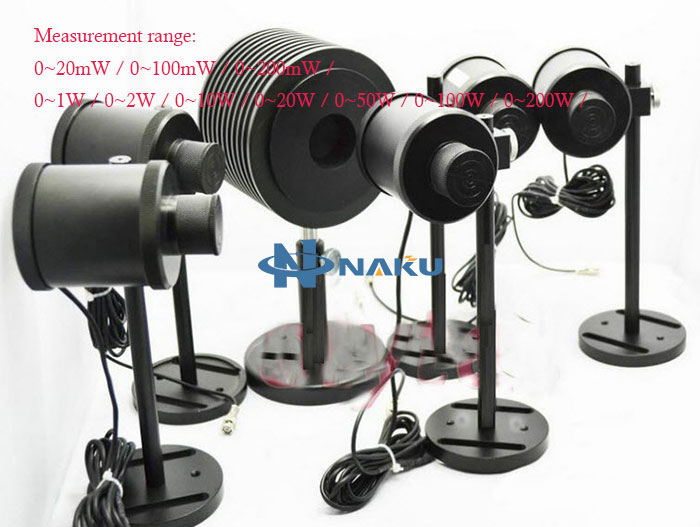

Measurement range: 0~20mW / 0~100mW / 0~200mW / 0~1W / 0~2W / 0~10W / 0~20W / 0~50W / 0~100W / 0~200W /(choose)

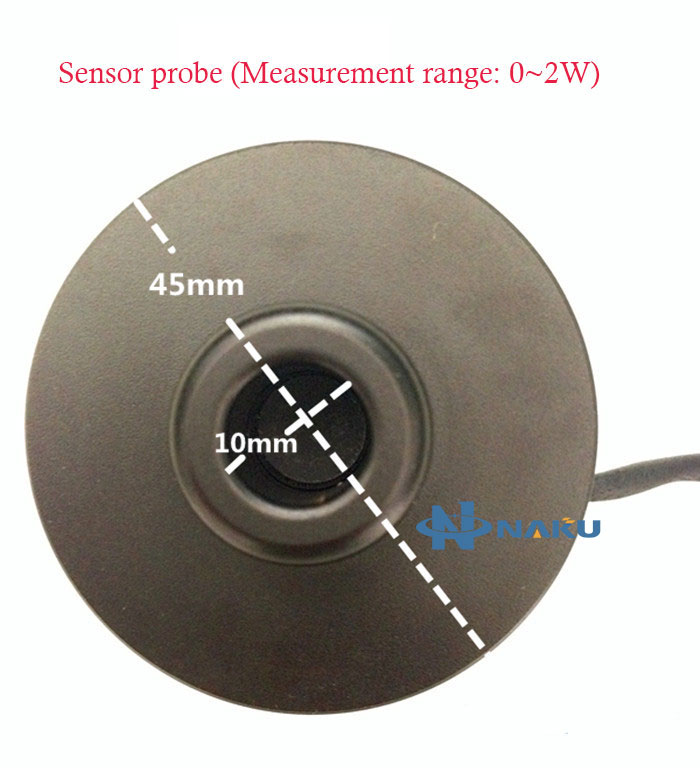

Sensitive area of detector: Φ10mm ~ Φ18mm
Max permitted power density 200W
Measurement error: <±1% ~ <±5%
Display precision: 19.999
Input voltage: AC 110~220V 50Hz
Power consumption: <10W
Warranty Time: 1 year
