鲍威尔镜片绿色激光 线形 520nm 50mW 均匀线激光定位

鲍威尔镜片绿色激光 线形 520nm 50mW 均匀线激光定位
Powell lens Green laser line 520nm 50mw uniform line laser positioning

SPECIFICATIONS:
Name: 520nm 50mw Green laser module Line adjustable output power and line width
Output Wavelength: 520nm
Output Power: 50mW (Can be customized)
Laser Shape: Line
Laser type: Visible laser, Green laser
Outside Color: Black

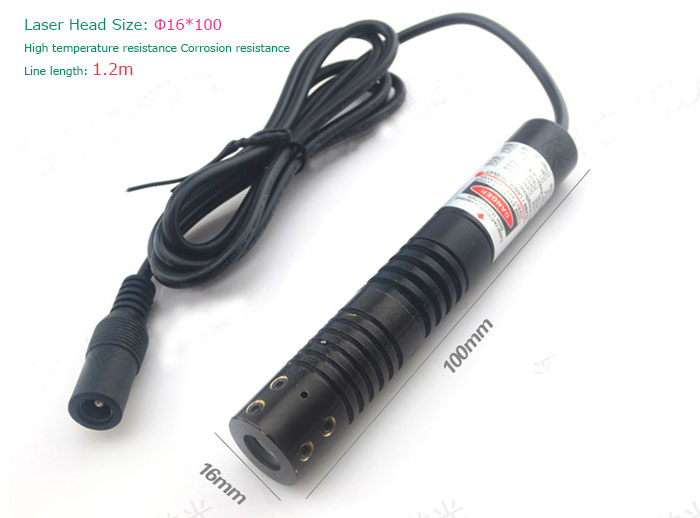

Size: φ16*100mm
Current: ≤400mA
Operating Voltage:  DC 1-3V

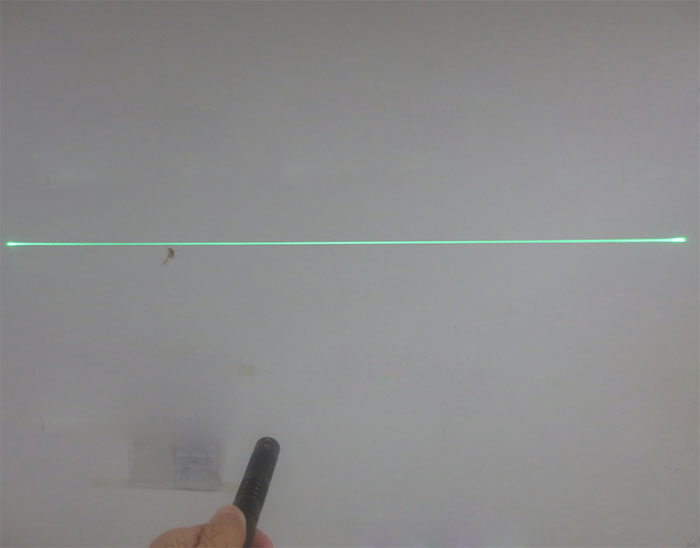

Spot pattern: uniform line

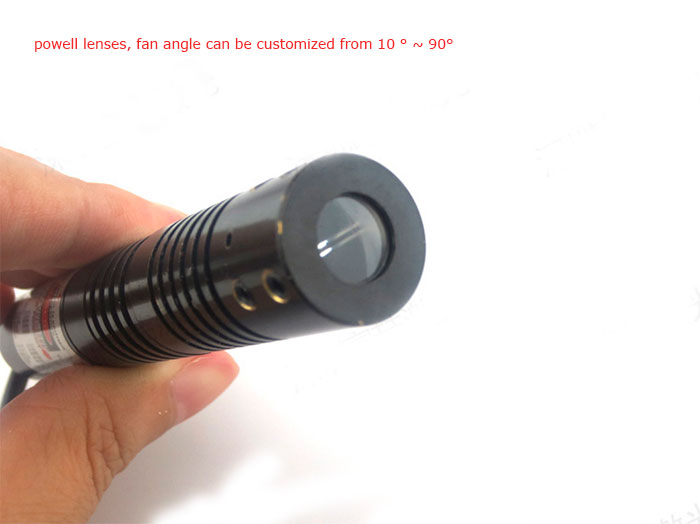

Optical lens: Powell lens
Fan angle: 10° ~90°(can be customized)

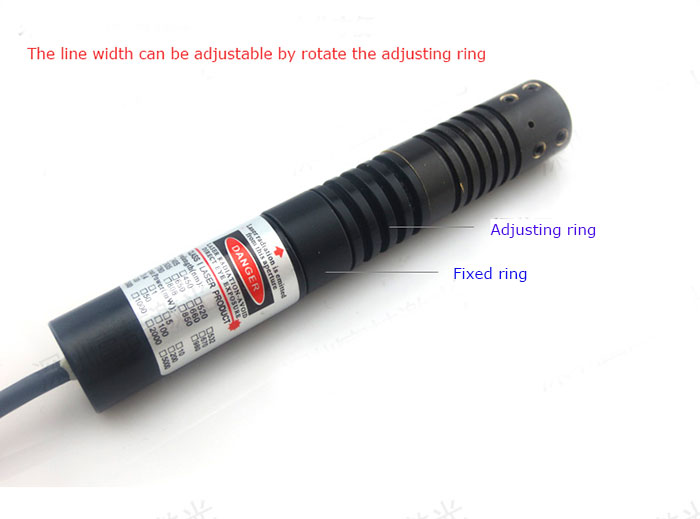

Line width: 0.5mm ~ 30mm (adjustable)
Operating Temperature: -10--50℃
Storage Temperature: -40℃~80℃
Line Length: 1.2m (can be customized)
Warranty: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway


Package includes:
1* Green laser module;
1* Laser stand;

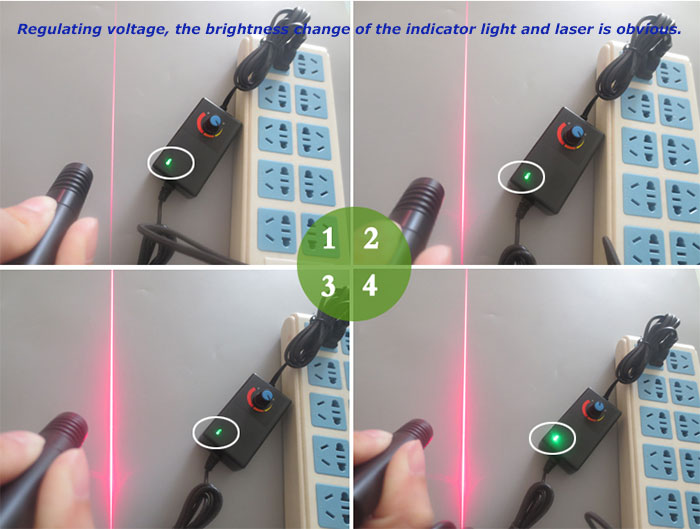

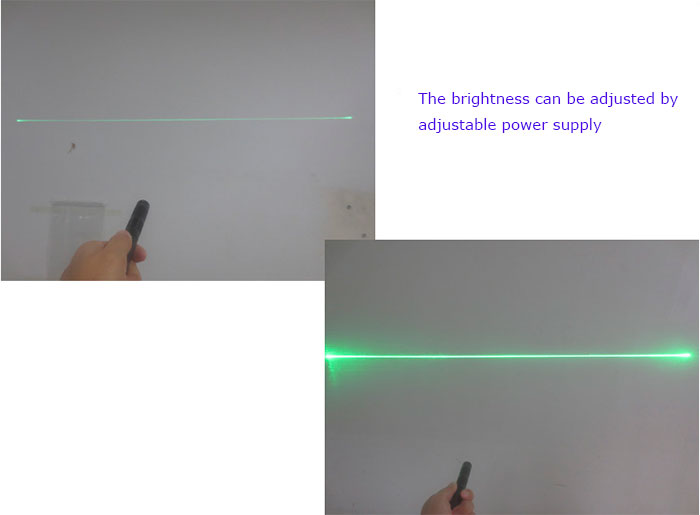

1* Adjustable Power supply;

This is the upgraded version of laser spot, the advantages of this laser module are:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7, Tail power line using high temperature line, good toughness and corrosion resistance.



520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module

520nm 50mw Line green laser module
