2016 520nm 50mw green line laser module 360° Full range Adjustable thickness

SPECIFICATIONS:
Name: 2016 520nm 50mw green line laser module 360° Full range Adjustable thickness
Output Wavelength: 520nm
Output Power: 50mW (Can be customized)

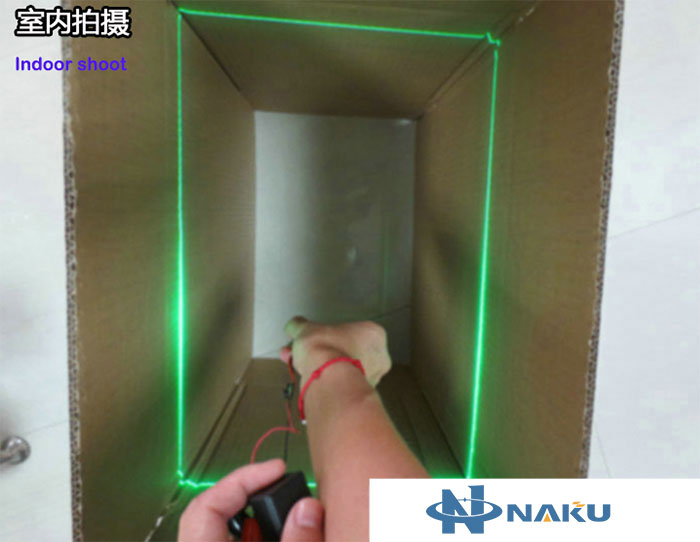

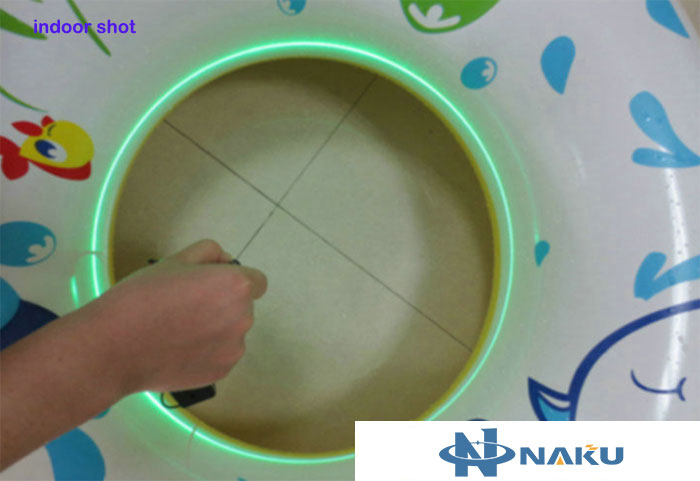

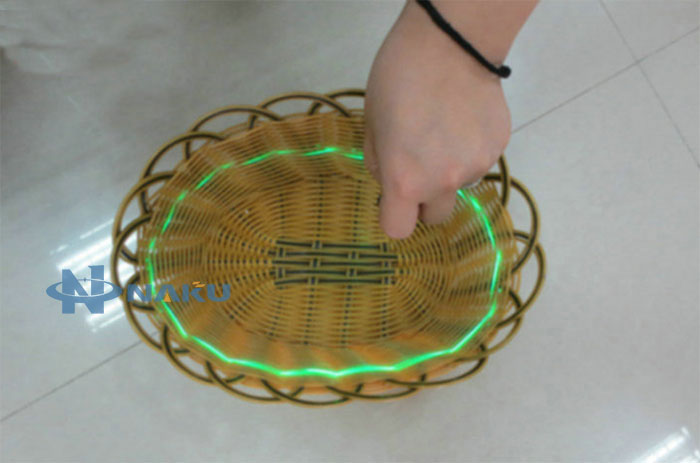

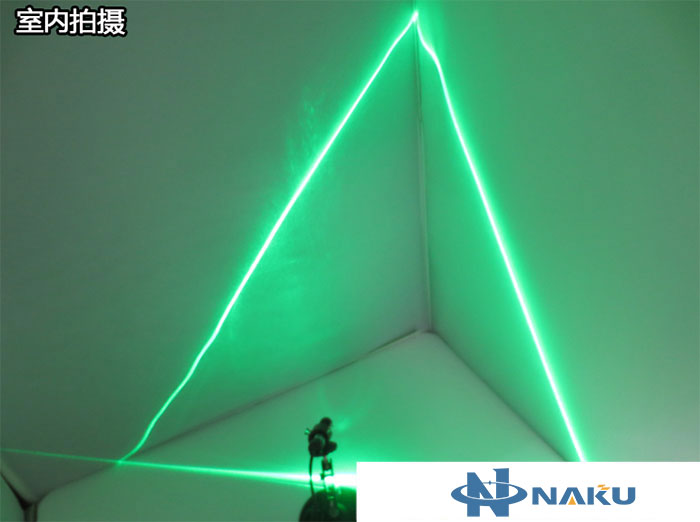

Laser Shape: 360° Full range Line
Laser type: Visible laser, Green laser
Outside Color: Black
Size: φ16*70mm
Current: ≤400mA
Operating Voltage: DC 2.8-5.2
Spot pattern: uniform line

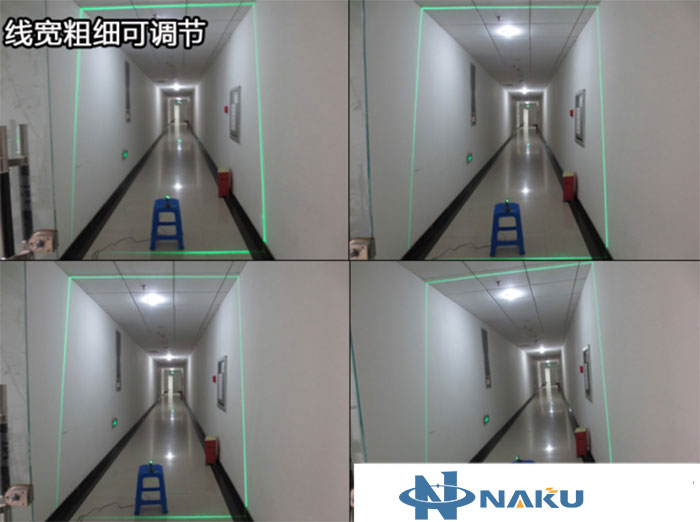

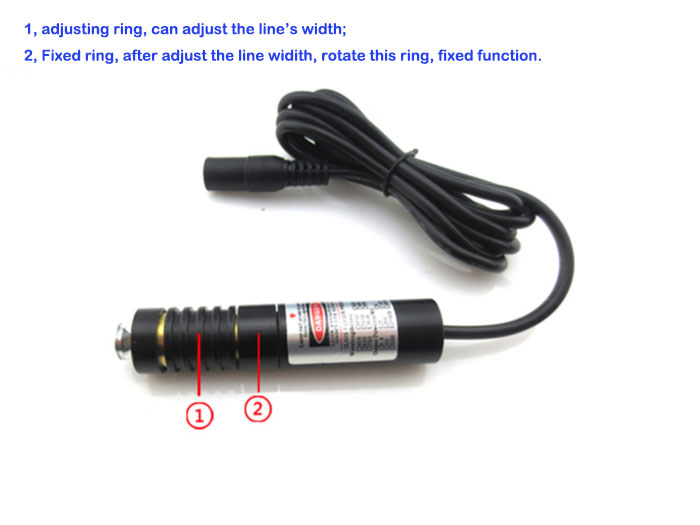

Line width: 0.5mm ~ 30mm (adjustable)
Operating Temperature: -10--50℃
Storage Temperature: -40℃~80℃
Line Length: 1.2m (can be customized)
Warranty: 12 Months Factory warranty

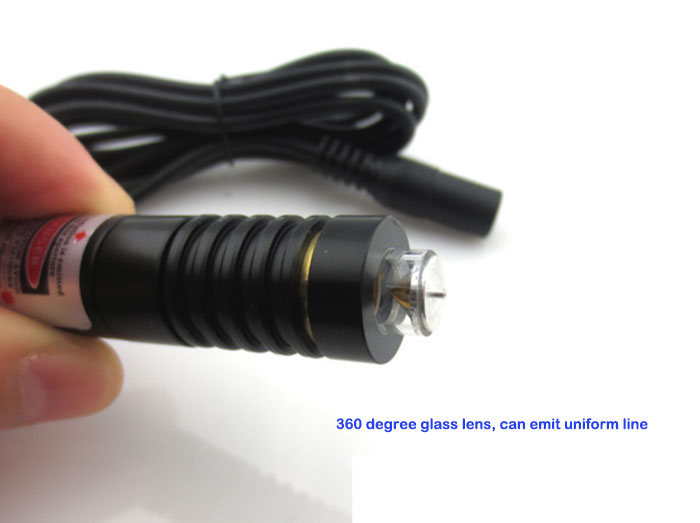

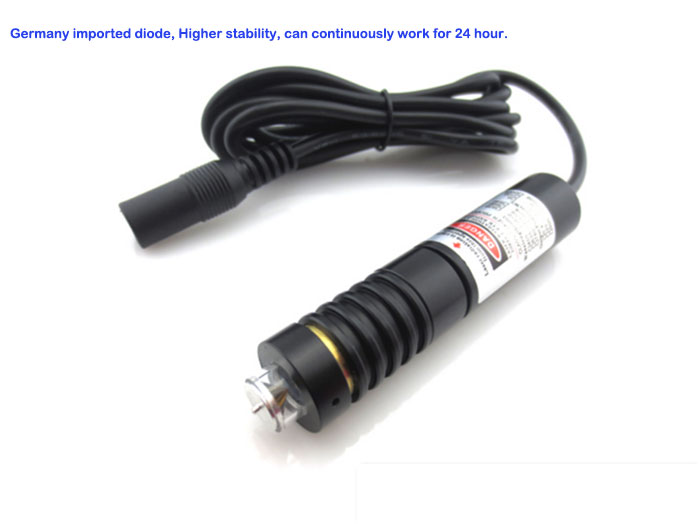

Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway

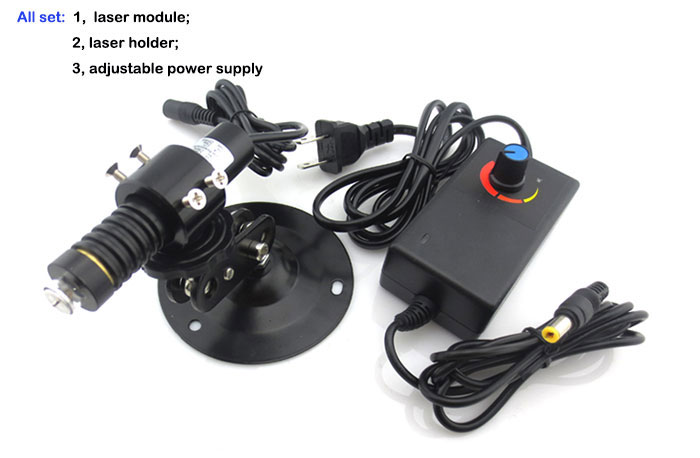

Package includes:
1* Green laser module;
1* Laser stand;
1* Adjustable power supply;
