光纤耦合激光器 450nm 70mW SMA905,FC/PC,FC/APC

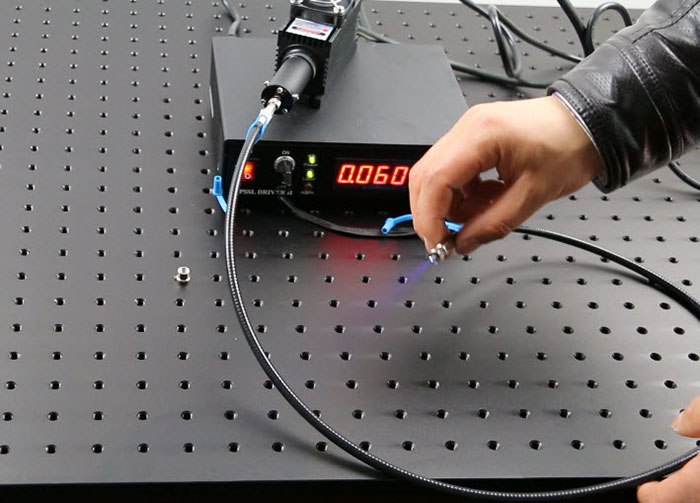

Fiber coupled laser 450nm 70mw interface SMA905,FC/PC or FC/APC
It's a Pluggable fiber , easy to replace.
If you need other output power or custom needs, please contact us.
Fiber-coupled laser features:
1. The length of fiber can be customized.
2. You can change the direction of the laser beam, it can be applied to a variety of occasions venue.
3. Laser spot is circular, uniform illumination.
4. The laser fiber can be installed at the exit of the collimator lens care area to adjust the size, large or small.
Note:
1. It's made-to-order products, we need 3~10 working days to produce it.
2. The output power/fiber diameter/fiber length can be customized.
3. The marked output power is before coupling, coupling efficiency is about 80%~90%.
[Specifications]
Product Name: 450nm fiber coupled laser with Power Supply
Product Include: Laser system with fiber + Controller + Power source
Output Wavelength: 450nm
Output Power: 70mw
Fiber diameter: 400um(Default) -- (100um/200um/400um/600um/800um/1000um -- Can be customized)
Fiber length: 1m(default)--(Max 20m,can be customized)
Interface type: FC/PC (default) -- FC/APC, SMA905 (If you need FC/APC or SMA905 interface please leave a comment when you place the order.)
Modulation: 0~30khz Analog or TTL
Spatial mode: near TEM01
Operating mode: CW or Modulation
Power Stability: <±5% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam Quality (M2): <2
Optimum Operating Temperature: 20~30℃
Storage Temperature: 10~50℃
MTTF(mean time to failure): 10,000 hrs
Lead Time: 3~10 workingdays! Custom product available
Laser head dimensions: 155(L)x77(W)x60(H) mm
Power Supply: Standard type power supply / Lab Adjustable power supply (Choose)
Power Supply #1: Standard type power supply 100(L)x70(W)x55(H)mm
Power Supply #2: Lab Adjustable power supply 178(L)x197(W)x84(H)mm
Warranty: 1 Year
[APPLICATIONS]
Thermal printing
Material Inspection
Scanning Biochemistry
Lidar

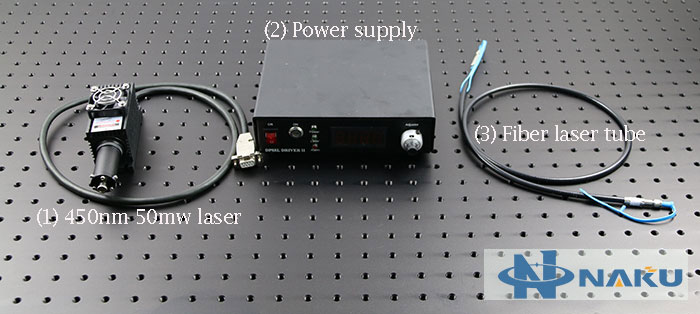

[Package include]
1 x 450nm fiber laser
1 x Laser power supply
