圆形激光模组 520nm 50mW 绿色激光模组 圆形激光束
Circle laser module 520nm 50mw green laser module circle laser beam
[FEATURES]
1. It's a circel laser module.
2. Focus adjustable. You can adjust the width of the laser beam(>0.8mm).
3. It's 520nm, not 532nm laser, more Clear, bright and soft non-glare.

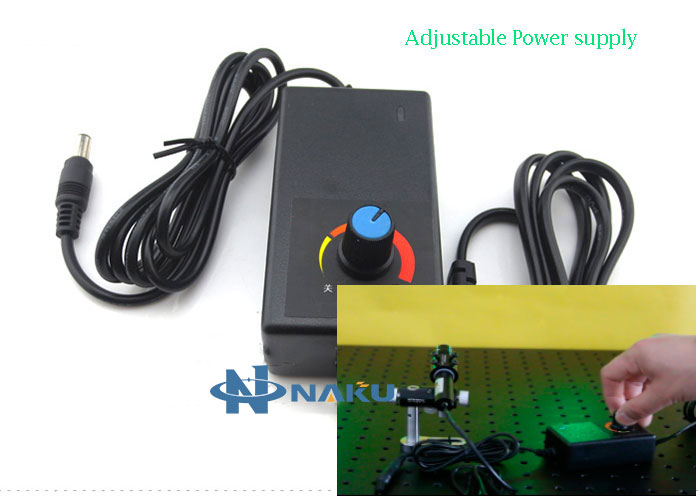

4. With adjustable power supply,You can adjust the brightness of the laser.
5. The diameter of the circle and the distance of the radiation is about 1:1
Example:
(1): Irradiation distance is 1 meter, the diameter of the circle laser is 1 meter.
(2): Irradiation distance is 5 meters, the diameter of the circle laser is 5 meters.
[SPECIFICATIONS]
Output wavelength: 520nm
Output power: Max 50mw(Adjustable)
Working voltage: DC 2.8~5.2 V
Operation current: <400mA
Laser Shape: Circle
Spectral line width: >0.8mm (Adjustable)
Size: 16 * 100mm (Accept customization)
Working distance: 0~10 meters
Operation mode: Continuous Wave (CW)
Incentive Mode: Electropumping Laser
Working medium: Semiconductor laser
[PACKAGE INCLUDES]
1 x 520nm circle laser module
1 x Power Supply
