200mW 660nm 红光激光模组/TTL调制/12V 点状/线/十字





200mW 660nm 红光激光模组/TTL调制/12V 点状/线/十字

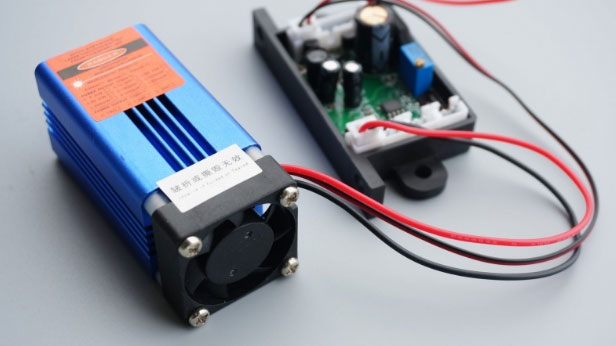

Laser module Introduction:
Such products can be widely used in all kinds of stage laser light, with TTL modulation, can work long hours, the real industrial grade laser. Can provide customers with optoelectronic solutions, designed to meet customer needs of the laser module.

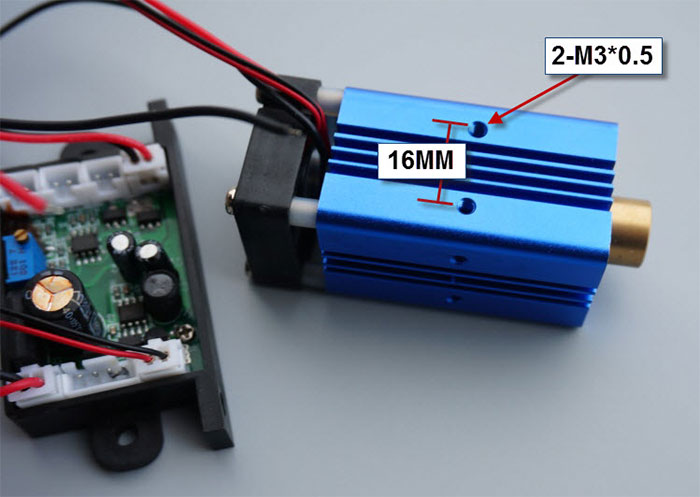

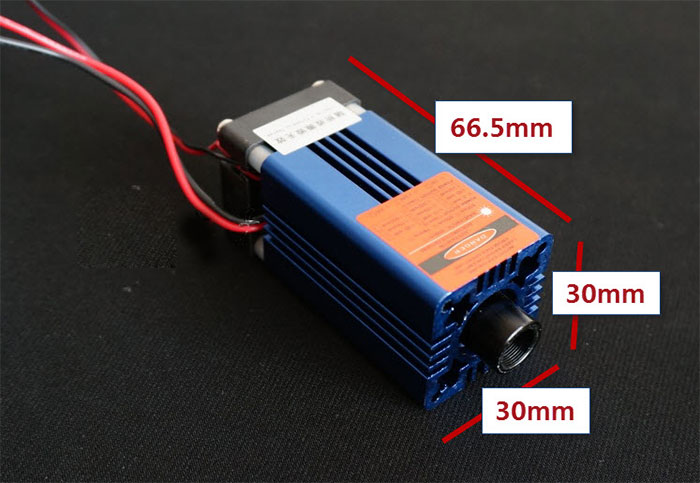

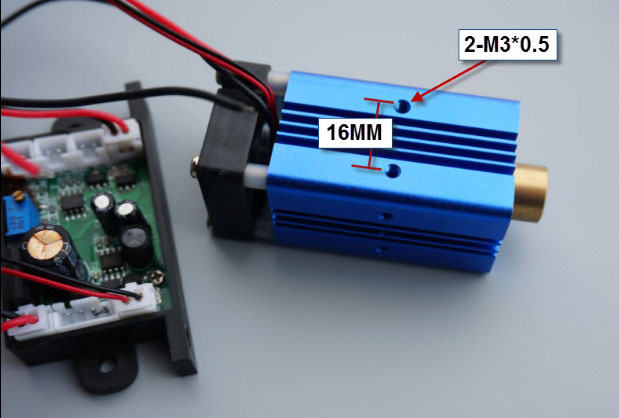

Host size:  L66.5mm* W30mm* H30mm
Circuit size:  L72mm* W35.5mm* H20mm
Output wavelength: 658 NM
Output power: 100mW/200mW (optional)
Cooling mode: aluminum cooling

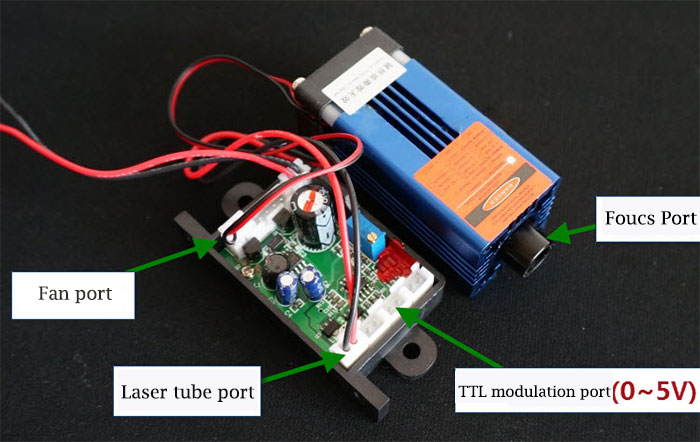

Modulation frequency: Can modulate
Job characteristics: continuous work
Surface treatment: Blue
Shell material: Aluminum
Circuit control: 12V buck constant current
Reverse protection: with automatic recognition of positive and negative poles

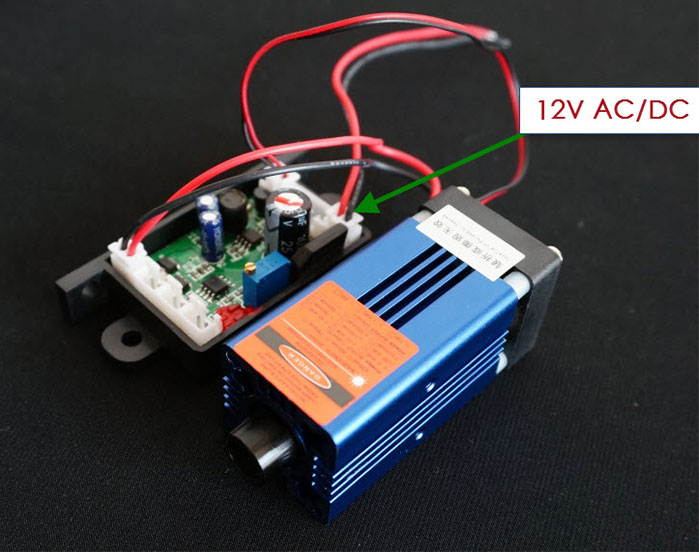

Working voltage: DC=12V
Working current: I<300mA
Preheating time: no
Working temperature: -10°C~ 40°C
Storage temperature: -10°C~ 40°C

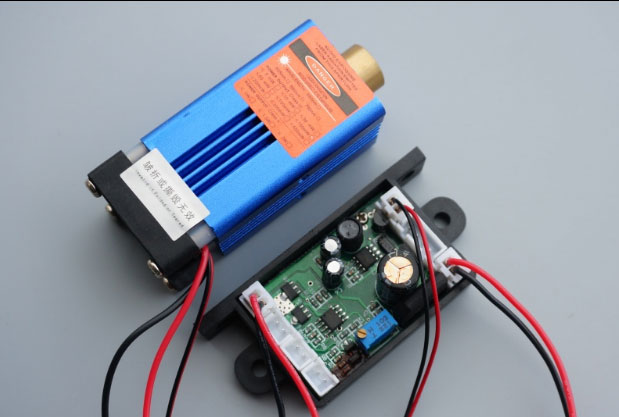

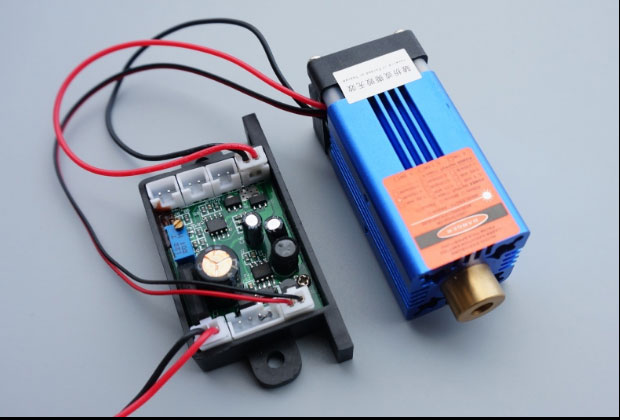

Structure features: laser tube + lens + heat sink
Note: power supply out of the housing
