655nm/660nm 100mW~4000mW光纤耦合激光器带电源 可调制
655nm/660nm 100mw~4000mW fiber coupled laser with power supply support Modulation
[Specifications]
Product Name: 655nm/660nm fiber coupled laser
Output Wavelength: 655nm(Default) / 660nm
Spatial mode: Multi mode
Output Power: 100mw~4000mW(choose)
Fiber diameter: 200um(Default) -- (100um/200um/400um/600um/800um/1000um -- Can be customized)
Interface type: FC/PC (default) (FC/APC, SMA905)
The polarization: TM
Directional stability: <0.05 mrad
Beam Diameter: <8mm
Beam Divergence Angle: <3mrad
Power Stability: <3% per 2 hrs
Temperature Stabilizing: TEC
Warm Up Time: <2 minute
Laser head dimensions: 100(L)x40(W)x50(H)mm3
Warranty: 1 Year
[Packing list]
1 x 655nm / 660nm Red laser Head
1 x Power supply
1 x Fiber laser tube
Note: The marked output power is before coupling, coupling efficiency is about 80%~90%.

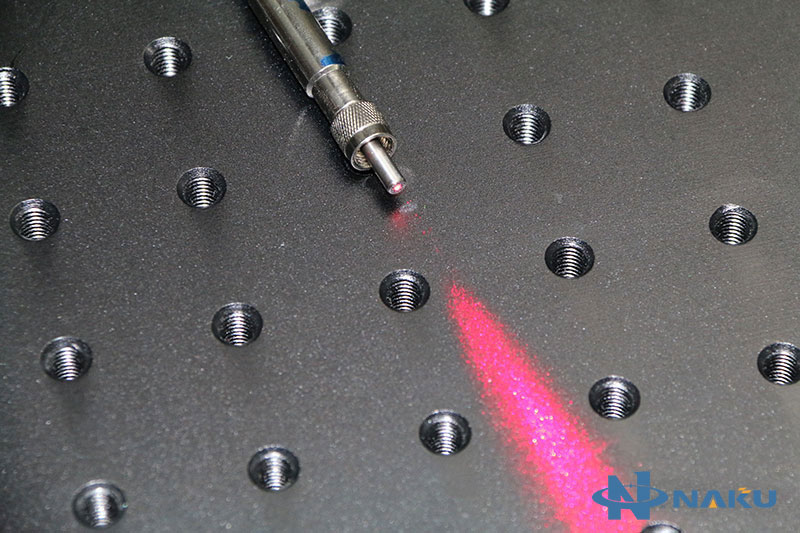

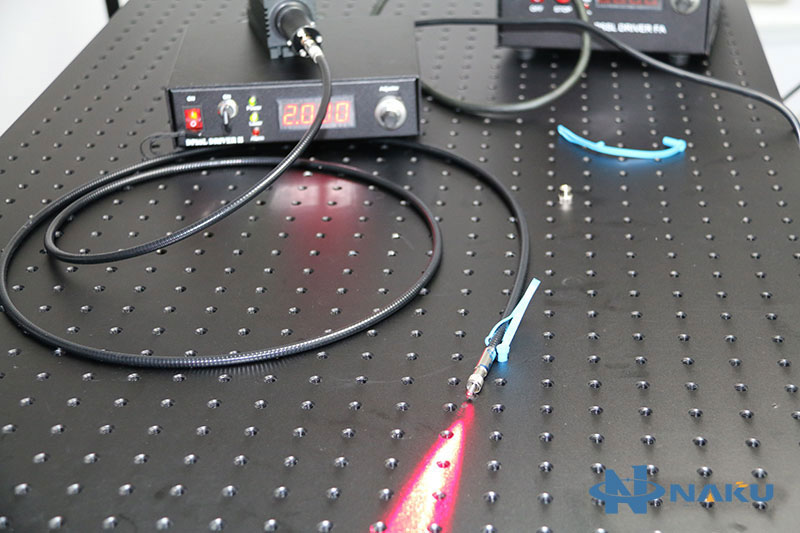

Fiber coupled laser 660nm 1200mw red laser with 400um fiber
