589nm DPSS激光 输出功率200~250mW可调 黄色光源 用于科研
589nm dpss laser output power 200~250mw adjustable Yellow light source for scientific research

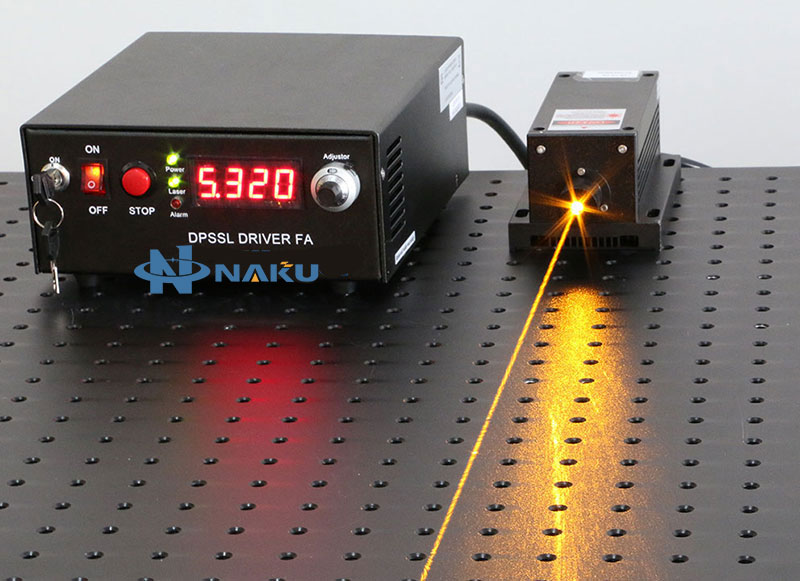

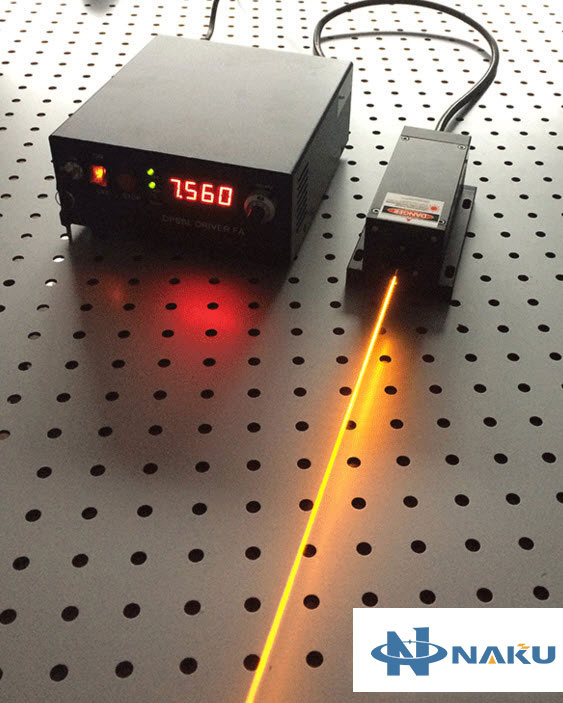

This 589nm Yellow dpss laser include a digital power supply.
this power supply include a current adjustor knob, by adjusting the current you can adjust the laser's output power.
If you need a fiber coupled laser(>50μm) for this dpss laser, please contact us.
[SPECIFICATIONS]

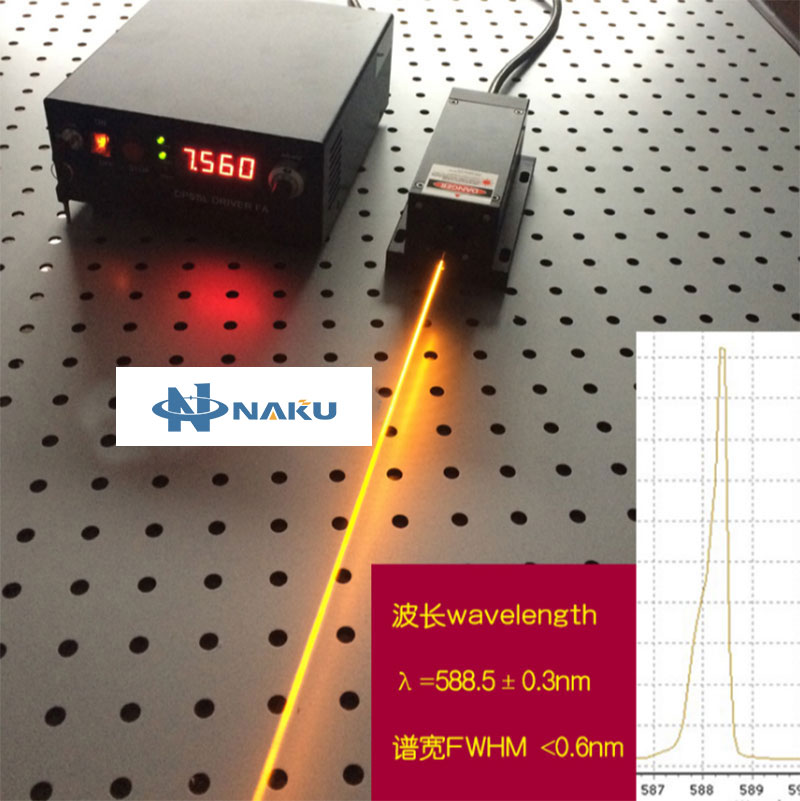

Output Wavelength: 589nm
Spatial Mode: near TEM00
Output Power: 200mW/250mw(choose)
Operation Mode: CW or Modulation
Modulation: Analog (Default)/TTL modulation 0~30Khz (choose)
Polarization: >100:1
Beam Spot Shape: Circular, aspect ratio<1.1:1
Beam Diameter(1/e2): <3 mm
Beam Divergence: <2 mrad
Beam Height: 29mm
Power Stability: <±5%
Temperature Stabilizing: TEC
Warm Up Time: <5 minutes
Beam Quality (M2): <2
Operating Temperature: 5~40℃
Storage Temperature:0~50℃
MTTF(mean time to failure): 10,000 hrs
Dimensions: 167(L)x77(W)x60(H) mm

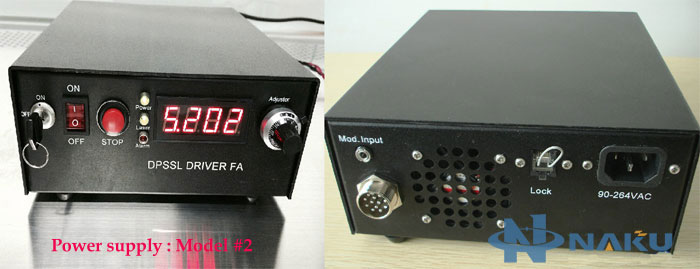

Power Supply: Lab Adjustable power supply 178(W)x197(D)x84(H) mm
[PACKAGE INCLUDES]
1 x 589nm DPSS Laser
1 x Laser Power Supply
