800mW 1W 405nm蓝紫激光/工业激光模组 UV激光 3D打印
800mW 1W 405nm Blue violet laser / industrial laser module UV curing 3D printing
Important note:
This is the maximum power of the current 405nm laser, the laser can work for a long time, and did the life test.
Laser module parameters:
Such products can be widely used in all kinds of stage laser light, with TTL modulation, can work long hours, the real industrial grade laser. Can provide customers with optoelectronic solutions, designed to meet customer needs of the laser module.
Specification parameter:

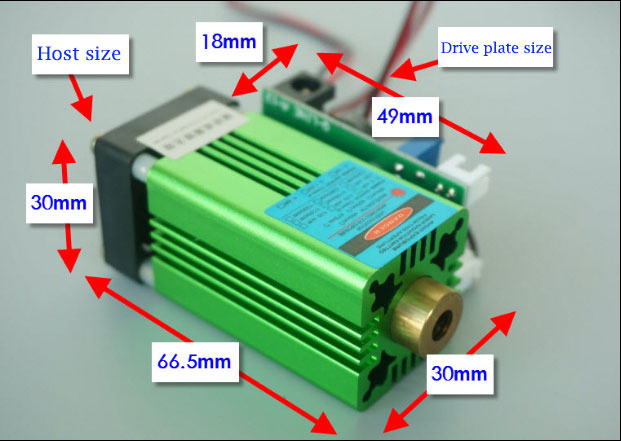

Host size: long 69.5mm* wide 30mm* high 30mm
Output wavelength: 405 nm

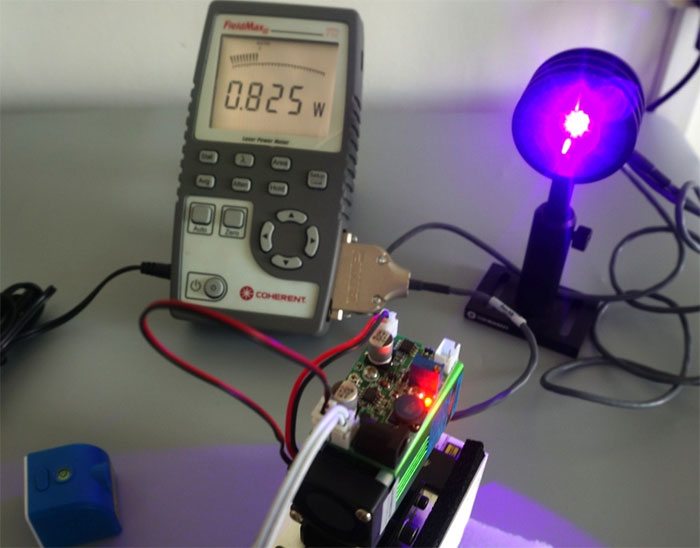

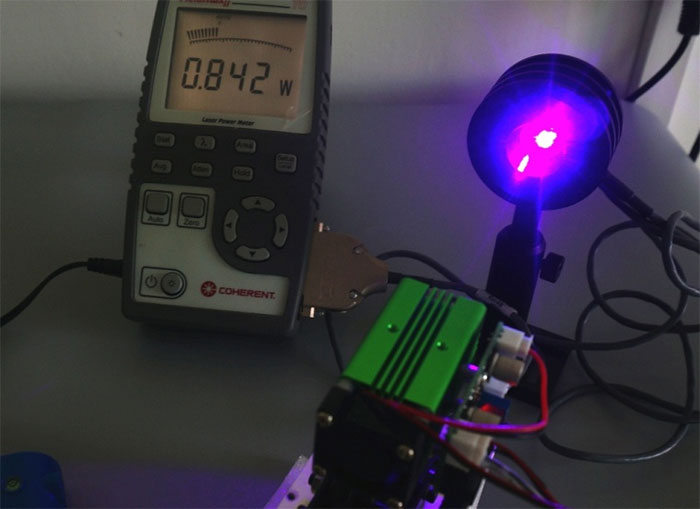

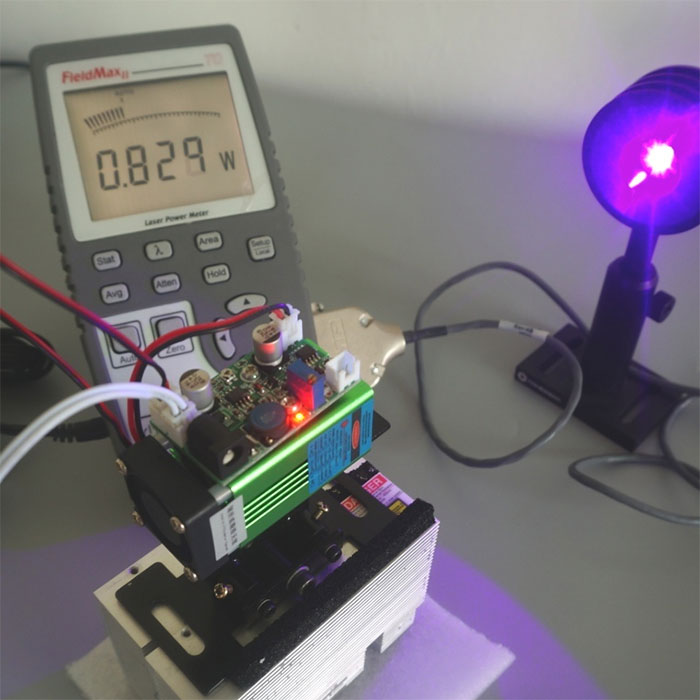

Output power: 800mW

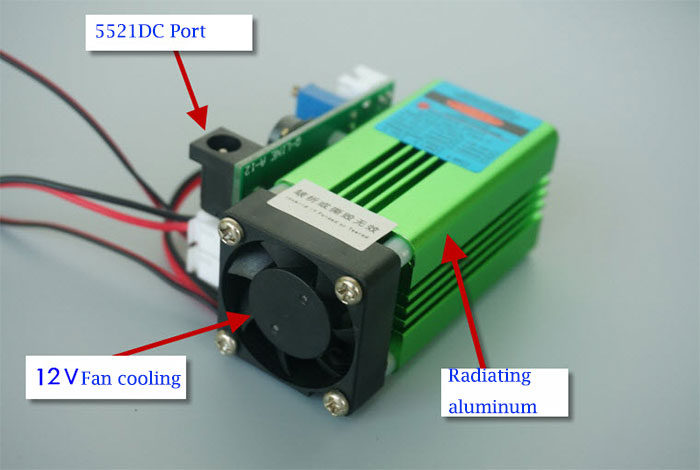

Cooling mode: air cooling

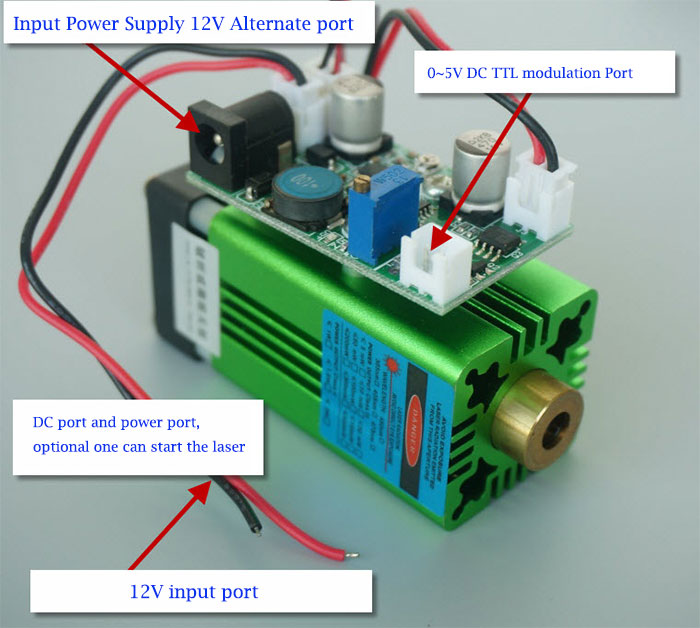

Modulation frequency: TTL 1-20KHz
Modulation voltage: 0-5V
Performance: continuous work
Surface treatment: Green
Shell material: Aluminum
Circuit control: constant current
Reverse protection: with automatic recognition of positive and negative poles
Working voltage: DC=12V
Working current: I<760mA
Preheating time: no
Working temperature: -10°C~+40°C
Storage temperature: -10°C~+40°C

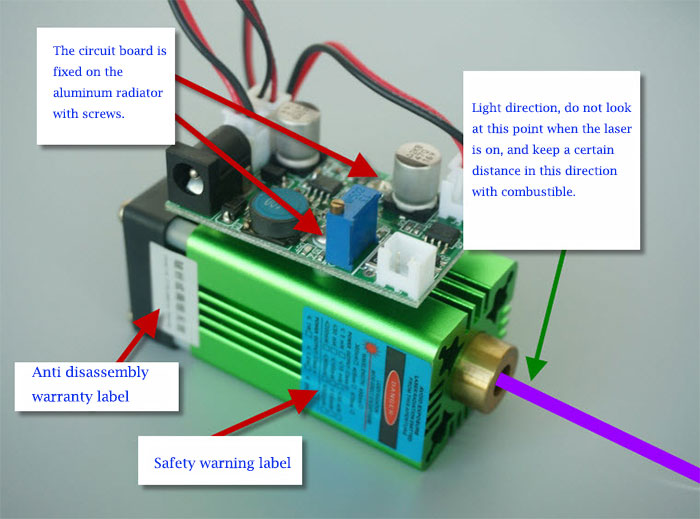

Structure features: laser tube + lens + heat sink
Note: the power supply and the laser head are split type, and the laser head is equipped with fan cooling.
Special note: the input voltage is 12V, the overpressure will cause the circuit and module instant damage, if you have any technical problems, please consult, thank you!
