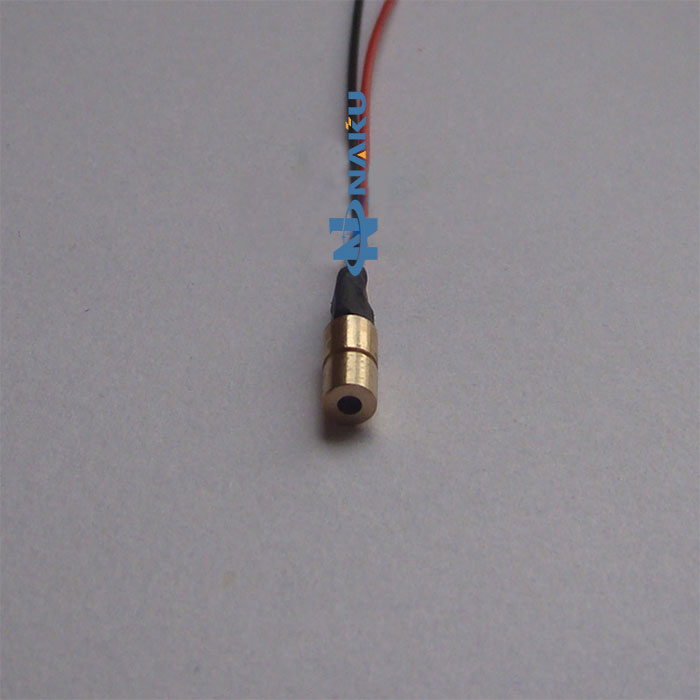

635nm 5mW 红色激光模组 微型激光头 超小尺寸 4*13.7mm
635nm 5mw Red laser module Micro laser head Super Small size 4*13.7mm
Use of red light modules:
1 can be used for positioning by sight;
2 can be used for laser testing tools;
3 can be used for concentric positioning;
4 can be used for medical equipment positioning;
5 can be used for the production of signal equipment;
SPECIFICATIONS:
Name: 635nm Red laser module Focusable Dot
Output Wavelength: 635nm ±5nm
Output Power: <5mw
Laser Shape: Dot
Material: Copper
Range: <100 meters
Surface treatment / color:Brass color
Laser type: Visible laser, Red color
Shape/dimension: < Φ18mm at 10m distance(fixed focus, can be customized to adjustable focus)
Circuit control: APC
Size: Φ4x13.7mm
Operating Voltage: DC=2.8~5.3V
Operating current: I<50mA
Laser Class: IIIa
Operating Temperature: -10°C~40°C
Storage Temperature: -20°C~70°C
Continuous working time: > 5000 hours(Continuous output)
Tail wire: 28# Red and black line, about 120mm long
Warranty: 12 Months Factory warranty
Package includes:
1* Red laser module
