445nm/450nm 3.5W~4W 蓝光 激光模组 带TTL调制(NICHIA NDB7A75)

价格:$1.00  $1.00
节省: 0%




445nm/450nm 3.5W~4W 蓝光 激光模组 带TTL调制(NICHIA NDB7A75)

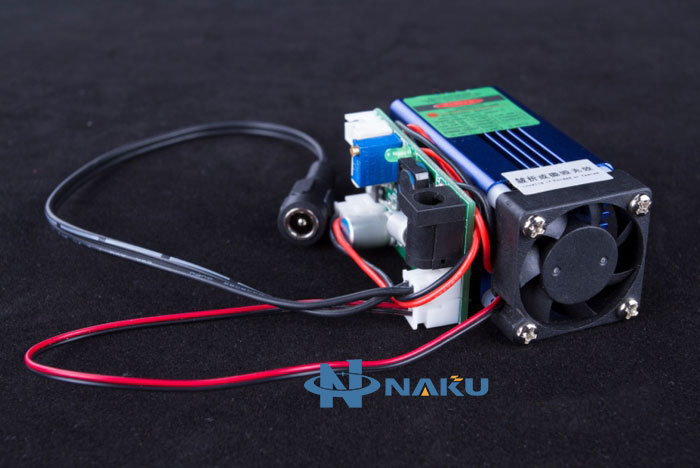

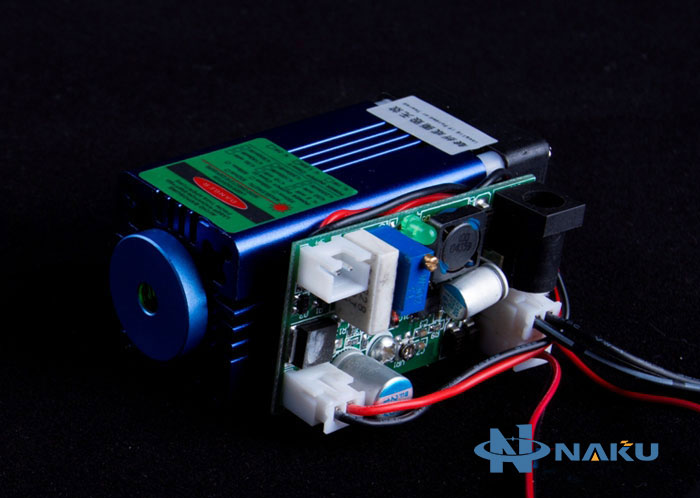

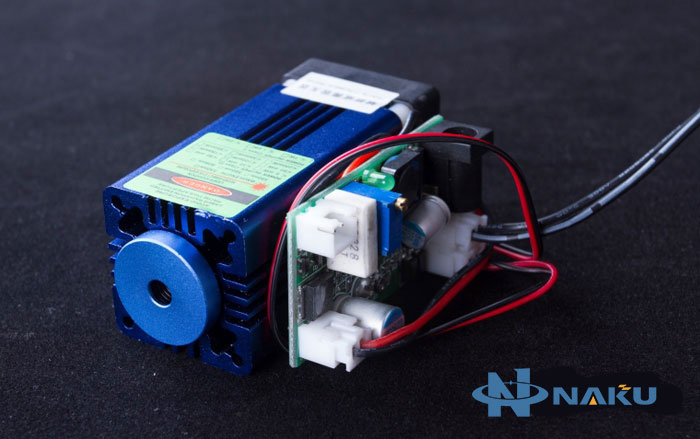

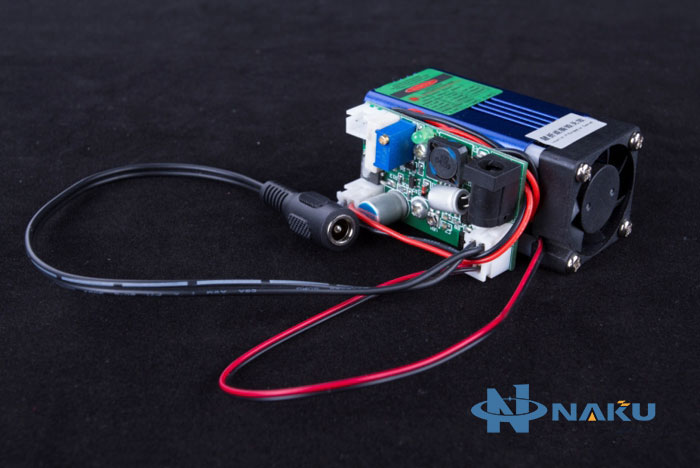

445nm/450nm 3.5w~4w blue laser module with TTL modulation(NICHIA NDB7A75)

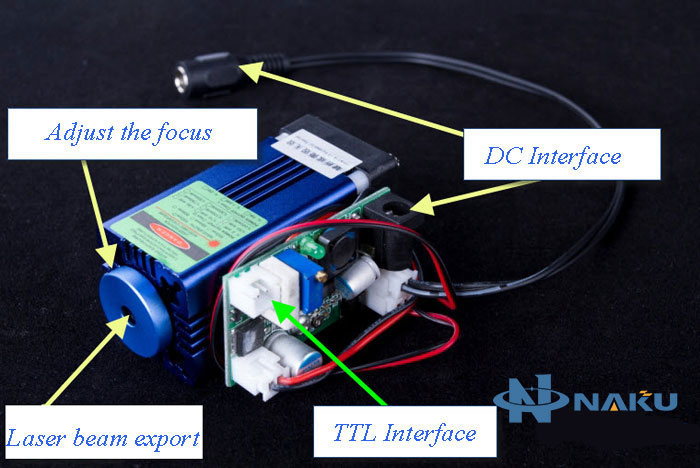

This laser module includes DC interface,but doesn't include the power supply.

This laser module comes with a fan cooling, can be used for a long time.

Circuit boards are fixed together with the host, and more portable than the split module on the market, more reliable!

Laser Module Size: L 69mm * W 30 mm * H 30mm
Laser Module Circuit board Size: L 47.5mm * W 31.5mm * H 16mm
Output Wavelength: 445nm
Output Power: 3500mw / 4000mw (choose)
Heat dissipation method: Aluminum heat sink +  fan
Modulation: TTL modulation
Modulation frequency: 0Hz-20KHz
Output Mode: Continuous Wave
Material: Aluminum Alloy
Circuit control: constant current
Anti Access Protection: Include
Operating Voltage: DC 12V
Operating Current: I<4A
Warm-up Time: < 1 second
Operating Temperature: -10℃~40℃
Storage Temperature: -40℃~40℃
Structural features: laser tube + lens + cooling housing

Package includes:
1 x blue laser module
1 x Power Transformer (choose)

Special note:
The input voltage is 12V, overpressure can cause instant damage of circuits and laser modules.

Power supply(choose/not include): https://www.laser.naku-tech.com/index.php?main_page=product_info&products_id=103
