3IN1 RGB合成光 638nm 520nm 445n m合成白光激光 3W~10W

3IN1 RGB composition of light 638nm 520nm 445nm synthetic white light laser 3W~10

FEATURES:
All diode RGB laser
Compact size
Long lifetime
High reliability

APPLICATIONS:
Laser show
Display
Lighting

[Specifications]
Product Name: RGB laser 638nm 520nm 445nm synthetic white light laser
Wavelength: 638+520+445/450/455/465/470 +/-4 nm
Spatial Mode: Multimode

Coherence length： about 5mm

Output Power:   RGB-3W/5W:  R: 638nm 1W/G: 520nm 1W/B:4--nm 1W~3W

                          RGB-6W/10W: R: 638nm 2W/G: 520nm 2W/B:4--nm 2W~6W

                          RGB-10W/14W: R: 638nm 4W/G: 520nm 4W/B:4--nm 2W~6W
Operation Mode: CW or Modulation
Beam Height: 34mm
Beam Size: 5mm(3W/5W); 6mm(6W/10W); 7mm(10W/14W)
Beam Divergence(full angle): <1.5mrad
Power Stability: <3% per 4 hrs
Warm Up Time: <1 minute
MTTF: 10,000 hrs
Laser head dimensions:
                     119.6(L)x89.6(W)x50.5(H)mm3--RGB-3W/5W
                     166(L)x120(W)x50.5(H)mm3--RGB-6W/10W
                     185(L)x128(W)x50.5(H)mm3--RGB-10W/14W
Power Supply:    A. OEM type
                               Driver: 142(L)x59(W)x38(H)mm3
                               PSU: 115x55x30mm3, 85~265V 50/60Hz input
                           C. Adjustable type

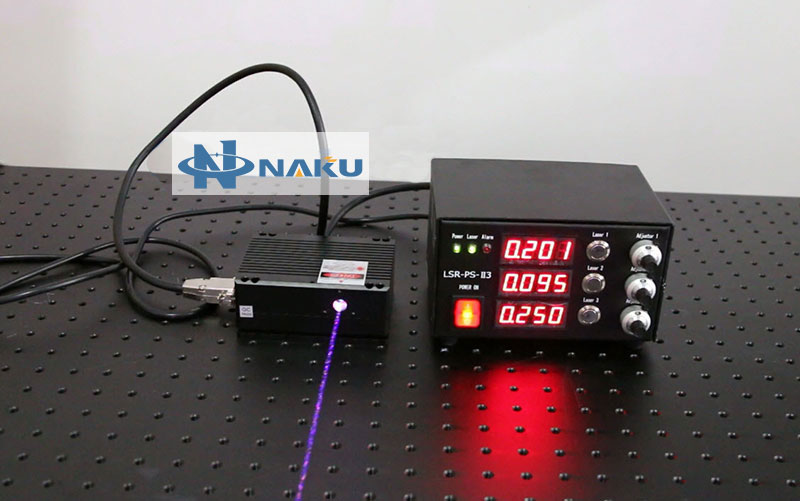

                               LSR-PS-II3:  Three-channel ON/OFF control and Adjustor
                               85~265V 50/60Hz input
Modulation: 0~30khz Analog or TTL

Note:
This size is for reference only. The size of the latest model may changed.
If there is any requirement for size, please contact us get latest size.
