带中心点的明亮方形 红色/绿色/蓝色 激光形状可定制

价格:$1.00

(最新的价格,请联系我们.)

请选择:



购买数量:


带中心点的明亮方形 红色/绿色/蓝色 激光形状可定制

Bright square with center point effect Red/Green/Blue Effect can be customized

Advantage:
1, ultra high brightness indoor and outdoor general;
2, the light is bright and soft and not dazzling;
3 square, the line width is adjustable to meet different application requirements;
4, shell plating aluminum insulation paint can fully heat dissipation and shockproof and antistatic;
5, imported laser diode direct light-emitting stability is particularly high open all day 24 hours.

Lens angle: 33.5 degrees
At 50cm distance:  Square side length is 30.1cm / Square diagonal length is 42.5cm
At 100cm distance: Square side length is 60.2cm / Square diagonal length is 85cm
At 150cm distance: Square side length is 90.3cm / Square diagonal length is 127.5cm


Installation height 0m~5m;

Output wavelength: 650nm/520nm/450nm (optional)
Core power: 100MW (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

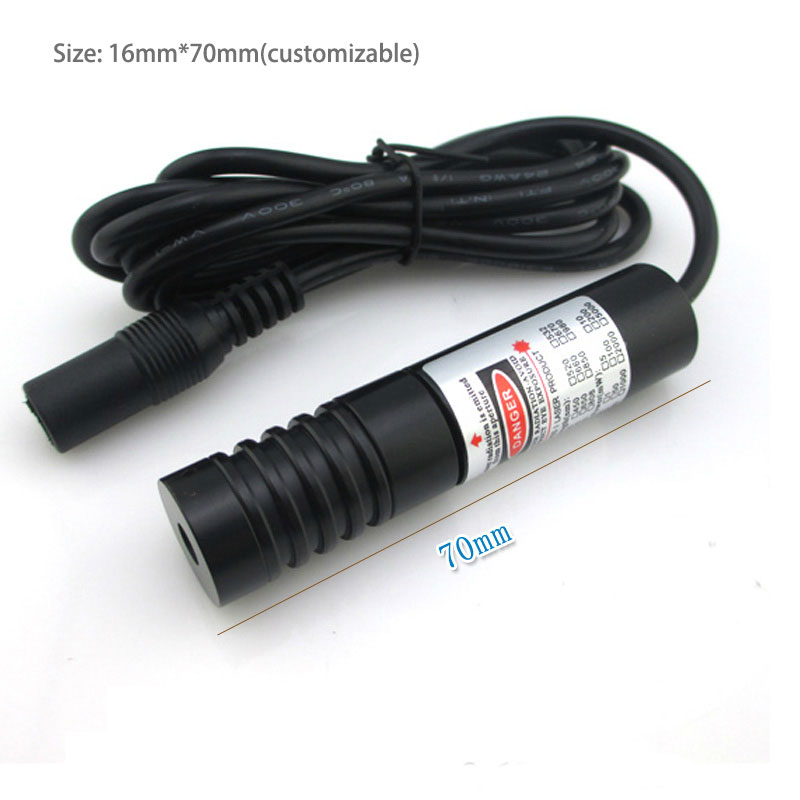

Dimensions: 16*70mm (customizable)

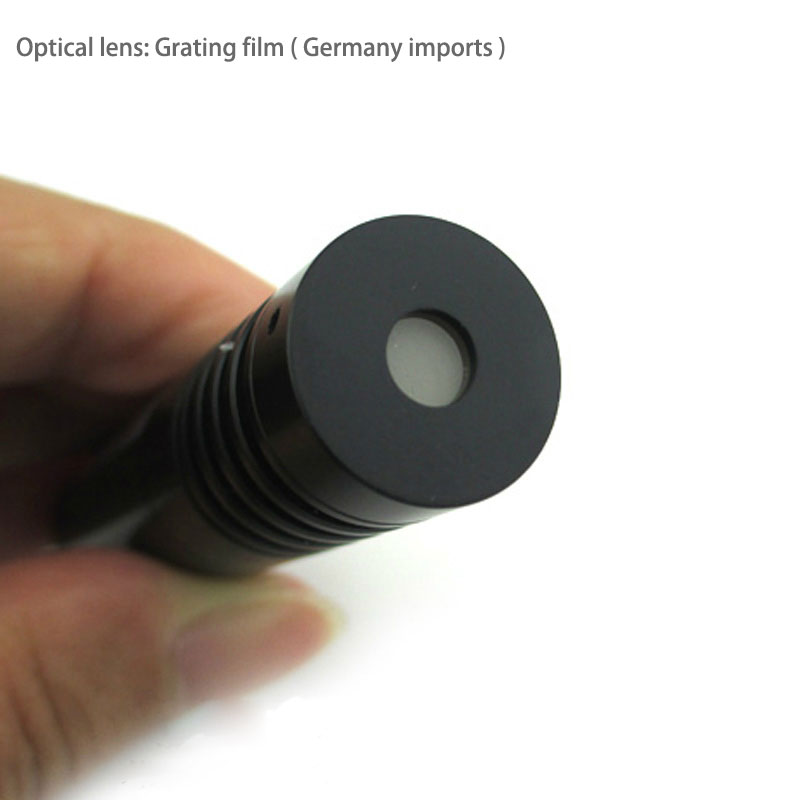

Optical lens: grating (German imports)
