高稳定性 圆形带十字 红色/绿色/蓝色 激光波长和功率可定制

价格:$1.00

(最新的价格,请联系我们.)

请选择:







购买数量:


高稳定性 圆形带十字 红色/绿色/蓝色 激光波长和功率可定制

High stability circle with cross effect red / Green / blue laser wavelength and power can be customized

Advantage:

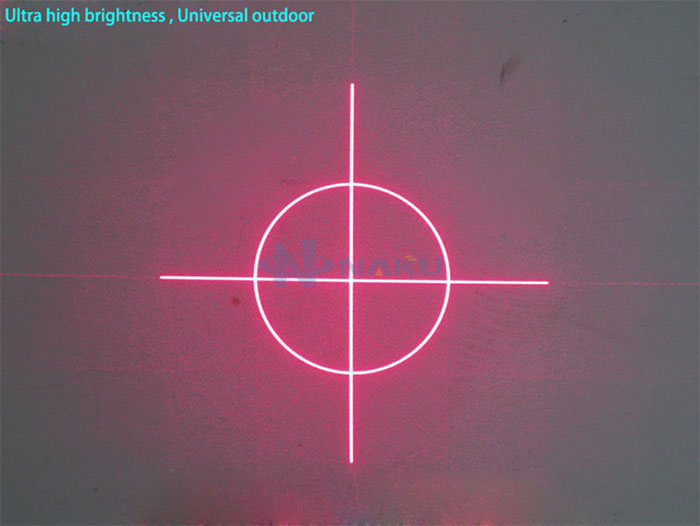

1, ultra high brightness indoor and outdoor general;
2, the light is bright and soft and not dazzling;
3, the line width is adjustable to meet different application requirements;
4, shell plating aluminum insulation paint can fully heat dissipation and shockproof and antistatic;
5, imported laser diode direct light-emitting stability is particularly high open all day 24 hours.

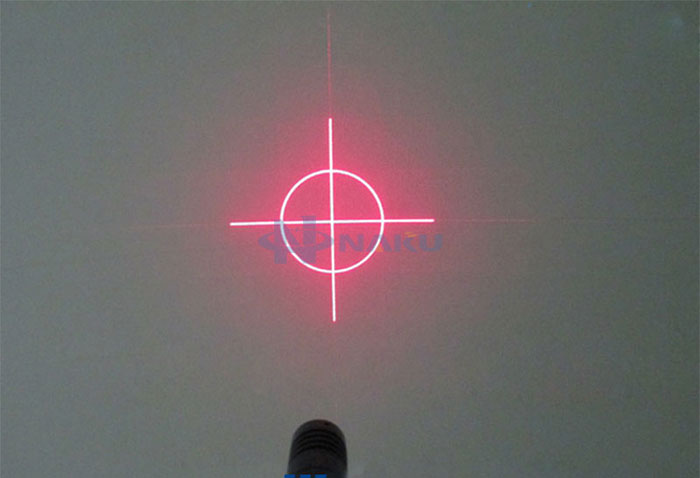

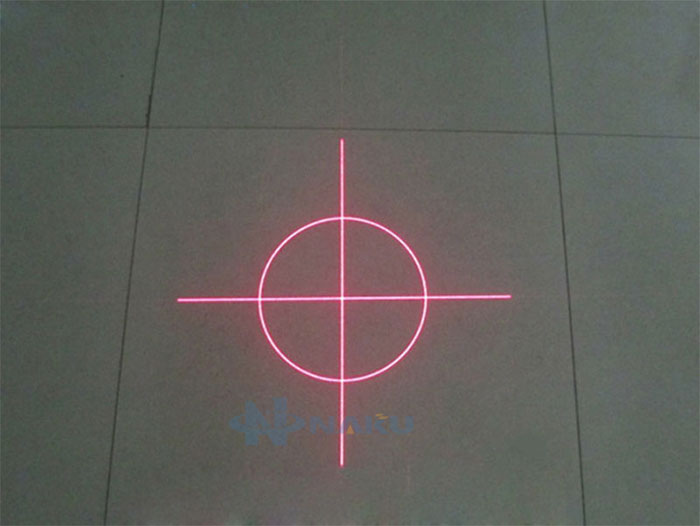

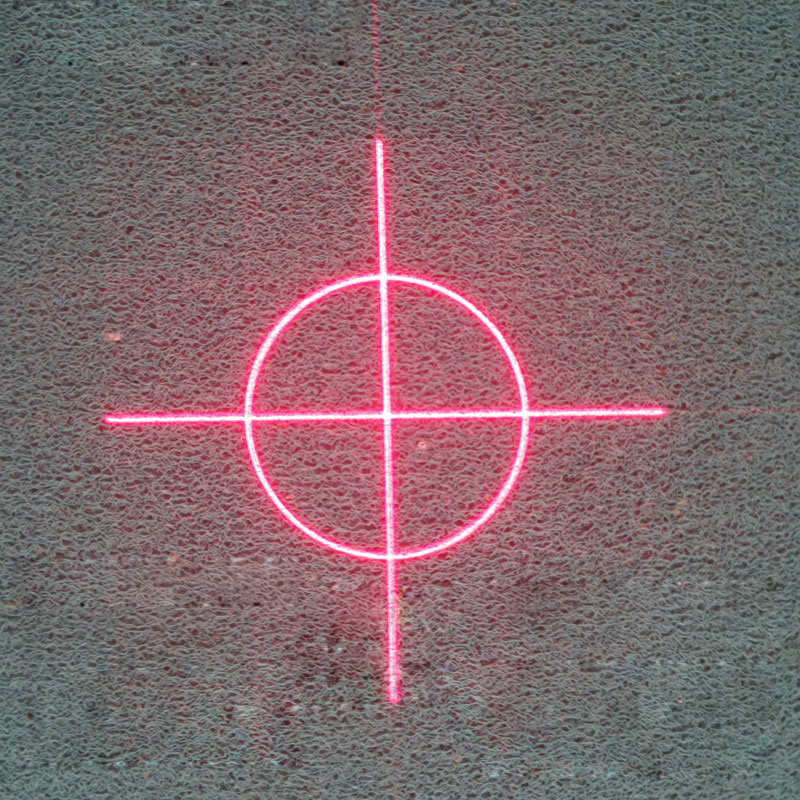

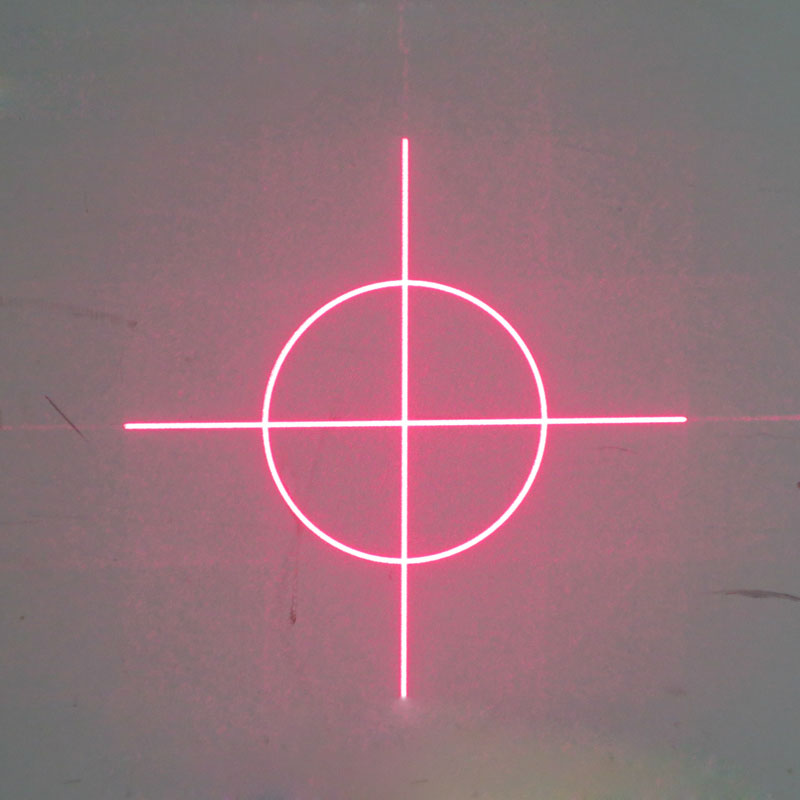

Circle angle: 10.5 degrees
Cross angle: 21 degrees

Installation height 0m~5m;
50cm distance: cross line length of 18.5cm, circle diameter of 9.15cm;
100cm distance: cross line length of 37cm, circle diameter of 18.3cm;
150cm distance: cross line length of 55.5cm, circle diameter of 27.45cm;

Specifications:
Output wavelength: 650nm/520nm/450nm (optional)
Core power: 100MW (optional)
Operating voltage: DC 2.8V to 5.2V (customizable)
Working current: < 500mA

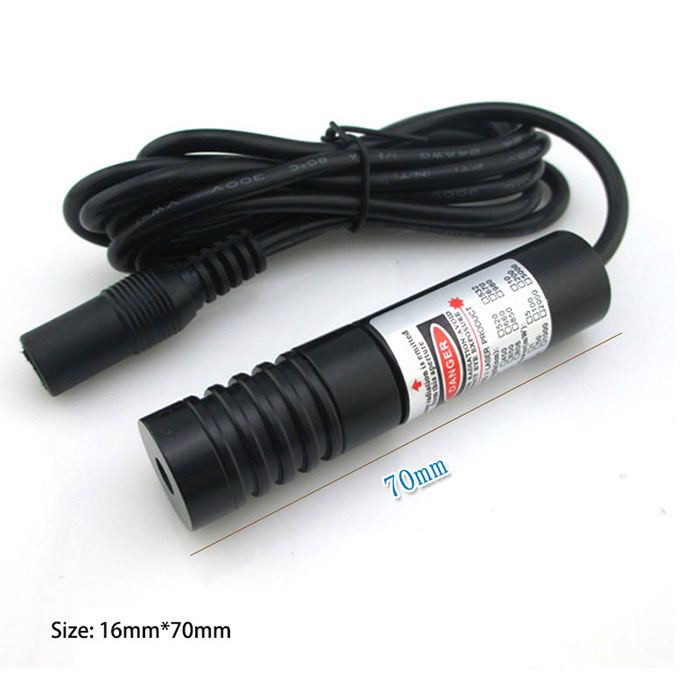

Dimensions: 16*70mm (customizable)
Optical lens: Grating film  (German imports)

circle laser module with crosshair Red Green Blue

circle laser module with crosshair Red Green Blue

circle laser module with crosshair Red Green Blue

circle laser module with crosshair Red Green Blue

circle laser module with crosshair Red Green Blue

circle laser module with crosshair Red Green Blue

circle laser module with crosshair Red Green Bluer

circle laser module with crosshair Red Green Bluer
