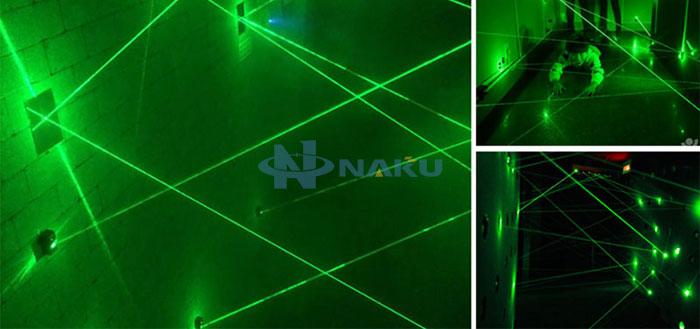

532nm 100mW Green Dot Laser module Room escape 12V

SPECIFICATIONS:
Name: 532nm 100mW Green Dot Laser module Room escape 12V
Output Wavelength: 532nm
Output Power: 100mW(Can continuously work)
Laser Shape: Dot
Laser type: Visible laser, Green laser
Outside Color: Black
Product material: Aviation aluminum

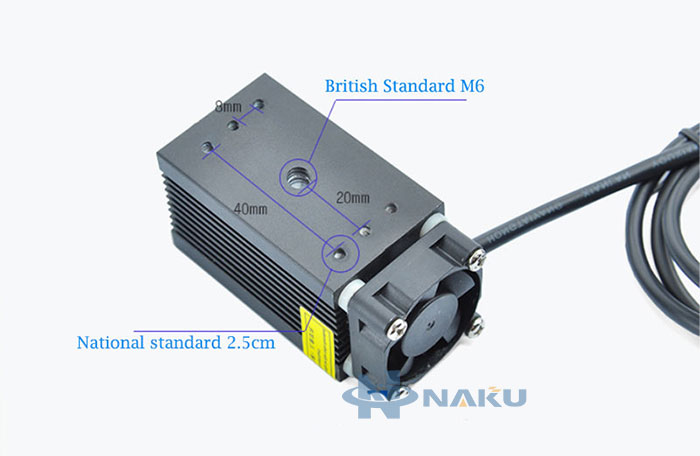

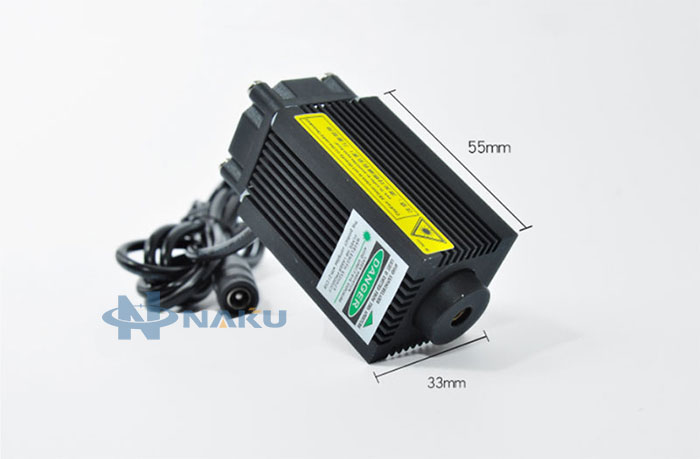

Size: φ33mm*55mm(Cannot adjust the focus)
Current: ≤260mA
Operating Voltage: 12V
Core components: Mitsubishi
Working medium: Semiconductor
Operating Temperature: -50°C~+50°C
Service life: >8000hours
Weight: laser 0.18kg/power adapter 0.13kg
Warranty: 12 Months Factory warranty

Advantage:
1, The use of imported laser diode, small volume, light and clear, fan angle is large, high linearity;
2, This is a fixed focus laser, non-adjustable laser module, glass lenses, light fine;
3, 5.5*2.1mm standard DC interface. The inner core is positive;

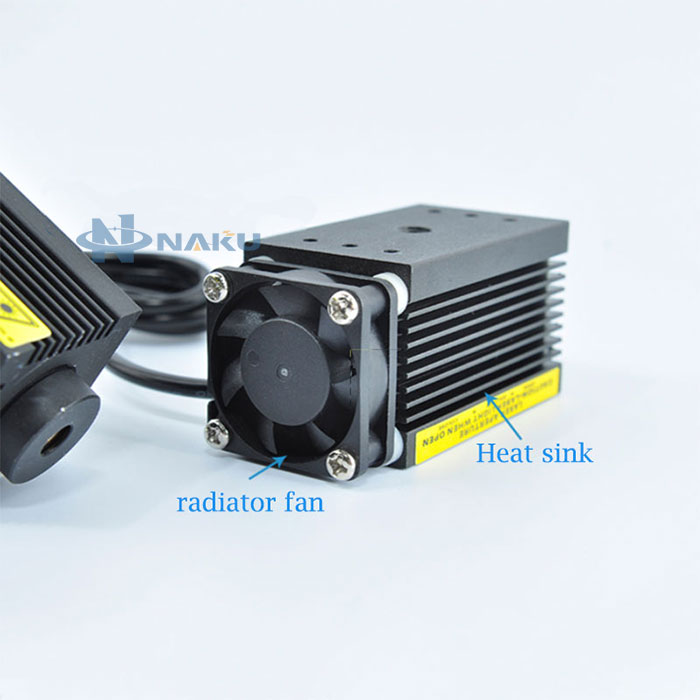

4, Strong heat dissipation, all metal package, can effectively guarantee the laser's stability and service life. Inside the product is pure copper device, quick cooling for diode;

Package list:

1* Green laser module;

2, 12V Power supply;

532nm 100mW Green Dot Laser module Room escape 12V

532nm 100mW Green Dot Laser module Room escape 12V

532nm 100mW Green Dot Laser module Room escape 12V

532nm 100mW Green Dot Laser module Room escape 12V

532nm 100mW Green Dot Laser module Room escape 12V

532nm 100mW Green Dot Laser module Room escape 12V

532nm 100mW Green Dot Laser module Room escape 12V
