24V 1mW 650nm 红色 点状 激光模组 定位激光 发射管

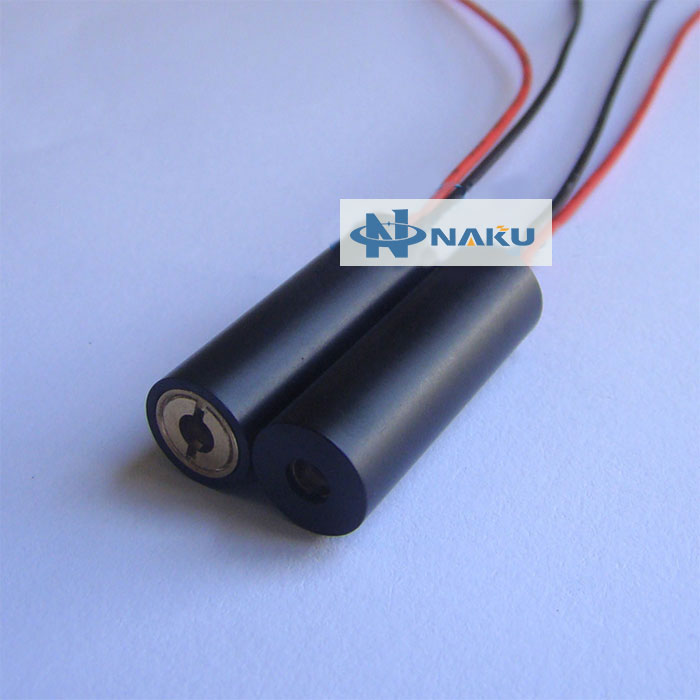

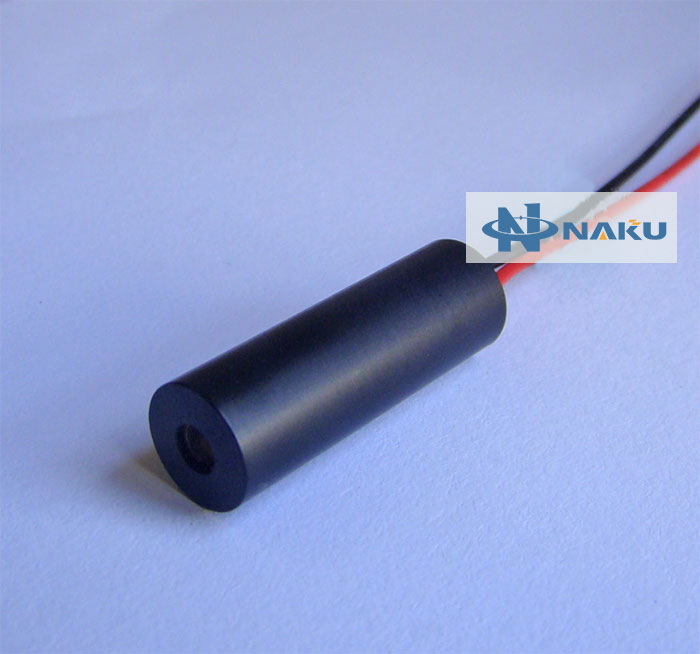

24V 1mW 650nm Red Dot laser module positioning laser transmitting tube industry

SPECIFICATIONS:
Name:  24V 1mW 650nm Red Dot laser module
Output Wavelength: 650nm ±5nm
Output Power: <1mw(can be customized)
Class level: Class IIIA
Laser Shape: Dot
Range: <100 meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: Red laser

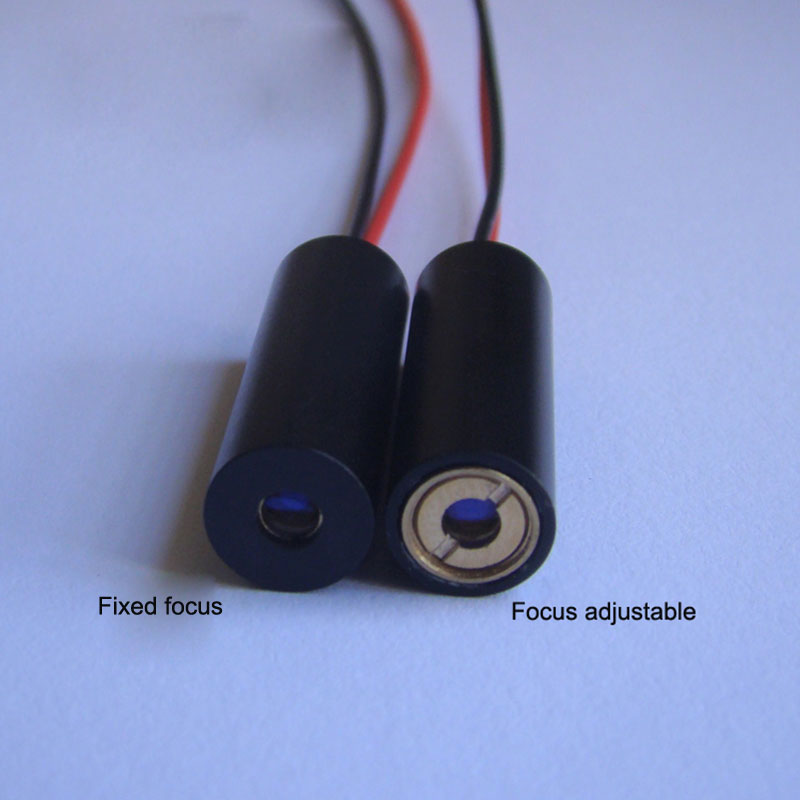

Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ12mm at 10m distance, focus adjustable
Circuit control: APC

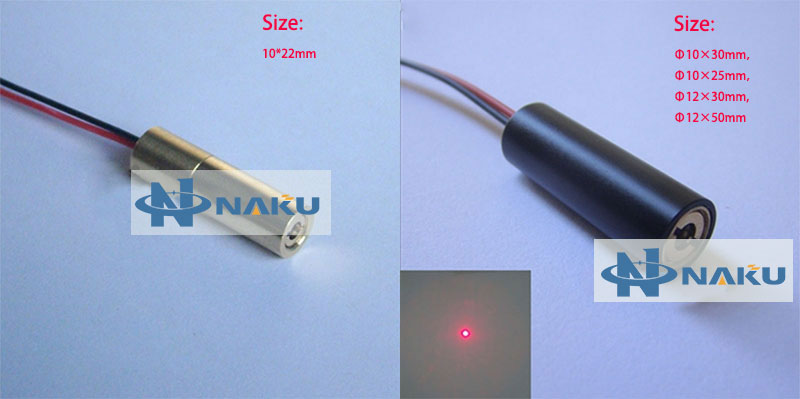

Size: Φ10x22mm, Φ9x21mm, Φ9x26mm, Φ10x30mm(default) , Φ12x50mm
Operating Voltage:  DC=24V
Operating current: I<25mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >5000 hours
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty
