589nm 3W~4.8W DPSS激光器/TEM00模式/功率稳定性高

589nm DPSS laser with TEM00 mode high power stability 3W~4.8W

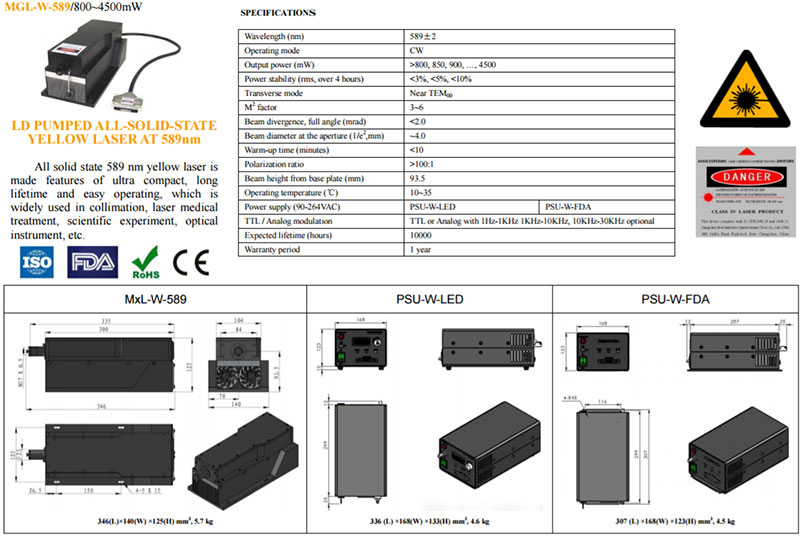

Specification:

Wavelength (nm): 589±2

Output power (mW): >3000,4800mw(Please contact us if you need 4.8W laser before you place the order)

Transverse mode: Near TEM00

Operating mode: CW

Power stability (rms, over 4 hours):<3%

Warm-up time (minutes): <10

M2 factor: 3.0~6.0

Beam divergence, full angle (mrad):<2. 0

Beam diameter at the aperture (mm): ~4. 0

Beam height from base plate (mm): 93.5

Polarization ratio: >100:1

Operating temperature (℃):10~35

Power supply (90-264VAC): PSU-W-LED

Modulation option: TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours):10000

Warranty period: 1 year

Note:

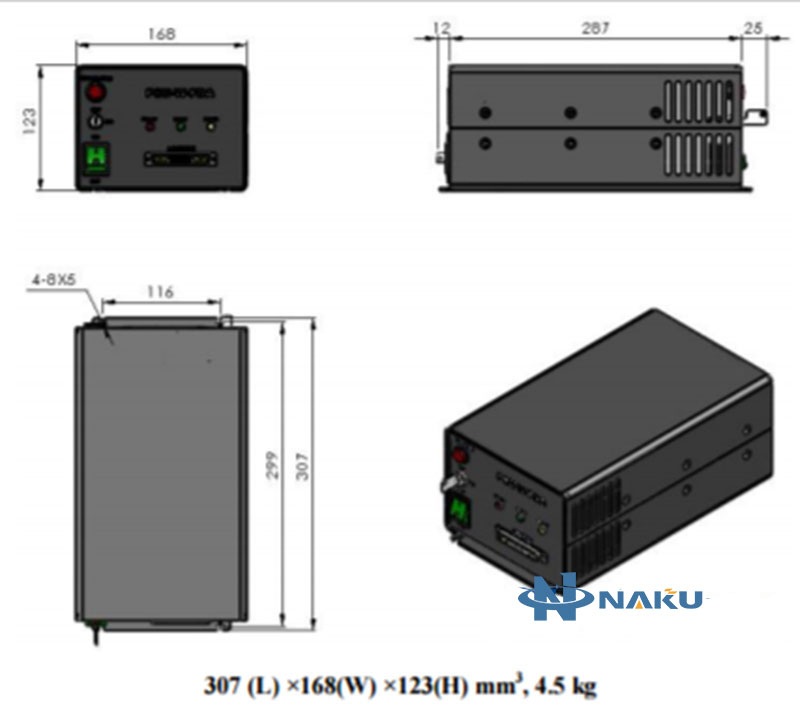

This size is for reference only. The size of the latest model may changed.
If there is any requirement for size, please contact us get latest size.

Features：

• Output Power up to 4.5 W
• TEC cooling system
• 3Lightweight, compact design
• Superior beam quality
• Flexible interface concept: analog, RS-232
• TTL or analog modulation
• Best reliability and lifetime

Applications：

1. Laser sheet for PIV
2. Collimation
3. Laser medical treatment
4. Scientific experiment
5. Optical instrument
6. Confocal Microscopy
7. Laser Display
8. Laser Lighting show
