355nm AOM 主动调Q紫外激光器 1~3000mW

355nm  Actively AOM Q-switched UV laser 1-3000mW

Specification：
Wavelength：355±1nm
Operating mode：Q-switched: AOM (Acousto-Optic Modulation)
Output power (W)：1.0，1.5，2.0，2.5，3.0 @20KHz
Single pulse energy (µJ)：1~150uJ@20KHz
Pulse width (ns)：15ns@20KHz, 30ns@40KHz
Rep. rate (kHz)：10~100, adjustable by external control
Ave power stability (over 4 hours)：<3%, <5%, <10%
Transverse mode：TEM00
M2 factor：<1.3
Roundness：>90%
Warm-up time (minutes)：<10
Beam divergence, full angle (mrad)：<1
Beam diameter at the aperture (mm)：<1.0
Beam height from base plate (mm)：113
Polarization ratio and Direction：>100:1, Horizontal
Cooled method：Air cooled
Operating temperature (℃)：20~35

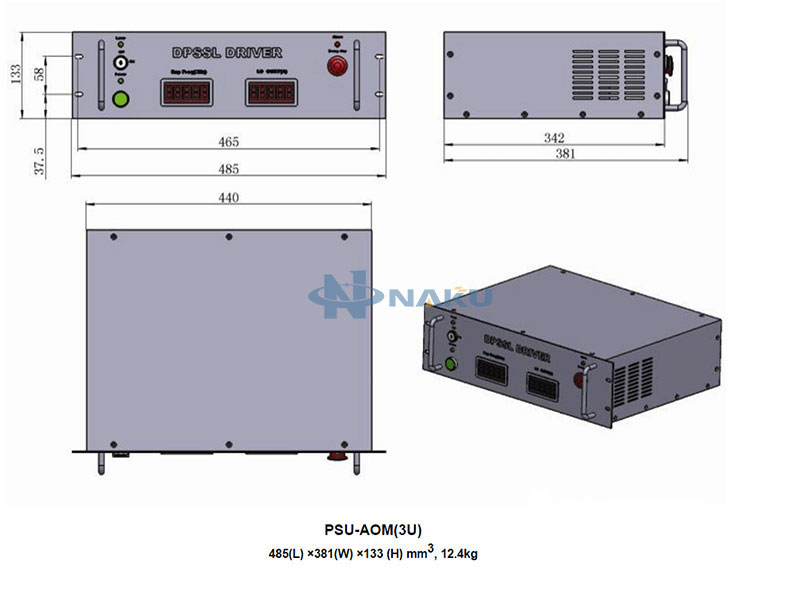

Power supply (220/110VAC)：PSU-AOM(3U)
Expected lifetime (hours)：5000
Warranty period：1 year

Features：

• Single pulse energy up to 150 uJ
• With 355 nm laser emitting only
• TEC cooling system
• Lightweight, compact design
• Controllable or Uncontrollable choosed
• Best reliability and lifetime

Applications:

1. UV curing
2. Micro-electronics
3. CD carving
4. Laser medical treatment
5. Scientific experiment
