445nm 450nm 1mW~80mW 蓝色激光模组 点状 定位模组激光器

价格:$1.00

(最新的价格,请联系我们.)

请选择:







购买数量:


445nm 450nm 1mW~80mW 蓝色激光模组 点状 定位模组激光器

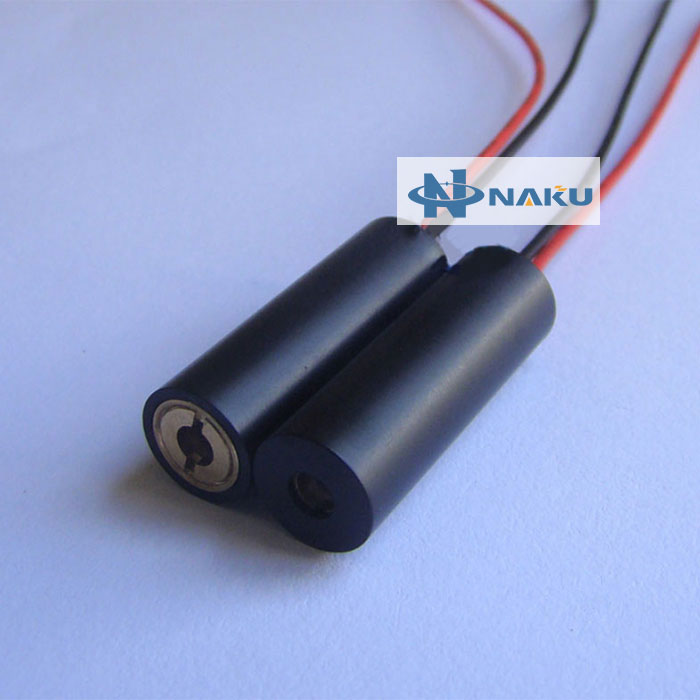

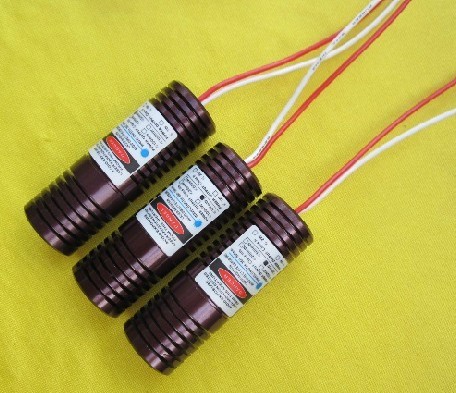

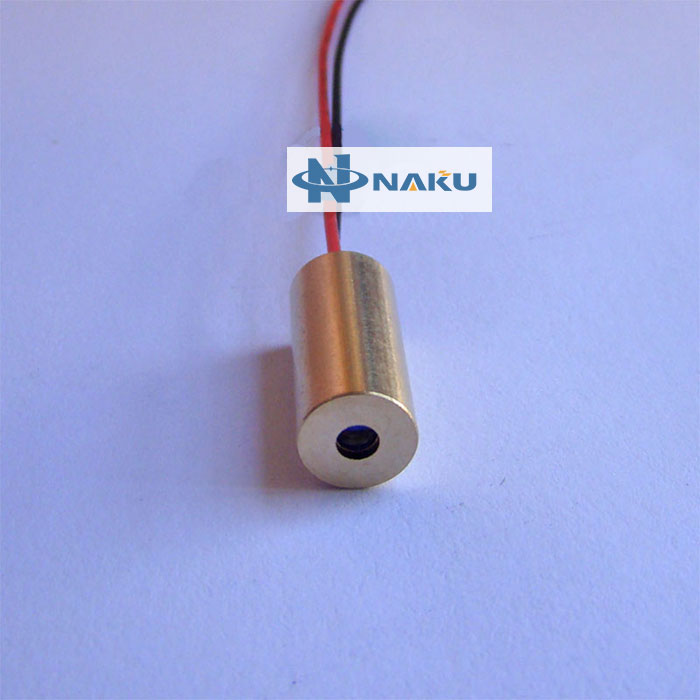

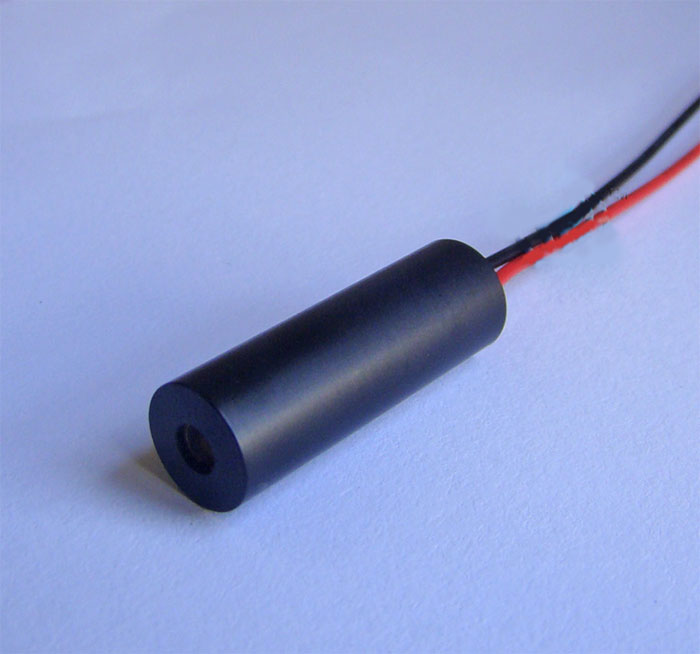

445nm 450nm 1mw~80mW Blue laser module Dot positioning module laser

SPECIFICATIONS:
Name:  445nm 450nm 1mw~80mW Blue laser module Dot
Output Wavelength: 450nm ±5nm
Output Power: 1mw/5mw/10mw/30mw/50mw/80mw(can be choose)
Class level: Class III
Laser Shape: Dot
Range: 500~1000meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: Blue laser
Shape/dimension: Minimum dot size≤ Φ1.0mm, <Φ10mm at 10m distance, focus adjustable
Circuit control: APC
Size: Φ10x22mm, Φ9x21mm, Φ9x26mm, Φ10x30mm(default) , Φ12x50mm
Operating Voltage:  DC=5.5-7.0V
Operating current: I<100mA
Operating Temperature: 0°C~+60°C
Storage Temperature: -40°C~+80°C
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty





450nm 1mw~80mW Blue laser module Dot

450nm 1mw~80mW Blue laser module Dot

450nm 1mw~80mW Blue laser module Dot

450nm 1mw~80mW Blue laser module Dot
