940nm 100mW 300mW 点/线/十字 激光模组 不可见光

价格:$1.00

(最新的价格,请联系我们.)

请选择:





购买数量:


940nm 100mW 300mW 点/线/十字 激光模组 不可见光

940nm 100mw 300mw Dot/Line/Crosshair laser module head Invisible light

SPECIFICATIONS:
Name: 940nm 100mw 300mw Dot/Line/Crosshair laser module
Output Wavelength: 940nm
Output Power(choose 100mw): 100mw(Use 100mw LD, the laser module's ouput power is >50mw)
Output Power(choose 300mw): 300mw(Use 300mw LD, the laser module output power is >100mw.)
Laser Shape: Dot/Line/Crosshair
Laser type: Invisible laser, IR laser
Outside Color: Black

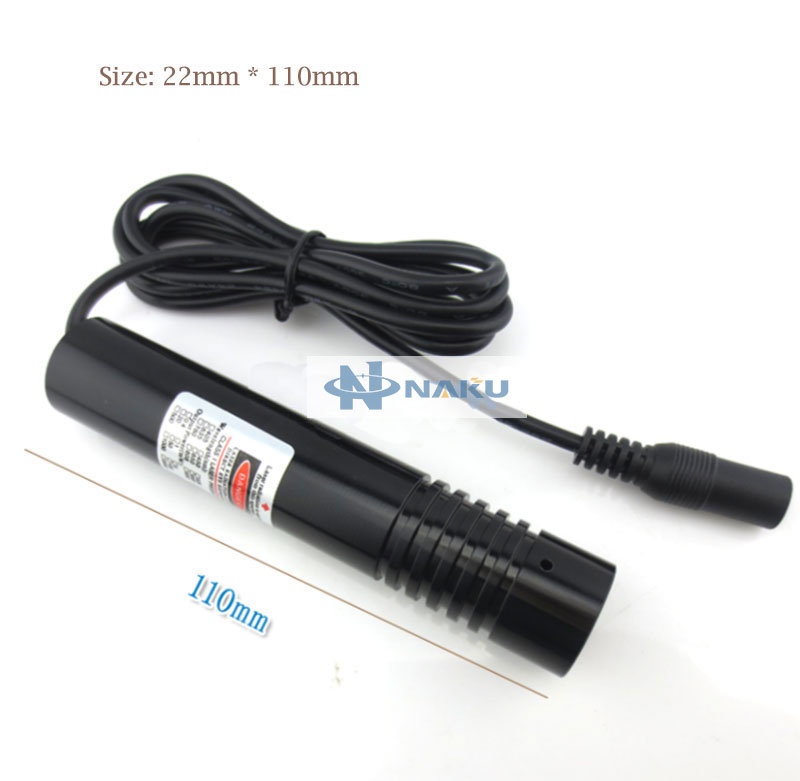

Size: 22*110mm(Can be customized)
Current: ≤400mA
Operating Voltage:  DC2.8-3.2V
Operating Temperature: -10℃~50℃
Storage Temperature: -40℃~80℃
Line Length: 1.2m (can be customized)
Warranty: 12 Months Factory warranty
Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway


Package includes:
1* IR laser module;
1* Laser mount;
1* Adjustable Power supply;

This is the upgraded version of laser spot, the advantages of this laser module as below:
1, The large size, beneficial to the heat dissipation, increase life expectancy;
2, The drive circuit controlled by intelligent IC, the stability is better;
3, Oxidation blackening shell, permanent anti-static;
4, Added the window film at the light outlet, can prevent the dust;
5, Use the latest high technical laser diode, can withstand temperatures up to 60 degrees;
6,Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.

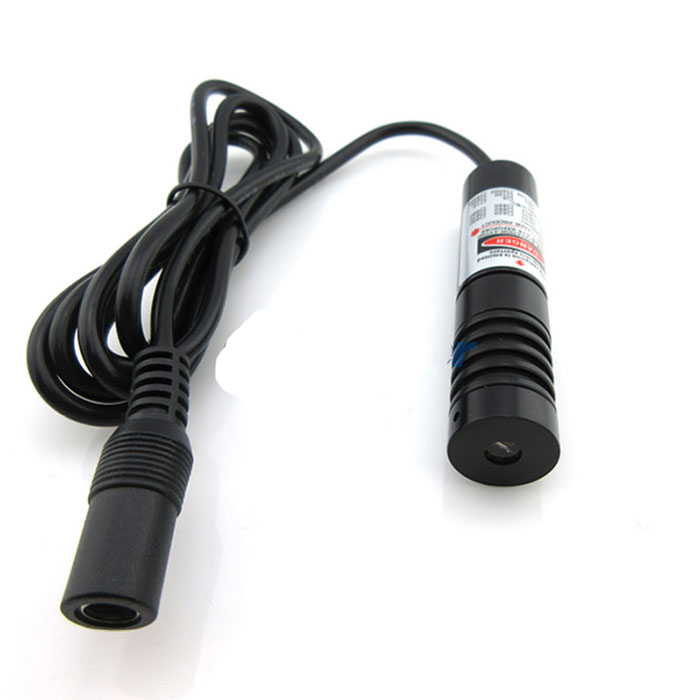

940nm 300mw Dot/Line/Crosshair laser module head Invisible light

940nm 300mw Dot/Line/Crosshair laser module head Invisible light

940nm 300mw Dot/Line/Crosshair laser module head Invisible light

940nm 300mw Dot/Line/Crosshair laser module head Invisible light

940nm 300mw Dot/Line/Crosshair laser module head Invisible light

940nm 300mw Dot/Line/Crosshair laser module head Invisible light
