638nm 700mW 点状/一字线/十字线 高功率 红光 激光模组

价格:$1.00

(最新的价格,请联系我们.)

请选择:



购买数量:


638nm 700mW 点状/一字线/十字线 高功率 红光 激光模组

638nm 700mw Dot/Line/Crosshair High power Red laser module

SPECIFICATIONS:
Name: 638nm 700mw Dot/Line/Crosshair High power Red laser module
Output Wavelength: 638nm
Output Power: ≤700mw
Laser Shape: Dot/Line/Crosshair
Laser type: Red laser
Outside Color: Black
Size: 22*110mm,16*70mm(Can be customized)
Current: ≤1000mA
Operating Voltage: DC 3.5-25V
Operating Temperature: -10℃~50℃
Storage Temperature: -40℃~80℃
Line Length: 1.2m (can be customized)
Warranty: 12 Months Factory warranty

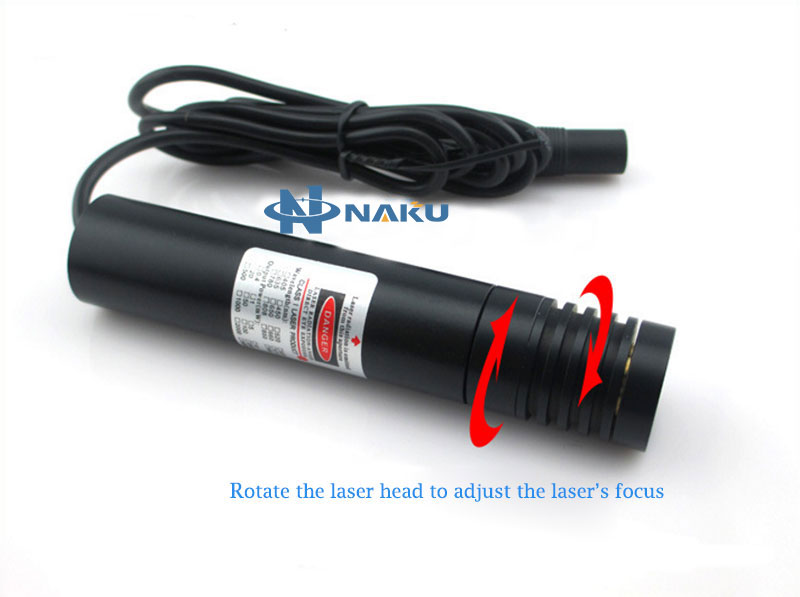

Structure Features: high quality laser diode + metal shell + High quality lens + constant power circuit board + Wireway


Package includes:
1* Red laser module;
1* Laser mount;
1* Adjustable Power supply;

The advantages of this laser module as below:

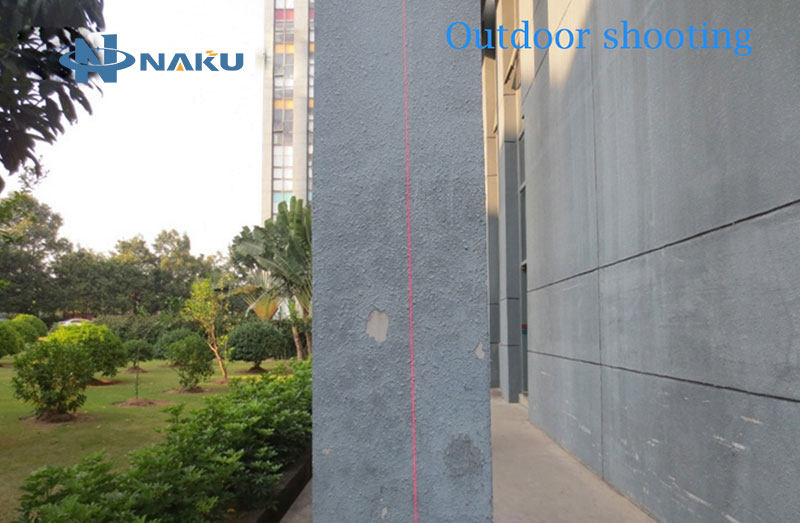

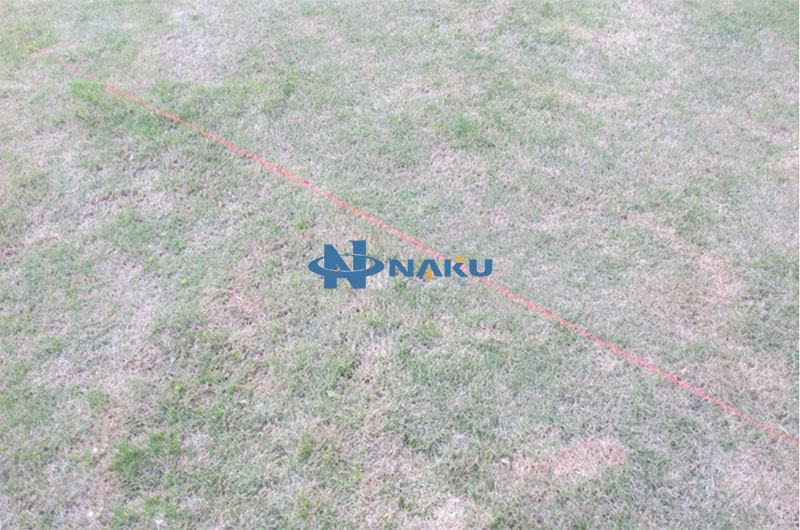

1,  635nm 700mw ultra high power red laser module, ultra high brightness indoor and outdoor use and suitable for any harsh environment;

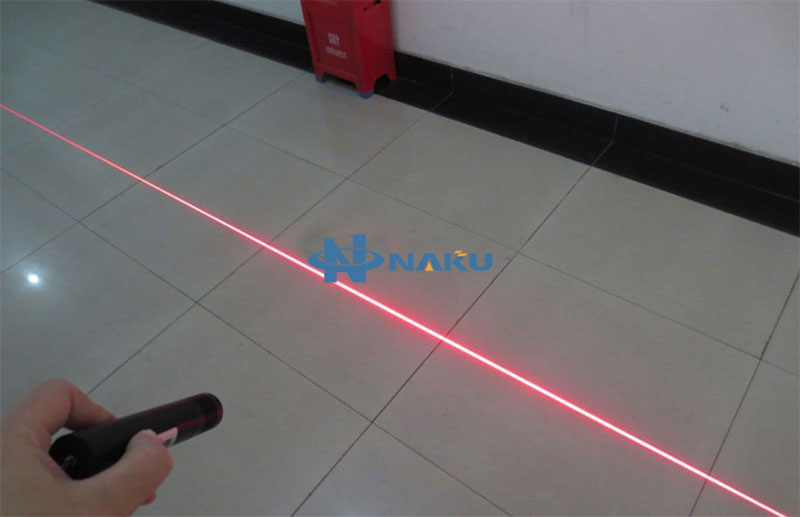

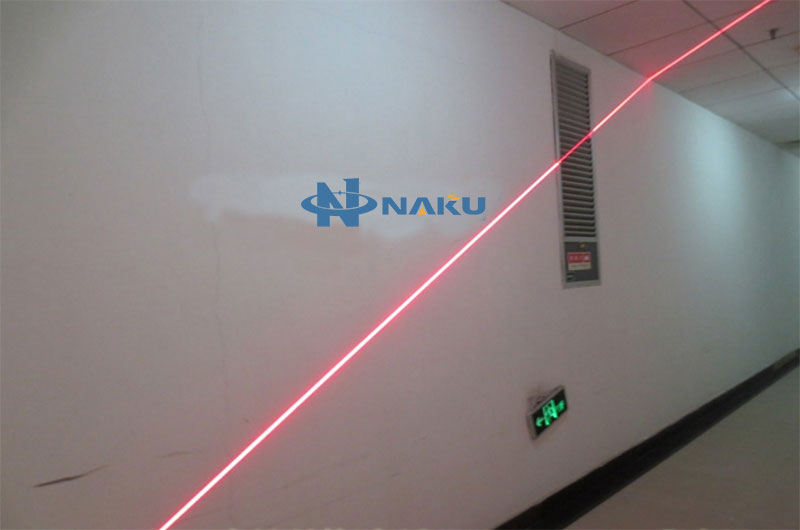

2, The line width is adjustable from 1mm to several centimeters;
3, Lens angle from 5 degrees to 120 degrees optional;
4, 638nm wavelength laser is pure red, the light is clear and bright and soft without glare;
5, High quality Taiwan lens, can continously work for more than 24 hours;
6, Use thermal conductivity of silica gel and AD glue filled the inside, to ensure the full heat, vibration and falling;
7,Tail power line using high temperature line, good toughness and corrosion resistance.
