635nm 10mW 红色激光模组 点状 迷你尺寸6mm

价格:$1.00

(最新的价格,请联系我们.)

请选择:



购买数量:
最少:  3

635nm 10mw 红色激光模组 点状 迷你尺寸6mm

635nm 10mw Red laser module Dot Mini size 6mm



SPECIFICATIONS:
Name:  635nm 10mw Red laser module Dot
Output Wavelength: 635nm ±5nm
Output Power:  <10mw
Class level: Class IIIB
Laser Shape: Dot
Range: <500 meters
Material: Copper or aluminum optional
Surface treatment / color: Brass color, black (black oxide)
Laser type: Red laser
Shape/dimension: Minimum dot size≤ Φ1.0mm, < Φ12mm at 10m distance, focus adjustable
Circuit control: APC
Size: Φ6×10mmΦ6×12mm
Operating Voltage:  DC=2.8~5.3V
Operating current: I<80mA
Operating Temperature: -10°C~+50°C
Storage Temperature: -40°C~+80°C
Service life: continuous output, continuous service life of >6000 hours
Tail wire: 26# Red and black line, about 150mm long, power supply can be choose
Warranty: 12 Months Factory warranty

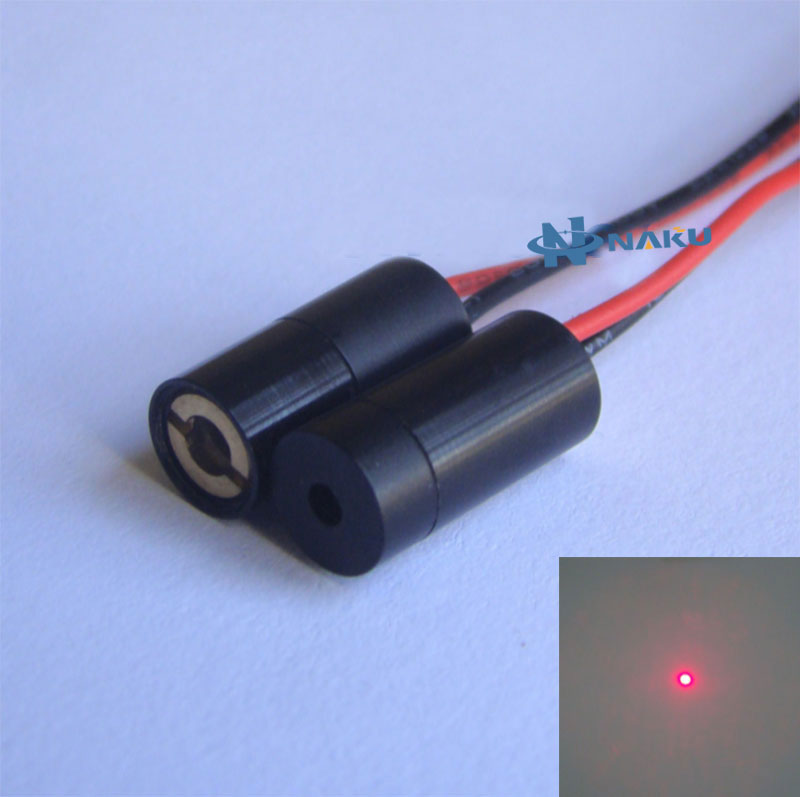

635nm 10mw red laser module Dot

635nm 10mw red laser module Dot
